Non-dimmable LED Driver

12v 36w constant voltage 0-10v dimming power supply

constant voltage 0-10v dimming power supply;36w 0-10v dimming power supply
  • item no.:

    SMT-012-036VD
  • lead time:

    15 working days for 500pcs
  • product orgin:

    FuJian, china
  • brand:

    SMARTS
  • shipping port:

    XIAMEN
  • payment:

    T/T, Paypal, western union, trade assurrance
  • Input Voltage:

    100-130VAC, 170-265VAC
  • Output Voltage:

    36W
  • Output Current:

    3A
  • Working Mode:

    Constant Voltage
  • Certification:

    CE ROHS
  • Warranty:

    3 years
inquiry now
product details

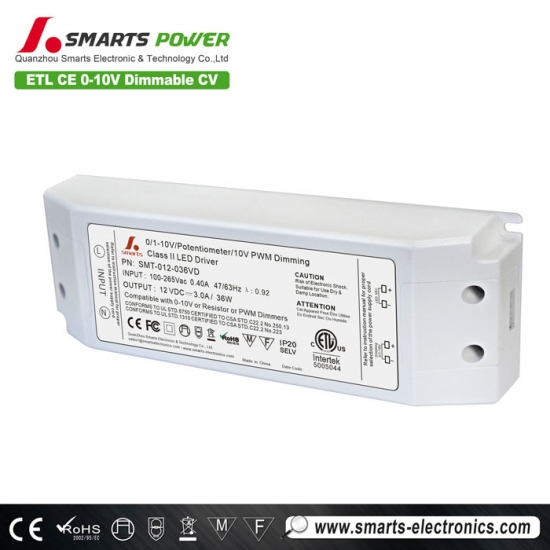

12v 36w constant voltage 0-10v dimming power supply




 Product parameters


Model

SMT-012-036VD

SMT-024-036VD

Output

DC Voltage

12VDC

24VDC

voltage Accuracy

±3%

Current

3.0Amp

1.5Amp

Rated power

36W

36W

Input

Voltage Range

100-130VAC, 170-265VAC

Frequency Range

4763HZ

PF(Typ.

PF>0.90

Full Load

EfficiencyTyp

>88%

>89%

AC Current (Typ.

0.41A@110VAC

0.21A@220VAC

Leakage current

0.62mA/110VAC, 0.65mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault

condition is removed

Over voltage

≦280VAC

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environme

Working TEMP.

-40+50℃

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along

X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13.   Waterproof rate: IP40

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

 0.4Kg

Size

180*60*34mmL*W*H

packing

355*215*215mm/20pcs /CTN

Notes

1.  All parameters NOT specially mentioned are measured at 110v~220VAC input ,

   rated load and 25℃of ambient temperature.

2.  Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

  Label

24v 36w constant voltage 0-10v dimming power supply

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top





 Features


  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage
  • Protections:Short circuit/Overload/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test.
  • Suitable for LED lighting
  • Brand electrotronic components.
  • ROHS material.


 Environment


  • Working temp: -30~+50℃ (Refer to output load derating curve)
  • Working humidity: 20~99% RH non-condensing(Waterproof)
  • Storage temp. humidity:  -40~+80℃,10~99%RH


 Safety


  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC


 Application


  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

led driver 36w
