Specifications
Model
SMT-012-180VD
SMT-024-180VD
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
Rated current
0～15A
0～7.5A
Rated power
180W
180W
Input
Voltage Range
100-130VAC, 170-265VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.90/120V / PF≧0.90/220V
Full Load Efficiency（Typ.）
>88%(120V) / >88%(220V)
>88%(120V) / >88%(220V)
AC Current（Typ.）
2.066A@110VAC
1.033A@220V
Leakage current
﹤0.89mA/120VAC / ﹤0.73mA/220VAC
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage
≦280VAC
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environment
Working TEMP.
-40～+50℃
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 IP66
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
Others
Weight
1.8Kg
Size
255*80*53mm（L*W*H）
packing
440*295*145mm/8pcs/CTN 265*98*55 mm for inner box
Notes
1. All parameters NOT specially mentioned are measured at 110~ 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
Product Description
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Packaging & Shipping

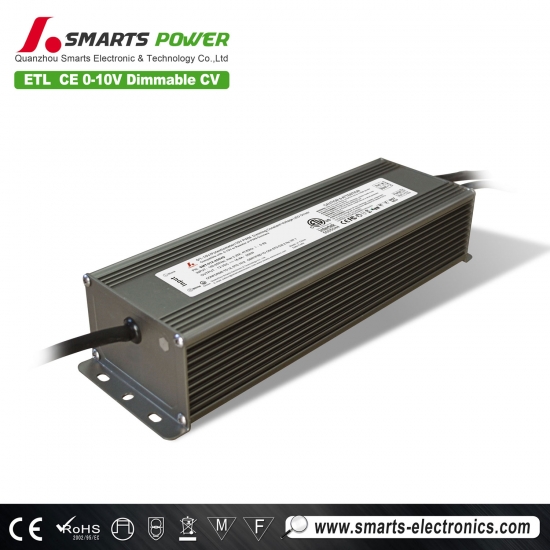

| 0-10v dimmable LED downlight driver 12v 180w waterproof power supply | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 1800 g | 15 kg | 10 pcs | 414*308*174mm |
