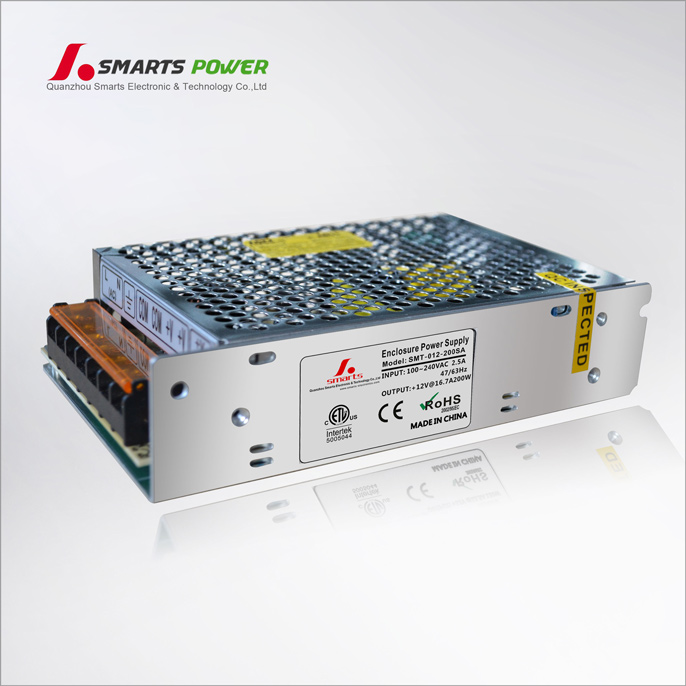

China wholesaler 200w 12v switching mode uninterrupted power supply
China wholesaler 200w 12v switching mode uninterrupted power supply is switch by selected , has universal input voltage 100-240vac , the Safety Standards is GB195110.1-2004/IEC61347-1:2003 , EMC Standard is EN55015,EN61000,EN61547
Product Input Specifications of uninterrupted power supply
| Input Voltage | Input Frequency | Input Current | Power Factor |
110V Inrush Current |
230V Inrush Current |
Total Syntonic Wave |
| 100~265Vac | 40-60Hz | 1.48±0.002A | 0.73-0.85 | 25A | 45A | 20%Mac |
Product Output Specifications of switching mode power supply
| Output Voltage | Max. Output Power | Output Current | Efficiency | No-load power | Output Ripple | Load Regulation |
| 12.0±0.5Vdc | 200W | 16.66.02A±5% | >83%/110V, 220V |
|
≦240MV | ≦±10% |
Protection Function of 200w power supply
overcurrent,overvoltage,overheat,short curcuit protection:Auto-recovery
Environmental Specifications of switching mode power supply
| Operation Temp. | Store Temp. | Raise Temp. | Operation Humidity | Using Field | ||
| -25~55℃ | -40~80℃ | ≤25℃ | 5-95%RH |
Forbidding Strong Magnetic Field |
||
Reference Srandards of switching mode power supply
Safety Standards：GB195110.1-2004/IEC61347-1:2003 ETL, CE(EMC+LVD) approval
EMC Standard：EN55015,EN61000,EN61547

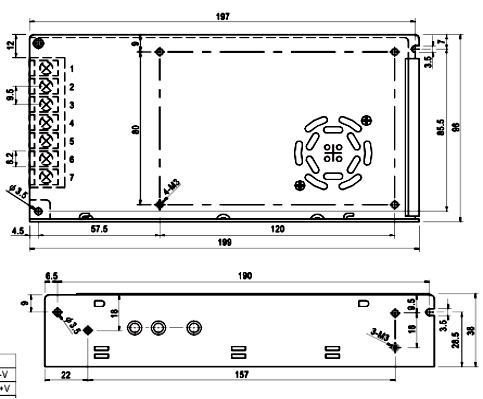

Size of switching mode power supply :
