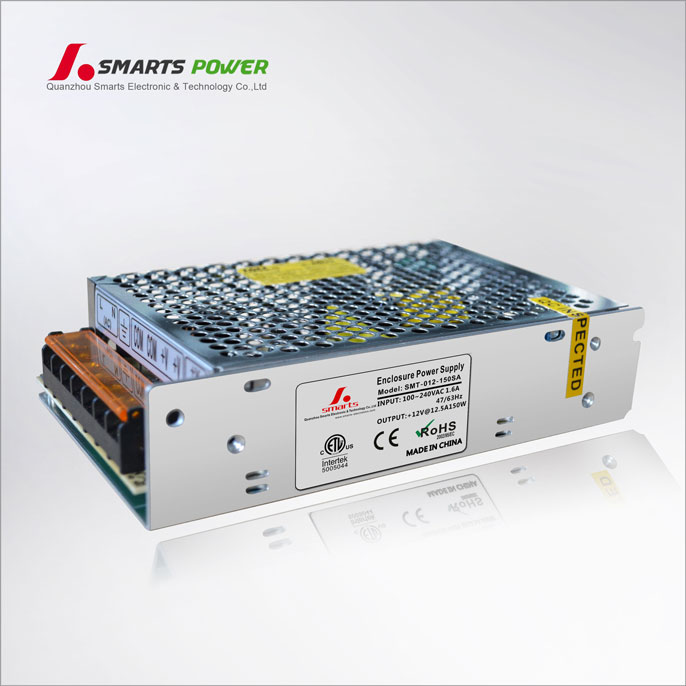

ac dc 12volt 150watt led transformer smps
ac dc 12volt 150watt led transformer smps is ip20, aluminum case, ac to dc energy transfer, constant voltage working mode, 2 years warranty led transformer
Specifications of smps
- Product size:199*110*50mm
- Case material:aluminum
- Net weight/pc: 720g
- Input voltage: 100-240v
- output voltage: 12v
- Frequency: 47-63Hz
- Output power: 150W
- output current: 12.5A
Features od led transformer
- Competitived price and high reliability
- 105 °C Output capacitor
- AC input power suitable for the world
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact effect
- With short-circuit and overload protection
- Compact size, light weight
- 100% full-load burn-in test
- Installed with EMI filter, minimum wave
- 2 years warranty
parameters of ac dc smps
| Item No. |
Input Voltage (vAC) |
Working Frequency (Hz) |
Output Voltage (vDC) |
Output Current (S) |
Power (Watt) |
Protection grade |
| SMT-005-150SA | 100-240vAC | 47~63Hz | 5V | 0-30A | 150W | ip20 |
| SMT-012-150SA | 100-240vAC | 47~63Hz | 12V | 0-12.5A | 150W | ip20 |
| SMT-024-150SA | 100-240vAC | 47~63Hz | 24V | 0-6.25A | 150W | ip20 |
| SMT-036-150SA | 100-240vAC | 47~63Hz | 36v | 0-4.17A | 150W | ip20 |
| SMT-048-150SA | 100-240vAC | 47~63Hz | 48V | 0-3.13A | 150W | ip20 |
Application:
Our products are widely used in various industries, such as:
- Indoor LED illuminating lights,
- LED Neon,
- LED City Decoration,
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights,
- Controller Panels, etc.
