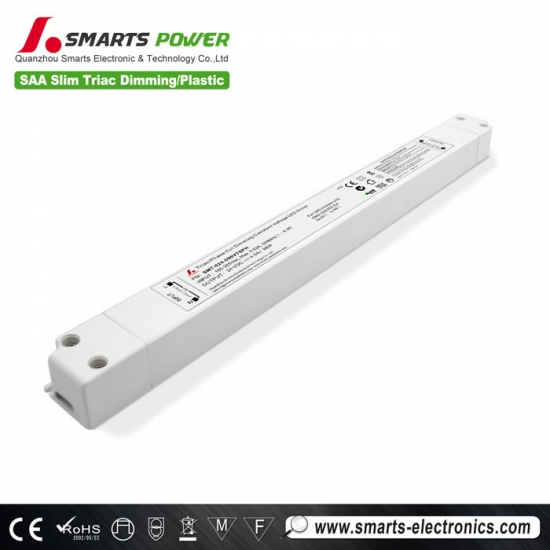

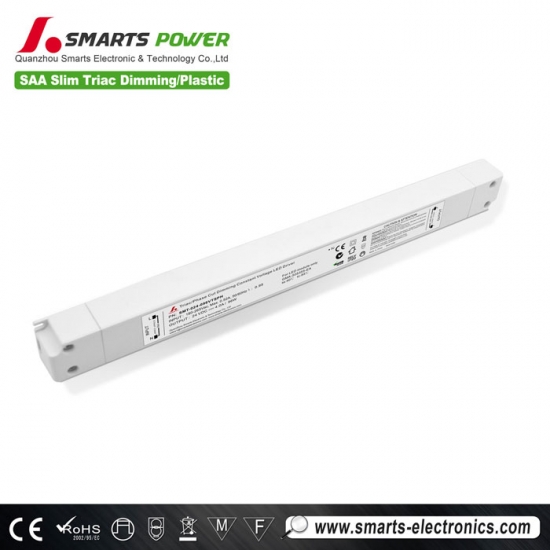

This 24v 96w triac dimming led driver of LED panels/strips/ light bar.It passed high,low temperature. as well as 100% full load burn-in test.. This 100w LED power supply is 200-240vAC slim shape type triac dimmable led driver
Features for dimmable led transformer
·Output constant voltage
·Input voltage range 100-277VAC
·CE, ROHS approval
·Built-in PFC function / E fficiency > 80% / PF> 0.99
·Dimming range: 0~100% / load: 9~100%
·Protections:short circuit/over voltage/over heat
·IP20 design for indoor dry or damp environment installations
·Cooling by free air convection
·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specifications for LED transformer
|
model |
SMT-012-100VTSPH |
SMT-024-096VTSPH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4.17Amp |
|
|
Rated power |
100W |
100W (class 2) |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.98/277V |
||
|
Full Load Efficiency（Typ.） |
>83% |
>84% |
|
|
AC Current（Typ.） |
1.10A/100VAC / 0.43A/277VAC |
||
|
Inrush Current（Typ.） |
9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC |
||
|
Leakage current |
<0.50mA/110VAC; ﹤0.13mA/277VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P: 2KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.5Kg |
|
|
Size |
330*32*23mm (L*W*H) |
||
|
packing |
30PCS/CTN
|
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
 |
||
 |
 |
 |
 |
 |
|
Mechanical Specification for waterproof LED transformer:
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output: Red is（DIM+）,Black is（DIM-
Simple Connection Diagram for Triac Dimmable LED Driver
Applications for dimmable led transformer 12v:
LED Mirror projects
Strip/Tape Lighting
Tube Lighting
Panels
Fixtures
Cove Lighting
Bar Lighting
Kick Lighting
Under Cabinet Lightin
