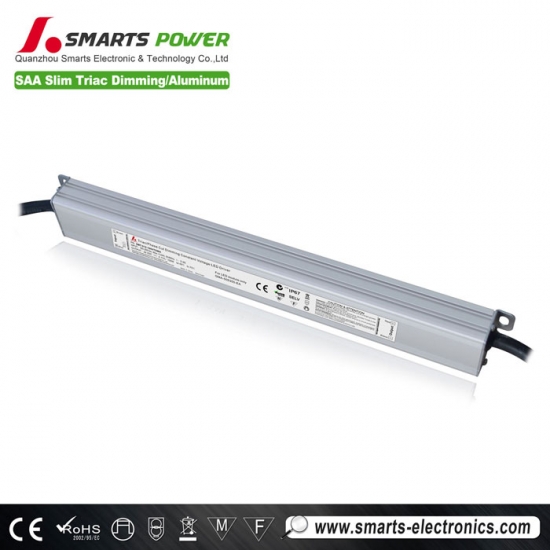

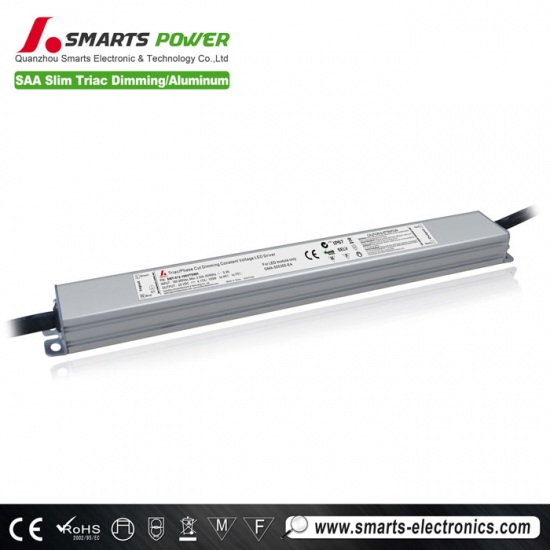

Smarts Electronics' SMT-012-100VTSWH led power supply 100w is the perfect choice for use in Schools, Hospitals, and Shopping Malls or for any commercial application This unit can be operated with input current ranging from 200 to 240 VAC and will output 100watt 12Volt DC current at 4amps. This led strip light power supply features an IP67 rated design, making it suitable for indoor and outdoor use and includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage.
Features
·Output constant voltage
·Input voltage range 200-240VAC
·CE approval
·Built-in PFC function / Efficiency > 83% / PF> 0.98
·Dimming range: 0~100% / load:10~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry or damp environment installations
·Cooling by free air convection
·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
|
model |
SMT-012-100VTSWH |
SMT-024-096VTSWH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4Amp |
|
|
Rated power |
100W |
96W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
200-240 VAC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF≥0.99/200V ; PF≥0.98/240V |
||
|
Full Load Efficiency(Typ.) |
>83% |
>84% |
|
|
AC Current(Typ.) |
1.10A/200VAC / 0.43A/240VAC |
||
|
Inrush Current(Typ.) |
9.2A, 50%, 1ms@200VAC / 26.4A, 50%, 780us@240VAC |
||
|
Leakage current |
<0.50mA/200VAC; <0.13mA/240VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P: 2KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.55Kg |
|
|
Size |
330*32*23mm (L*W*H) |
||
|
packing |
50PCS/CTN
|
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
|
Label |
 |
||
 |
 |
 |
 |
 |
|
Mechanical Specification
Dimming Operation
Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
