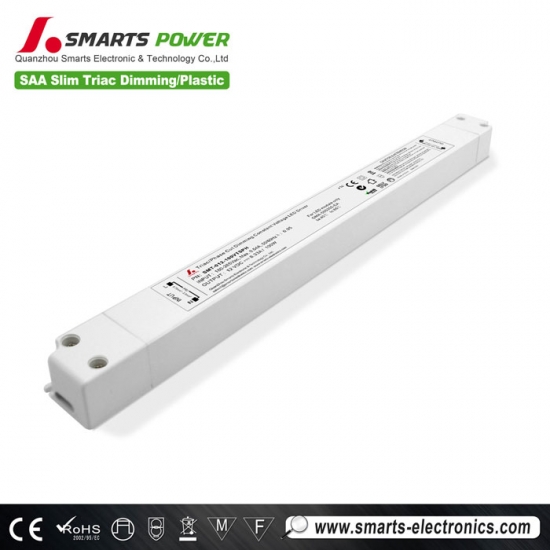

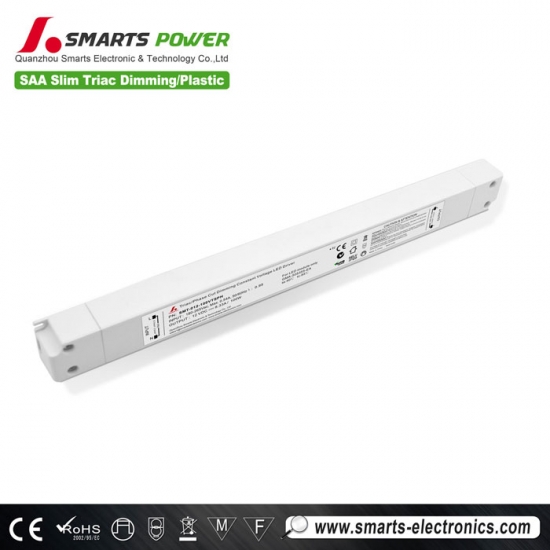

120v 277v Dimmable Triac Dimming CE 12v Led Driver Power Supply
The Slim Line series triac dimming led driver 100w is CE listed for 7 year manufacturer limited warranty. These slim led drivers are a compact solution for powering LED’s. Typically smaller, lighter and less expensive than magnetic drivers, an electronic LED driver may be preferred for installations where space is at a premium.
Features for CE led driver 12v
·Output constant voltage type
·Input voltage range 200-240VAC
·CE approval
·Built-in PFC function / Efficiency > 80% / PF> 0.99
·Dimming range: 0~100% / load: 9~100%
·Protections:short circuit/over voltage/over heat
·IP20 design for indoor dry or damp environment installations
·Cooling by free air convection
·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·PWM output, does not change the color index
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification:
Specification for 120v 277v led driver dimmable
|
model |
SMT-012-100VTSPH |
SMT-024-096VTSPH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4Amp |
|
|
Rated power |
100W |
96W (class 2) |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
200-240VAC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF>0.99/200V ; PF>0.98/240V |
||
|
Full Load Efficiency(Typ.) |
>83% |
>84% |
|
|
AC Current(Typ.) |
1.10A/200VAC / 0.43A/240VAC |
||
|
Inrush Current(Typ.) |
9.2A, 50%, 1ms@200VAC / 26.4A, 50%, 780us@240VAC |
||
|
Leakage current |
<0.50mA/200VAC; <0.13mA/240VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P: 2KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, Alight industry level |
||
|
Others |
Weight |
0.55Kg |
|
|
Size |
330*32*23mm (L*W*H) |
||
|
packing |
50PCS/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 200VAC, 240VAC input ,Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
 |
||
 |
 |
 |
 |
Mechanical Specification for CE triac led driver:
* Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
*Output: Red is(Possitive +),Black is(Negative -)
Dimming Operation for led driver power supply
* Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
* Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
* Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve for 277v led driver dimmable
l Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
Connecting Diagram for triac dimming led driver
