Specification
|
Model |
SMT-012-030VM |
SMT-024-030VM |
SMT-036-030VM |
SMT-048-030VM |
||||
|
output |
DC Voltage |
12V |
24V |
36V |
48V |
|||
|
Voltage Tolerance |
±0.5V |
|||||||
|
Rated current |
0～2.5A |
0～1.25A |
0～0.833A |
0～0.625A |
||||
|
Rated power |
30W |
|||||||
|
input |
Voltage Range |
100~130VAC, 170~265VAC |
||||||
|
Frequency Range |
47～63HZ |
|||||||
|
Power Factor （Typ.） |
PF≧0.90/110V / PF≧0.90/220V |
|||||||
|
Efficiency（Typ.） |
>88% |
>88% |
>88% |
>88% |
||||
|
AC Current（Typ.） |
0.34A@110VAC
|
0.17A@220VAC 0.15A |
||||||
|
Leakage current |
﹤0.40mA/110VAC / ﹤0.50mA/220VAC |
|||||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over Loading |
≦120% |
|||||||
|
Environment |
Working TEMP. |
-40～+60℃ |
||||||
|
Working Humidity |
20～90%RH, non-condensing |
|||||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||||||
|
Vibration |
10～500Hz，2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|||||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
||||||
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|||||||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|||||||
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (≧50%loading) |
|||||||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11(Surge 4KV） |
|||||||
|
Others |
Net.Weight |
0.55Kg |
||||||
|
Size |
180*60*34mm（L*W*H） |
|||||||
|
packing |
355*215*215mm/20pcs/CTN |
|||||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again |
|||||||

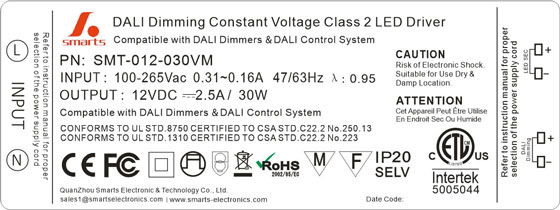

| Label |
 |
|||||||
 |
 |
 |
 |
Features
NOTE
1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3.The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
Mechanical Specification
※Input with Live Wire(L) Neutral Wire (N)
※Output LED SEC output Positive(LED+),output negative(LED-).Connected to LED Lamps.
※Signal Dimming （DA1）, (DA2） DALI Non polar！Connected to the BUS of the DALI Master.
※ When installing the LED driver and making input and output connections, cross-section area of conductor for input and output terminal block:0.75mm²(cord type: H03VVH2-F or H03VV-F).
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming Operation
※Connect the Dali signal line to the Dali bus of the controller (the Dali Master).
After Dali Master scanning and address assignment, the driver can be successfully dimmed.
Please refer to Diagram 1
※Notice:In the market, some DALI controllers has bus-powered functions .If not,please add an extra power supply.(DALI Power).
※Any incorrect connecting of signal line and output line would damage the master.
