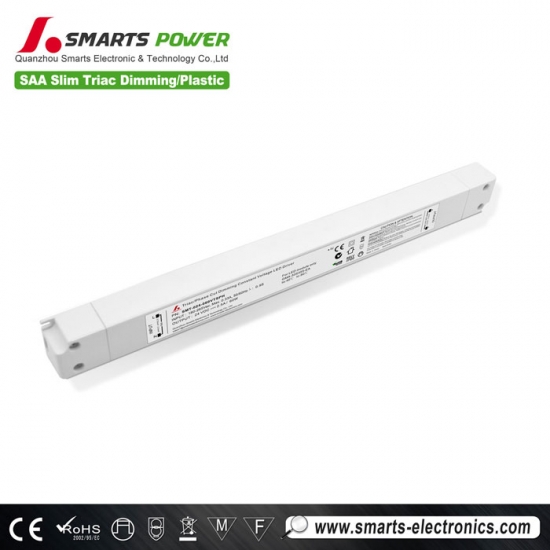

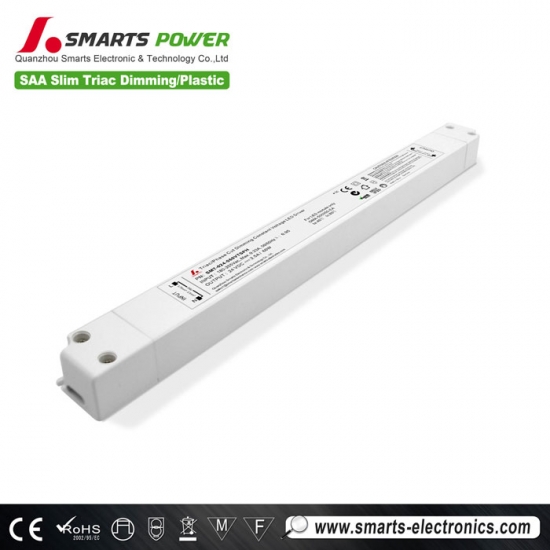

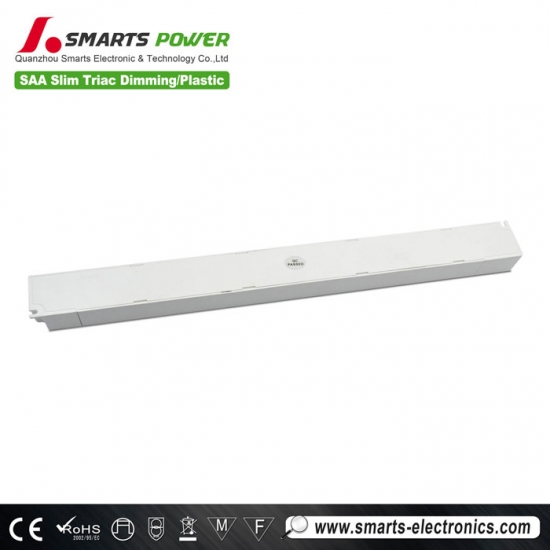

220v 240v ac to 24v dc 60W constant voltage thin triac dimmable led driver
Ultra thin led driver with size of 300*30*19mm ( L* W * H ), there is 12v / 24v 30w 36w 60w 100w available. This 24vdc 60w triac dimmable led driver works with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers.
Feayures
- Output constant voltage
-
Input voltage range 200-240VAC
-
Built-in PFC function / Efficiency > 80% / PF> 0.99
-
Dimming range: 0~100% / load:10~100%
-
Protections:short circuit/over voltage/over heat
-
IP20 design for indoor dry or damp or wet environment installations
-
Cooling by free air convection
-
Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
-
PWM output, does not change the color index
-
Full protection aluminum housing, for dry, damp, wet location
-
Strong compatibility, flicker-free dimming
-
7 years warranty
|
model |
SMT-012-060VTSPH |
SMT-024-060VTSPH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
5.0Amp |
2.5Amp |
|
|
Rated power |
60W |
60W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% |
||
|
Input |
Voltage Range |
200-240 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.98/277V |
||
|
Full Load Efficiency（Typ.） |
>83% |
>84% |
|
|
AC Current（Typ.） |
0.5A/100VAC / 0.13A/277VAC |
||
|
Inrush Current（Typ.） |
6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC |
||
|
Leakage current |
<0.74mA/110VAC; ﹤0.25mA/277VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P: 2KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, Alight industry level |
||
|
Others |
Weight |
0.45Kg |
|
|
Size |
300*32*20mm (L*W*H) |
||
|
packing |
50PCS/CTN |
||
| Label |
 |
||
 |
 |
 |
 |

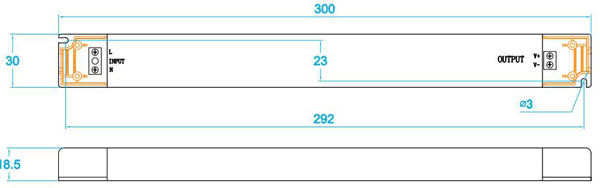

Mechanical Specification
² Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
² Output: Red is（Possitive side +）,Black is（Negitive side -）
Dimming Operation
Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
