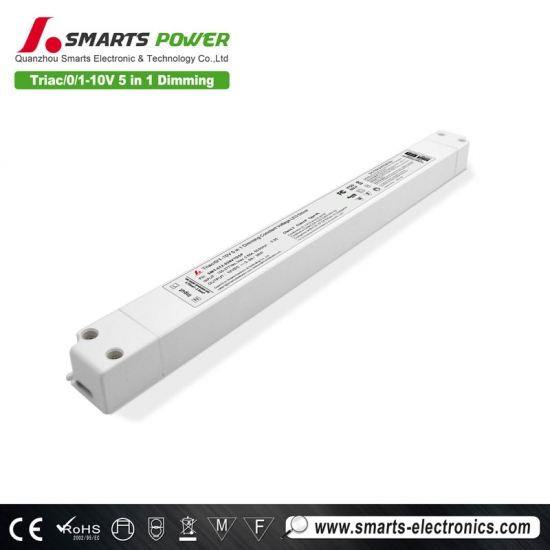

CE Listed constant voltage triac & 0 10v dimmable 36W 12v/24v LED power supply for led strip
This constant voltage 5 in 1 dimmable LED driver has built-in PFC function, working efficiency up to 79%, and has short circuit/overload/overtemperature protection functions. It complies with global safety lighting regulations. Mainly sold to Europe
Specifications
model | SMT-012-036VTDSPH | SMT-024-036VTDSPH | |
Output | DC Voltage | 12VDC | 24VDC |
Voltage Tolerance | ±0.5 | ||
Rated current | 3.0Amp | 1.5Amp | |
Rated power | 36W | 36W | |
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input | Voltage Range | 200-240VAC | |
Frequency Range | 47~63HZ | ||
Power Factor ( Typ.) | PF≥0.96/230VAC | ||
Full Load Efficiency(Typ.) | 80% | 79% | |
THD(Typ. ) @ full load | < 20% | ||
AC Current(Typ.) | 0.3A | ||
Inrush Current(Typ.) | 40.8A,50%,102us | ||
Leakage current | <0.5mA | ||
Protection | Short Circuit | Hiccup mode,recovers automatically after fault condition is removed | |
Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
Over temperature | 100℃±10℃ | ||
Protection Class | II | ||
Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
Working Humidity | 20 - 95%RH,non-condensing | ||
Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
Vibration | 10~500Hz,2G10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 EN62493 | |
Withstand voltage | I/P-O/P:3.75KVAC | ||
Isolation resistance | I/P-O/P: 100MΩ/500VDC/25℃/70%RH | ||
EMC EMISSION | EN55015 EN61000-3-2 EN61000-3-3 | ||
EMC IMMUNITY | EN61000-4-2,3,4,5,6,11 EN61547 | ||
Others | Weight | 0.2Kg | |
Size | 260*30*18.5mm(L*W*H) | ||
packing | 330*275*130mm/ 50pcs /CTN G.W.: 11KG/CTN | ||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
Mechanical Specification
Input terminals: (L) and (N) to connect to L and N of Mains AC
Output terminals: LED (+) to LED Positive side (+) , LED (-) to LED Negative side (-).
Dimming Terminal: DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) to 0/1-10V dimmer signal(-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
Dimming Operation and Connecting Diagram
TRIAC/Phase cut dimming:
The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Matching with leading edge and trailing edge Triac dimmer or lighting system.
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
0-10V/1-10V/Potentiometer/10V PWM:
Compatible Lighting Type
Slim size dimmable led power supply 36W constant voltage working mode, ultra-low load requirement, able to work perfectly under 10-100% load, suitable for indoor lighting projects.
Related Products

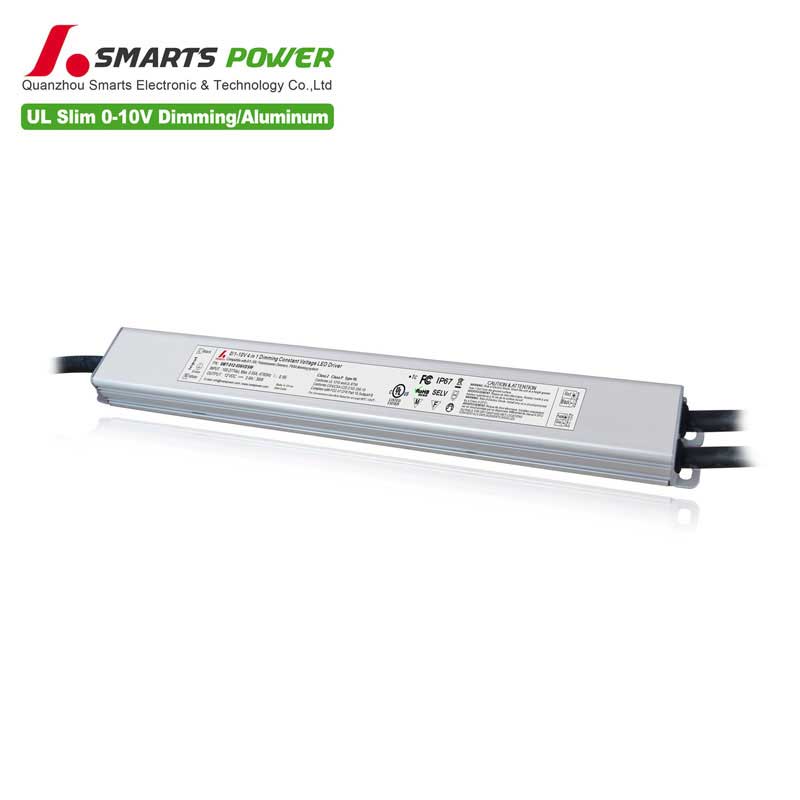

UL certified 0 10v dimmable constant voltage 36W 12V LED driver Aluminum housing design, waterproof grade IP67, suitable for outdoor LED lighting projects, such as building lighting projects, used with LED light strips
Mode: SMT-012-036VDSW intput voltage:100~277V AC Size:260*32*20mm (L*W*H)
Certification: UL
|
