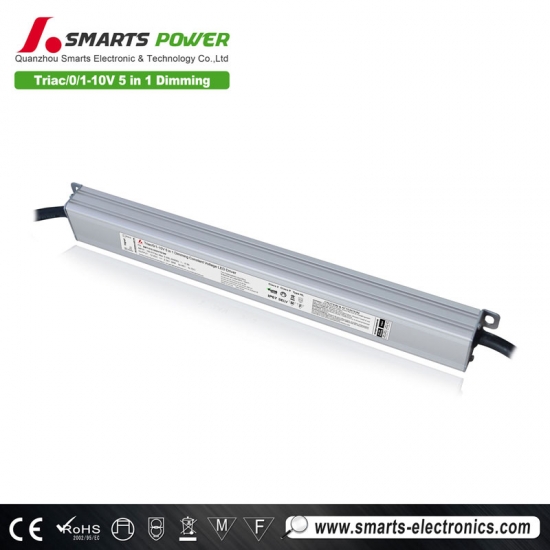

UL 30w slim triac 0-10v dimmable 277 volt led driver 12vdc constant voltage
Smarts driver dimmable 277 volt works well with leading edge and trailing edge triac dimmers, and 0/1-10v dimmers. LEVITON diimmer 100-130V shows good compatibility with it according to the test result.
Specification
|
model |
SMT-012-030VTDSW |
SMT-024-030VTDSW |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.98/277V |
||
|
THD(Typ. ) @ full load |
<10%@120VAC <15%@277VAC |
||
|
Full Load Efficiency（Typ.） |
79%@120VAC 80%@277VAC |
||
|
AC Current（Typ.） |
0.5A |
||
|
Inrush Current（Typ.） |
13A |
||
|
Leakage current |
<0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 +UL1310,CAN/CSA-C22.2 No.250.13 |
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.35Kg |
|
|
Size |
260*32*20mm(L*W*H) |
||
|
packing |
Carton size: 290*270*160mm 30pcs /CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |

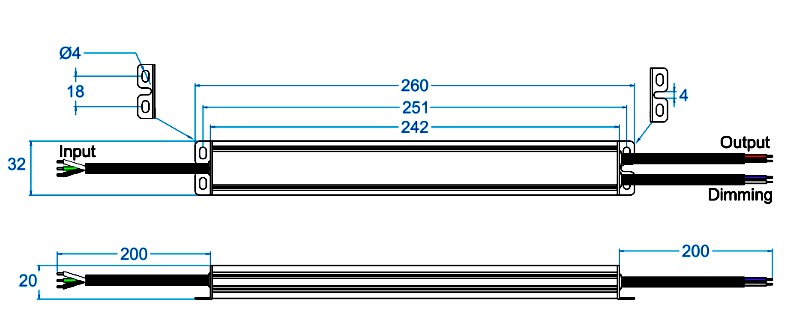

■ Mechanical Specification
Ø Input cable: 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC
Ø Output cable 2*18AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
Ø Dimming cable 2*18AWG,DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
■Derating Curve

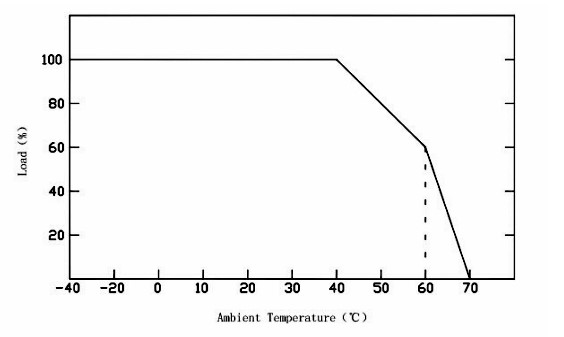

Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.

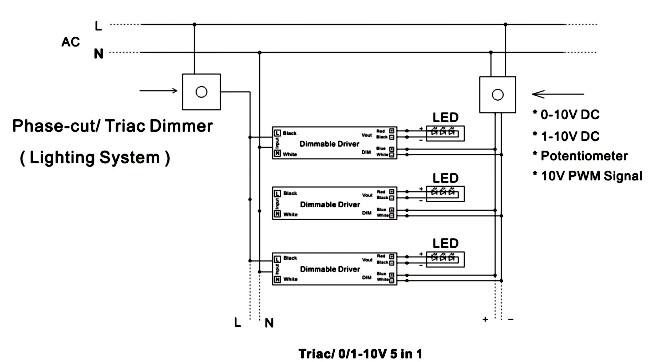

■ Dimming Operation and Connecting Diagram
Ø Using two ways of dimming at the same time,customers should be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;

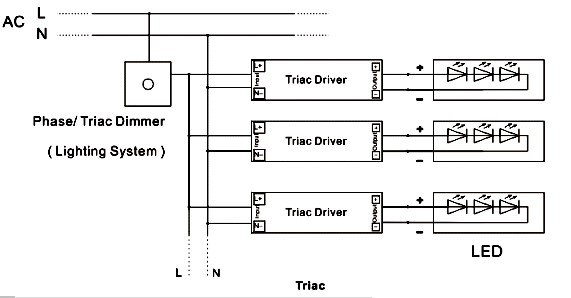

Using one dimming ---TRIAC/Phase cut dimming
Ø The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Ø Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
Ø Min loading is about 10%
Ø Please try to use dimmers with power at least 1.5 times as the output power of the driver.

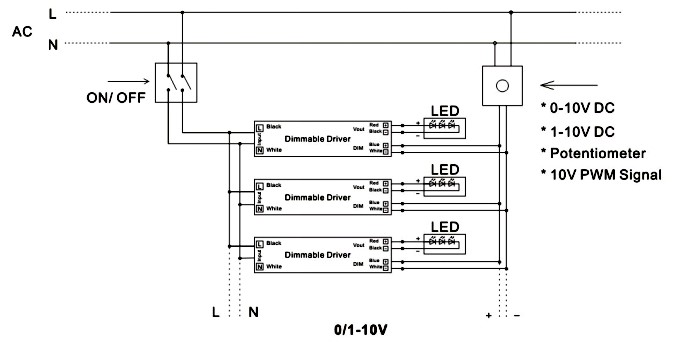

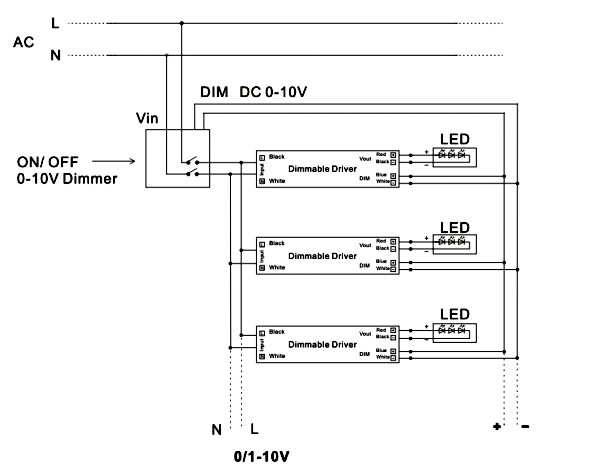

■ Using one dimming ---0-10/1-10V dimming
■ Instruction:
※This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage;
※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com Or take a phonecall: 0086-595-27256889
For more details, pl. Login our official website: www.smarts-electronics.com
Compatible Light Type
The 30 watt led driver is a ultra thin type with the height 20mm.The Dimming mode:Triac + PWM + 0-10V + 10V PWM + Resistor. Most led strips can match well. Super bright led strips is favorable.
Related Products
The 24v 60w led driver with slim line is a triac led driver. The aluminum case has water-resistant function. it is for wet,damp, dry locations.
Mode：SMT-024-036VTSW Dimming mode: triac dimming
Certification: UL, cUL
|
