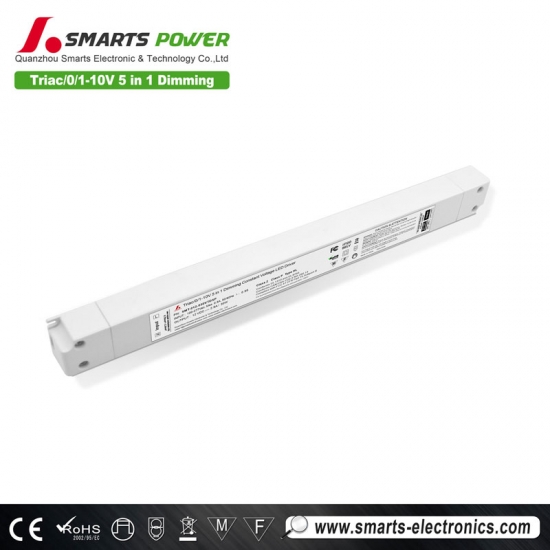

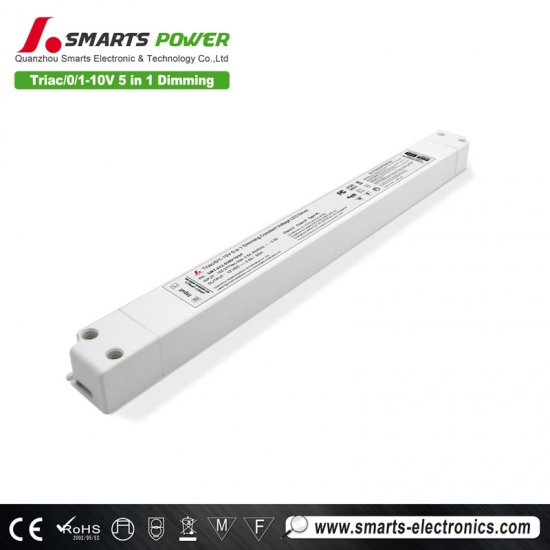

slim size constant voltage electronic 5 in 1 dimmable led strip lights drivers12v 30w
silm size series 5 in 1 dimmable led power supply has built-in PFC function, working efficiency is as high as 79%, can work perfectly under 10-100% load, plastic shell design, waterproof grade ip20. Comes with 7-year warranty
Specifications
| model | SMT-012-030VTDSPH | SMT-024-030VTDSPH | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Tolerance | ±0.5 | ||
| Rated current | 2.5Amp | 1.25Amp | |
| Rated power | 30W | 30W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±2% | ||
| Input | Voltage Range | 200-240VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≥0.96/230VAC | ||
| THD(Typ. ) @ full load | < 20% | ||
| Full Load Efficiency(Typ.) | 79% | 78% | |
| AC Current(Typ.) | 0.25A | ||
| Inrush Current(Typ.) | 40.8A,50%,102us | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode,recovers automatically after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ | ||
| Protection Class | II | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 EN62493 | |
| Withstand voltage | I/P-O/P:3.75KVAC | ||
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | EN55015 EN61000-3-2 EN61000-3-3 | ||
| EMC IMMUNITY | EN61000-4-2,3,4,5,6,11 EN61547 | ||
| Others | Weight | 0.2Kg | |
| Size | 260*30*18.5mm(L*W*H) | ||
| packing | 330*275*130mm/ 50pcs /CTN G.W.: 11KG/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
 |
 |
 |
 |

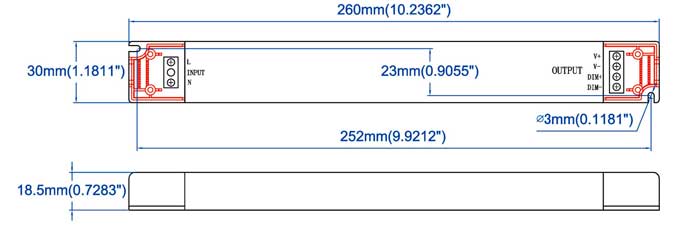

Mechanical Specification
Input terminals "Black" and "White" to connect to AC L and N.
Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
Dimming Operation and Connecting Diagram

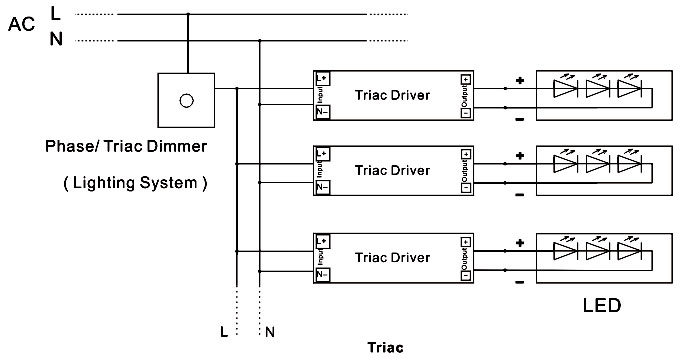

TRIAC/Phase cut dimming：
The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Matching with leading edge and trailing edge Triac dimmer or lighting system.
Please try to use dimmers with power at least 1.5 times as the output power of the driver.

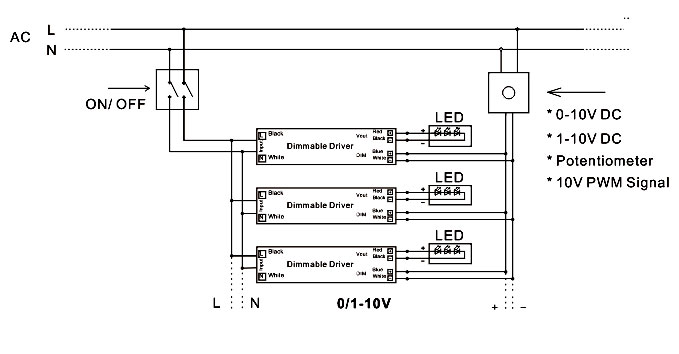

0-10V/1-10V/Potentiometer/10V PWM：

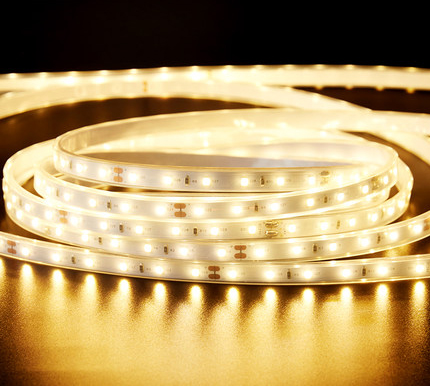

Compatible Lighting Type
This triac & 0 10v dimmable led driver has a dimming range of 0~100%. The plastic housing design is IP20 and is suitable for installation and use in indoor lighting projects. It has strong compatibility and can achieve flicker-free dimming.
Related Products
|

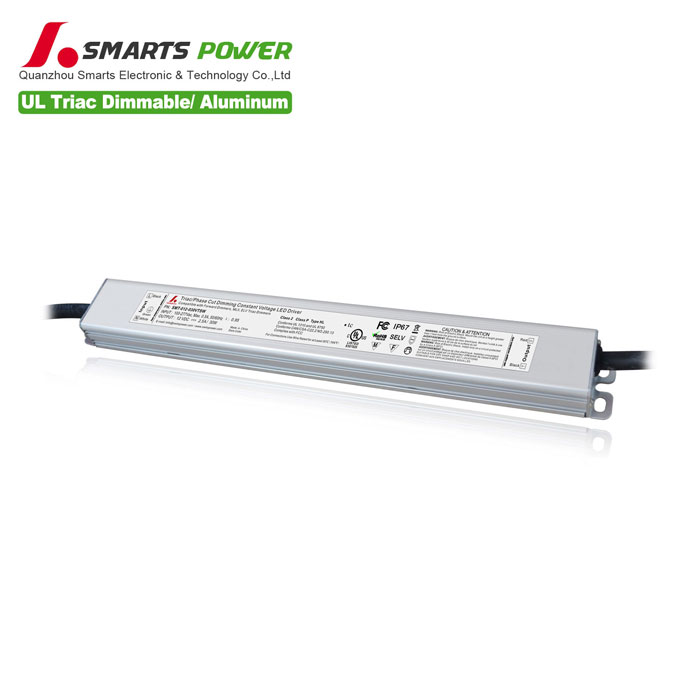

silm size triac dimmable led driver 12v 30W aluminum shell design, waterproof grade ip67, good heat dissipation, in line with global safety lighting laws. 7 years warranty
