triac & 0 10v dimmable 12v 60w led strip driver power supply junction box price
CE certified 5 in 1 dimmable 60W LED driver with built-in active PFC function, PF>0.99. Plastic housing design with waterproof grade IP20. Suitable for indoor lighting projects. With 7 years warranty
Specifications
| model | SMT-012-060VTDSPH | SMT-024-060VTDSPH | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Tolerance | ±0.5 | ||
| Rated current | 5.0Amp | 2.5Amp | |
| Rated power | 60W | 60W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±2% | ||
| Input | Voltage Range | 200-240VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor ( Typ.) | PF≥0.96/230VAC | ||
| THD(Typ. ) @ full load | <20% | ||
| Full Load Efficiency | 83% | 86% | |
| AC Current(Typ.) | 0.5A | ||
| Inrush Current(Typ.) | 57.6A,50%,128us | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ | ||
| II | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 EN62493 | |
| Withstand voltage | I/P-O/P:3.75KVAC | ||
| Isolation resistance | I/P-O/P : 100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | EN55015 EN61000-3-2 EN61000-3-3 | ||
| EMC IMMUNITY | EN61000-4-2,3,4,5,6,11 EN61547 | ||
| Others | Weight | 0.3Kg | |
| Size | 300*30*18.5mm(L*W*H) | ||
| packing | 330*330*130mm/ 50pcs /CTN G.W.: 16KG/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
 |
 |
 |
 |

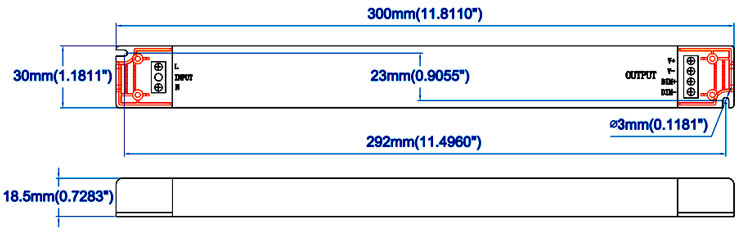

Mechanical Specification
Input terminals: (L) and (N) to connect to L and N of Mains AC
Output terminals: LED (+) to LED Positive side (+) , LED (-) to LED Negative side (-).
Dimming Terminal: DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) to 0/1-10V dimmer signal(-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
Dimming Operation and Connecting Diagram
TRIAC/Phase cut dimming：
The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Matching with leading edge and trailing edge Triac dimmer or lighting system.
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
0-10V/1-10V/Potentiometer/10V PWM：

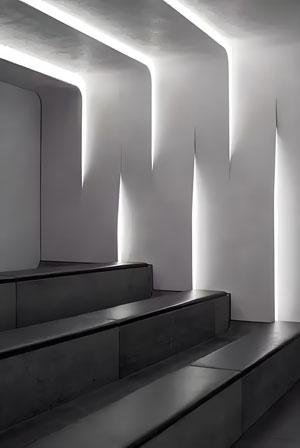

Compatible Lighting Type

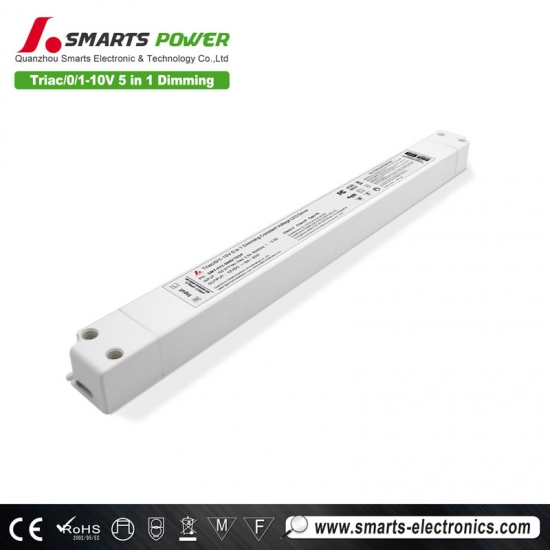

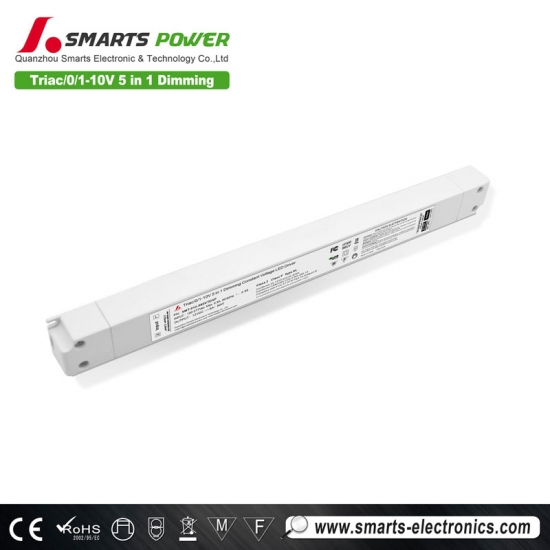

This CE certified 5 in 1 dimmable LED driver 60W 12V adopts constant voltage working mode, has a slim size and is easy and quick to install, and has a plastic shell design, making it suitable for indoor small space lighting projects.
Related Products
|

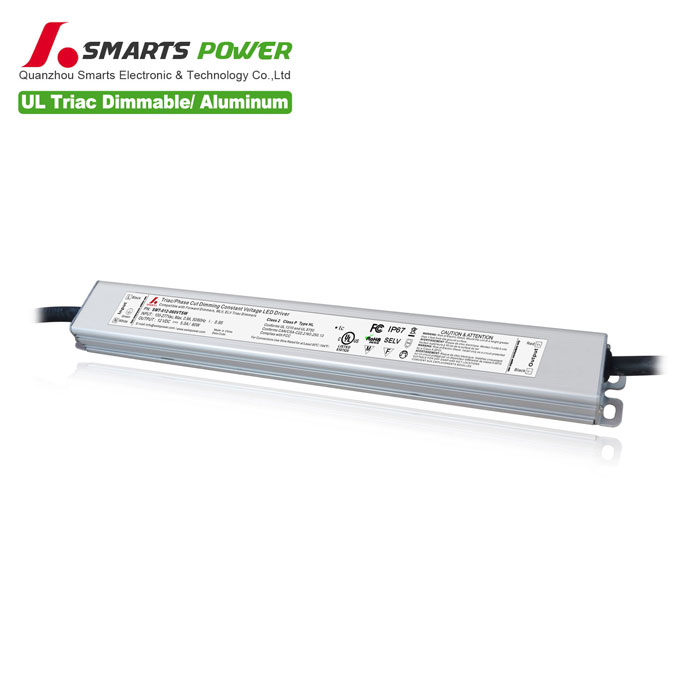

Triac dimmable led driver 60W ultra-thin body design, aluminum shell, waterproof grade ip67, can effectively protect the life of the power supply from water and dust, with a 7-year warranty. Suitable for outdoor lighting project installation.
