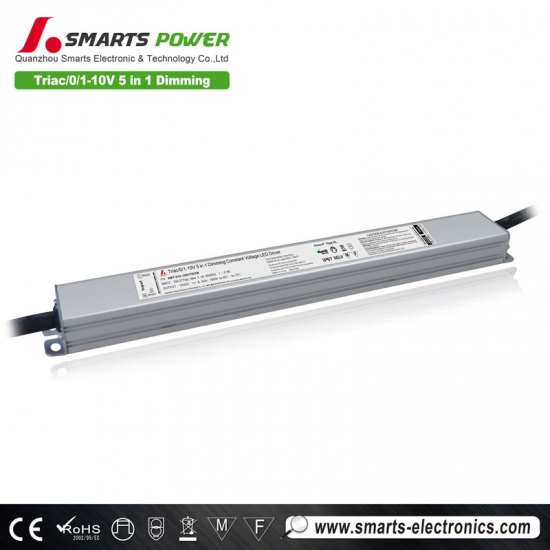

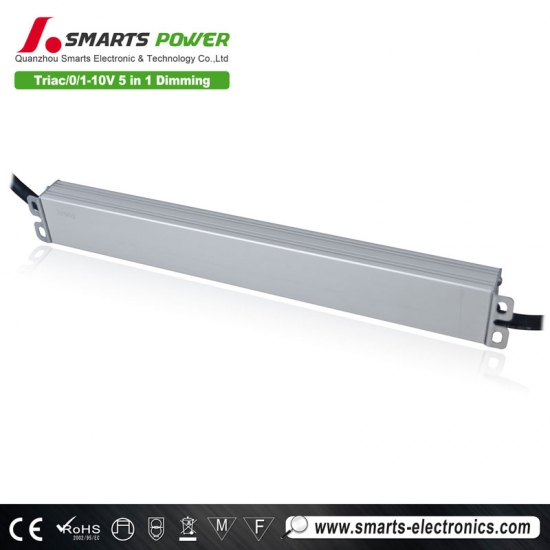

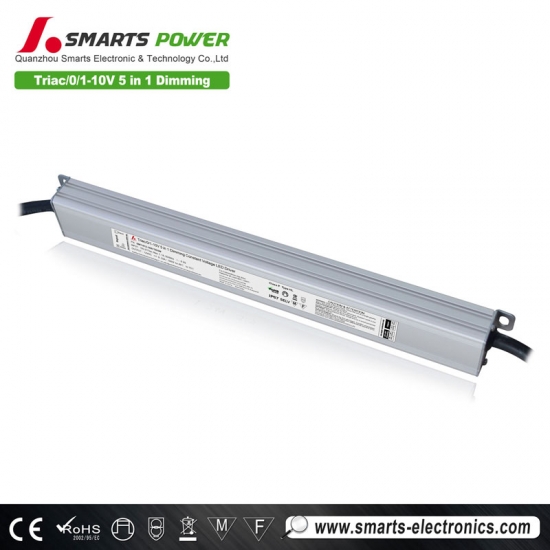

PWM ultra slim Triac/0-10V/1-10V 12v 100w led power supply waterproof type
This 100w led driver dimmable is UL cUL listed and promised 7 years warranty.Compared with most driver like Meanwell, this driver is outstanding which reduce the inventory requirement for both have 0-10v and triac dimming funciton.
Specification
|
model |
SMT-012-100VTDSW |
SMT-024-096VTDSW |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4Amp |
|
|
Rated power |
100W |
96W (class 2) |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
THD(Typ. ) @ full load |
<10%@120VAC <15%@277VAC |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.99@277VAC |
||
|
Full Load Efficiency（Typ.） |
84%@120VAC 87%@277VAC |
85%@120VAC 88%@277VAC |
|
|
AC Current（Typ.） |
1.30A |
||
|
Inrush Current（Typ.） |
27.0A |
||
|
Leakage current |
<0.50mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 ,CAN/CSA-C22.2 No.250.13 |
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.35Kg |
|
|
Size |
300*32*23mm(L*W*H) |
||
|
packing |
Carton size:360*27*17.5mmmm 30pcs /CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |

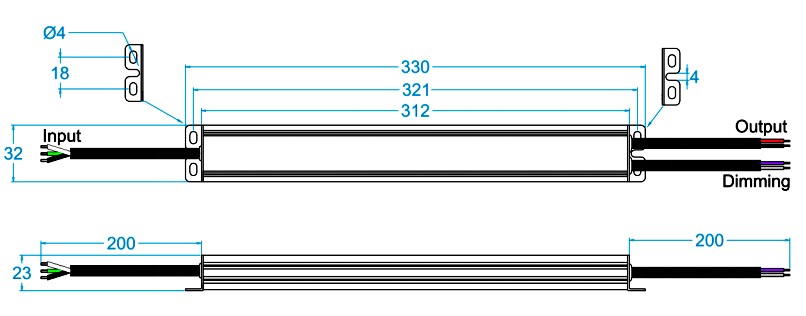

■ Mechanical Specification
|
Ø Input terminals "Black" and "White" to connect to AC L and N.
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Ø Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

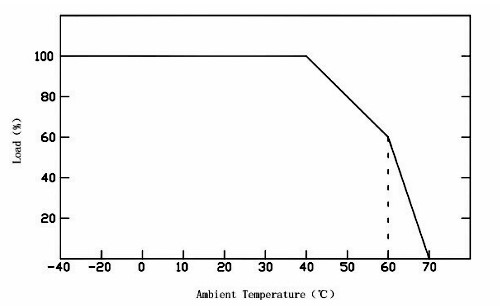

■Derating Curve
Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.

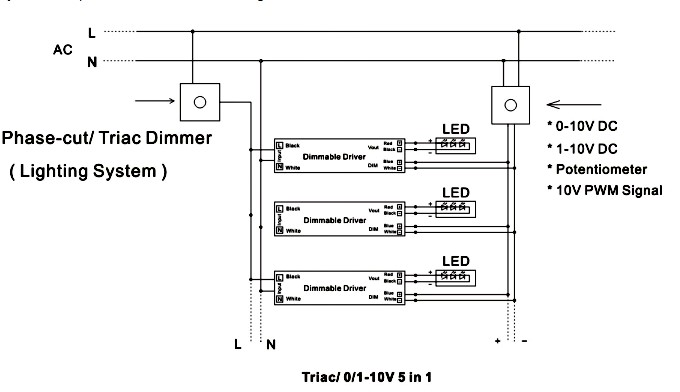

Ø Using two ways of dimming at the same time,customers should be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;

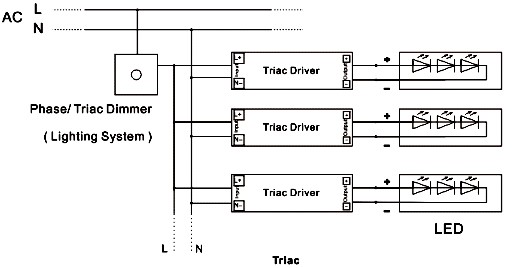

Using one dimming ---TRIAC/Phase cut dimming
Ø The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Ø Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
Ø Min loading is about 10%
Ø Please try to use dimmers with power at least 1.5 times as the output power of the driver.

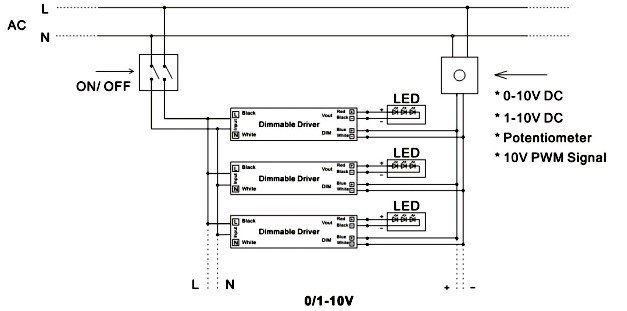

■ Using one dimming ---0-10/1-10V dimming
■ Instruction:
※This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage;
※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 0086-18016688251
For more details, pl. Login our official website: www.smarts-electronics.com

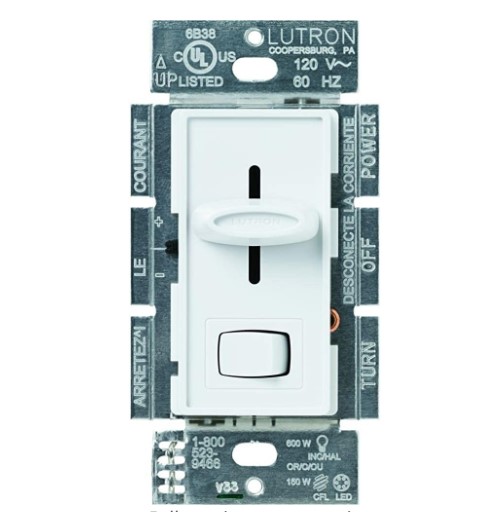

Compatible Dimmer Type
The design solutions of 12v 100w led power supply making it ideal for operation with a wide variety of ouput power, from 30w to 150w. Achieve one driver operates two type of dimming mode (triac +0-10v). LUTRON 0-10v or triac 100-277v both are workable.
Related Products

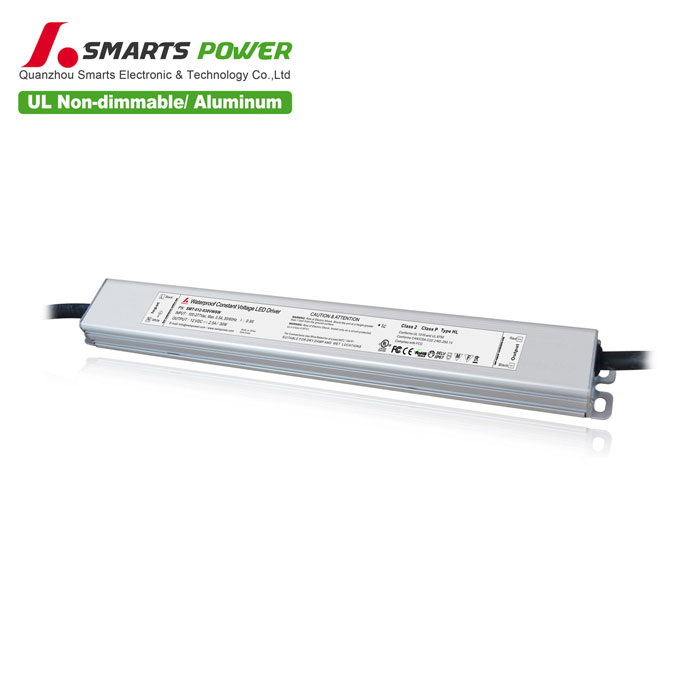

This ip67 led driver is designed for wet and damp location. It is also a series of thin driver but non dimmable. The output power is 30watt.
Mode：SMT-012-030VWSW
Dimming mode: non dimming Weight：350g/pcs |
