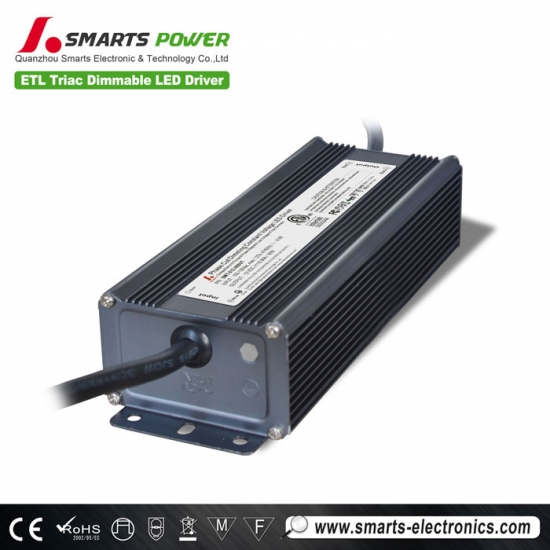

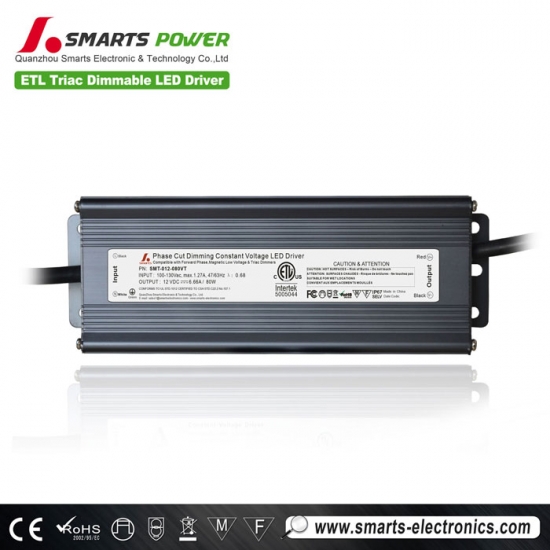

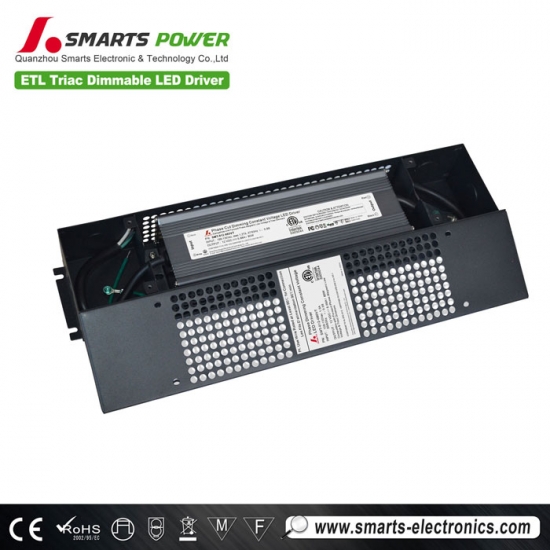

CE ETL listed waterproof 80w 12v Triac dimmable constant voltage led power supply
SMT-012-080VT is the 12v 80w triac dimmable led driver which is compatiable with well know brands of dimmer :LUTRON ,LEVITON.Dimming incandescent standard phase TRIAC dimmers,Electronic ELV reverse phase trailing edge dimmers,Magnetic, Low-Voltage (MLV) leading edge dimmers, Pulse Width Modulation (PWM).
|
model |
SMT-012-080VT |
SMT-024-080VT |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
6.66A |
3.33A |
|
|
Rated power |
80W |
||
|
Input |
Voltage Range |
100~130V AC/170～265V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.70/110V,PF≧0.70/170V,PF≧0.70/220V,PF≧0.70/265V |
||
|
Full Load Efficiency（Typ.） |
>84% |
>84% |
|
|
AC Current（Typ.） |
1.24A/110VAC 0.80A/170VAC 0.62A/220VAC 0.51A/265VAC |
||
|
Leakage current |
﹤0.25mA/110V/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
≦140VAC(90~135V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN61347-1/-2/-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV） |
||
|
Others |
Weight |
0.99Kg |
|
|
Size |
210*68.5*43mm（L*W*H） |
||
|
packing |
324*298*176mm |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3.Tolerance:includes set us tolerance,line regulation and load regulation . |

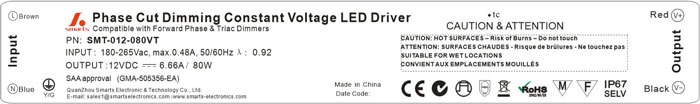

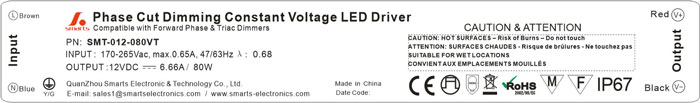

||
| Label |
|
||
Features of dimmable led power supply
- Input voltage range 90-135VAC/170-250VAC
- Built-in PFC function
- Efficiency 85%
- Protections:short circuit/over voltage/over heat
- Easy installation
- IP67 design for indoor or outdoor installations
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lightings.
- 3 years warranty
80W triac dimmable driver Mechanical Specification
- Input Brown with AC (L),Blue with AC(N),Green/Yellow with AC(G)
- Output Red is(DIM+),Black is(DIM-)
- Note: Any other requests we can customized.
Dimming Operation of waterproof dimmable led power supply
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
Derating Curve of led power supply
- Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the running life.
Connecting Diagram
Simple Connection Diagram
