Features |
|
|
High efficiency,save energy ,protected environment. High stability and low ripple, increase light efficiency and decrease light attenuation.Meet to safety standard and EMC Assure LED stability long lift and light efficiency by constant voltage Protections:Short circuit/Overload/Over temperature Cooling by free air convection 100% full load burn-in test. Suitable for LED lighting Brand electrotronic components. ROHS material. |
Product parameters
|
Model |
SMT-012-036VD |
SMT-024-036VD |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
voltage Accuracy |
±3% |
||
|
Current |
3.0Amp |
1.5Amp |
|
|
Rated power |
36W |
36W |
|
|
Input |
Voltage Range |
100-130VAC, 170-265VAC |
|
|
Frequency Range |
47～63HZ |
||
|
PF(Typ.） |
PF>0.90 |
||
|
Full Load Efficiency（Typ） |
>88% |
>89% |
|
|
AC Current (Typ.） |
0.41A@110VAC |
0.21A@220VAC |
|
|
Leakage current |
﹤0.62mA/110VAC, ﹤0.65mA/220VAC |
||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
|
Over voltage |
≦280VAC |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||
|
Environme |
Working TEMP. |
-40～+50℃ |
|
|
Working Humidity |
20～95%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. Waterproof rate: IP40 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
||
|
Others |
Weight |
0.4Kg |
|
|
Size |
180*60*34mm（L*W*H） |
||
|
packing |
355*215*215mm/20pcs /CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||

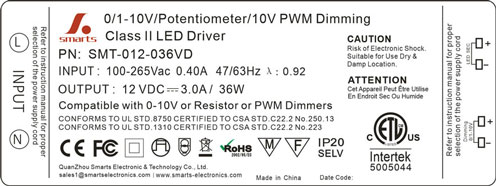

| Label |
 |
||
 |
 |
 |
 |
