--Output constant current
Feature
--Range 100-265VAC
--Built-in PFC function, PF> 0.91
--Efficiency> 88%
--Protections:short circuit/over current/over voltage
--Cooling by free air convection
--IP20 design for indoor installation .
--Dimming function:0/1-10V/ 10V PWM or potentiometer.
--Dimming range:0-100%
--Suitable for LED lighting and moving sign applications with dimming
--Compliance to worldwide safety regulations for lighting
--3 years warranty
|

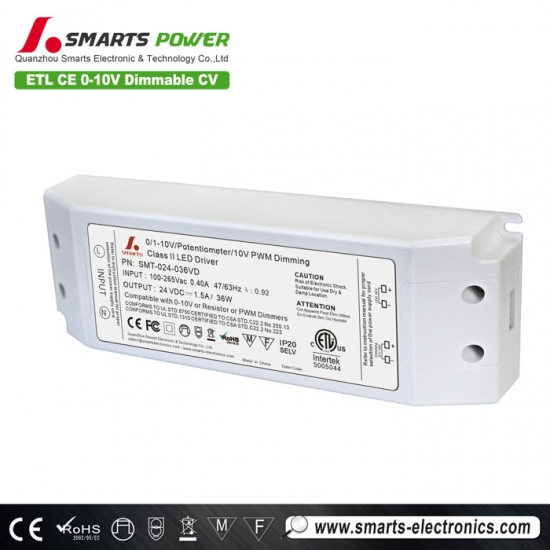

Model |
SMT-012-036VD |
SMT-024-036VD |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
voltage Accuracy |
±3% |
||
|
Current |
3.0Amp |
1.5Amp |
|
|
Rated power |
36W |
36W |
|
|
Input |
Voltage Range |
100~265VAC |
|
|
Frequency Range |
47~63HZ |
||
|
PF(Typ.) |
PF>0.91 |
||
|
Full Load Efficiency(Typ) |
>88% |
>89% |
|
|
AC Current (Typ.) |
0.25A |
0.27A |
|
|
Leakage current |
<0.62mA/110VAC, <0.65mA/220VAC |
||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
|
Over voltage |
<280VAC |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||
|
Environme |
Working TEMP. |
-40~+50℃ |
|
|
Working Humidity |
20~95%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. Waterproof rate: IP40 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (>50%Load) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
||
|
Others |
Weight |
0.4Kg |
|
|
Size |
180*60*34mm(L*W*H) |
||
|
packing |
355*215*215mm/20pcs /CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
|

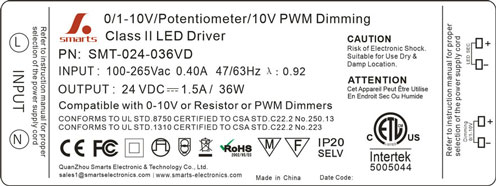

label |
|
||
 |
 |
 |
 |
