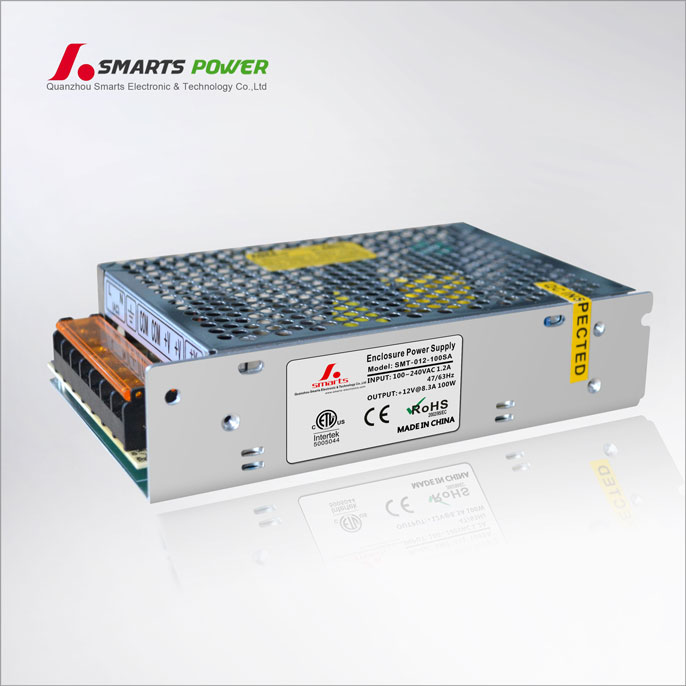

Aluminum housing 12v 100w 8.3a switching power supply
Aluminum housing 12v 100w 8.3a switching power supply is IP20, 2 YEARS warranty for CCTV
Description of 12v 8.3a 100w switching power supply
- Product size: 160*88*34
- Case material: aluminium case
- Net weight/pc:650g
- Input voltage: 100-240V
- output voltage 12V
- Frequency: 47-63Hz
- Output power: 100W
- output current:8.33 Amp
- CE(EMC,LVD standard) ROHS approval
- 2 years warranty
Feature of power supply 12v
- Competitived price and high reliability
- AC input power suitable for the world
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact effect
- With short-circuit and overload protection
- Compact size, light weight
- 100% full-load burn-in test
- Installed with EMI filter, minimum wave
Environment
- Working temp,humidity: -10°C~+60°C,20%~90%RH
- storage temp,humidity: -20°C~+85°C,10%~95%RH non-condensing
- Withstand vibration: 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
Safety
- Withstand voltage: I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- Isolated resistance: I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
- EMC standard: Comply with EN55022,CLASSA
Applications
Our products are widely used in various industries, such as- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights, Controller Panels, etc.
parameter of switching power supply
|
Model |
Input voltage(AC V) |
Working Frequency |
Output voltage |
Output Current |
Output power(DC W) |
Working Temp. |
Protection grade |
|
SMT-012-100SA
|
100-240V |
47~63HZ |
12V |
8.33A |
100W |
-25~50°C |
IP20 |
|
SMT-012-150SA
|
100-240V |
47~63HZ |
12v |
12.5A |
150W |
-25~50°C |
IP20 |
|
SMT-036-150SA
|
100-240V |
47~63HZ |
36v |
4.17A |
150W |
-25~50°C |
IP20 |
|
SMT-048-150SA
|
100-240V |
47~63HZ |
48v |
3.13A |
150W |
-25~50°C |
IP20 |
