Non-dimmable LED Driver

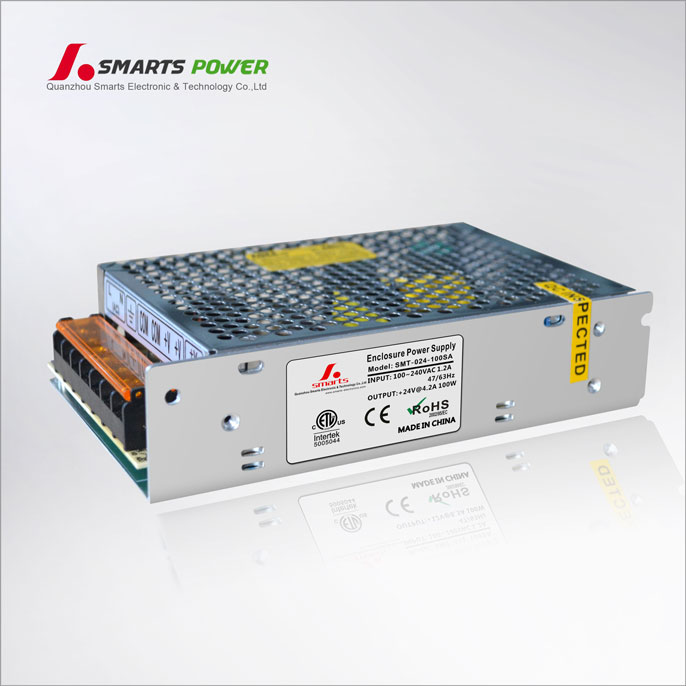

120vac to dc 24v 100w switching led transformer

120vac to dc 24v 100w switching led transformer is aluminum case, ip20, for CCTV, AC input power suitable for the world
  • item no.:

    SMT-024-100SA
  • lead time:

    about 7 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Ximen
  • payment:

    T/T Paypal Western Union
  • market price:

    $9.5
  • Input Voltage:

    100-240v
  • Output Voltage:

    24v
  • Output Current:

    4.16a
  • Working Mode:

    constant voltage
  • Certification:

    CE, Rohs, ETL
  • Warranty:

    2 years
inquiry now
product details

120vac to dc 24v 100w switching led transformer

120vac to dc 24v 100w switching led transformer is aluminum case, ip20, for CCTV,  AC input power  suitable  for the world


Description of led transformer

  1. Product size:  160*88*34
  2. Case material: aluminium  case
  3. Net weight/pc:650g
  4. Input voltage: 100-240V
  5. output voltage 12V
  6. Frequency: 47-63Hz
  7. Output power: 100W
  8. output current:8.33 Amp
  9. CE(EMC,LVD standard) ROHS approval
  10. 2 years warranty


Feature of 24v transformer

  1. Competitived price and high reliability
  2. AC input power suitable for the world
  3. High efficiency and low operation temperature
  4. Soft-start current can reduce the AC input impact effect
  5. With short-circuit and overload protection
  6. Compact size, light weight
  7. 100% full-load burn-in test
  8. Installed with EMI filter, minimum wave


Environment

  1. Working temp,humidity: -10°C~+60°C,20%~90%RH
  2. storage temp,humidity:  -20°C~+85°C,10%~95%RH non-condensing
  3. Withstand vibration:  10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes


Safety

  1. Withstand voltage:  I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
  2. Isolated resistance:  I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
  3. EMC standard: Comply with EN55022,CLASSA


Applications

Our products are widely used in various industries, such as
  • indoor LED illuminating lights,
  • LED Neon,
  • LED urban Decoration
  • LED Lighting Advertising,
  • LED Display,
  • Safety Protection Apparatus,
  • Telecommunications,
  • Networks,
  • Vehicle Lights, Controller Panels, etc.

SMT-024-100SA

parameter of switching led transformer

 Model

Input voltage(AC V)

Working Frequency
(Hz)

Output voltage
(DC V)

Output Current

Output power(DC W)

Working Temp.

Protection grade



SMT-012-100SA



100-240V

47~63HZ

12V

8.33A

100W

-25~50°C

IP20



SMT-012-150SA



100-240V

47~63HZ

12v

12.5A

150W

-25~50°C

IP20



SMT-036-150SA



100-240V

47~63HZ

36v

4.17A

150W

-25~50°C

IP20



SMT-048-150SA



100-240V

47~63HZ

48v

3.13A

150W

-25~50°C

IP20
