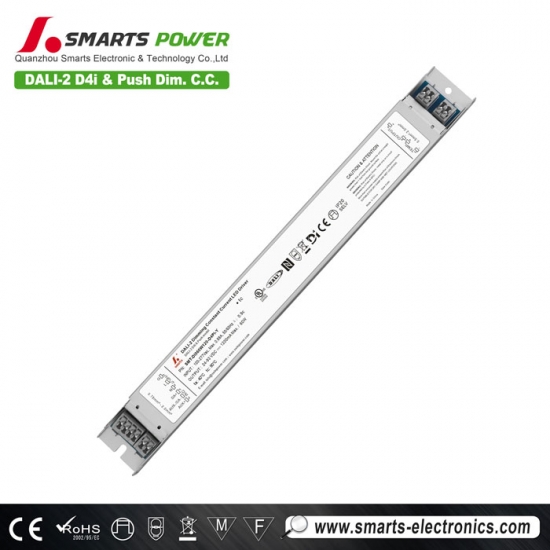

120ma-1200ma DALI-2 & PUSH D4I intelligent dimmable constant current led driver price
Constant current DALI-2 & PUSH D4I dimmable LED driver is equipped with NFC smart programming module. Users can freely select dimming curve through NFCAPP, and can also set functions such as timed dimming and light attenuation compensation. Complies with dali protocol. With 7-year warranty
Specification
| Model | SMT-DI060W120-D4PI | |
| Certificate | UL / FCC / CE / RoHS / Reach | |
| Output | Rated current | 120mA-1200mA (output current can be adjusted arbitrarily using NFC) |
| DC Voltage | 24V-93V | |
| Voltage Tolerance | ±30mA | |
| Voltage Regulation | ≤0.5% | |
| Rated power | 60Wmax | |
| Line Regulation | <1% | |
| Load Regulation | <0.1% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor @ full load | PF≥0.94 | |
| THD(Typ.) @ full load | ≤15% | |
| Efficiency @ full load | ≥88%@120VAC 60Hz ≥89%@230VAC 50HZ ≥89%@277VAC 60HZ | |
| No load power (Max) | <1W | |
| Standby power (Max) | <0.5W | |
| AC Current (Max.) | 0.75A | |
| Inrush Current (Typ.) | 66.0A, 220us@50%Ipeak2770V 55.2A, 98us@50%Ipeak230V 28.7A, 204us@50%Ipeak120V | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over temperature | Ambient temp. over 50±5℃, output current will be reduced to 50%;Ambient temp.over 60±5℃, output current will be reduced to 0%;Ambient temp.Over 45±5℃,recovers automatically after temp. drops. | |
| Environment | Working TEMP | -40~+60℃ (see below derating curve) Tc point temperature (Ta=40 ℃)89℃ |
| Working Humidity | 20 -90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 UL1310(US) |
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|
| Strobe test standard | Compliant with IEEE 1789 without strobe | |
| THD test standard | Compliant with IEC/EN 61000-3-2 | |
| lightning surge | DM 2kV/ CM 4kV | |
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | |
| Others | Net Weight | 0.3KG |
| Dimension | 314*30*21.7mm (L*W*H) | |
| Packing | *** pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | |
| 2. To extend the driver's using life , please reduce the loading at lower input voltage . | ||
 |
 |
 |
 |

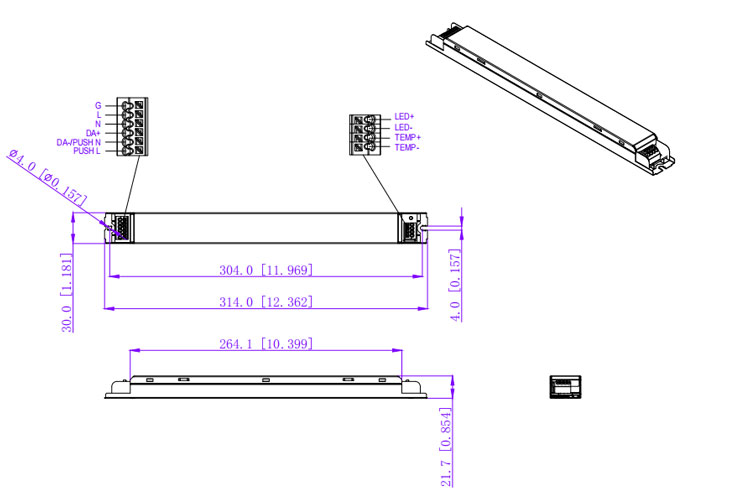

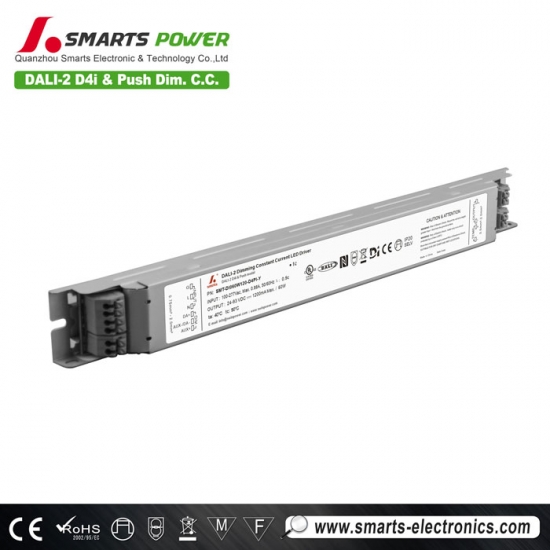

Mechanical Specification
1. Input with Gray terminals 6P: Live Wire AC (L), Neutral Wire AC(N) .
2. Output LED SEC with Red/Black terminals 4P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
3. Dimming Gray terminals 6P: when DALI dimming, signal dimming DA+, DA-/PUSH N and PUSHS L connected to the BUS of the DALI Master.
4. Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
5. This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Warm tips:
1. Suggested wire diameter: Input 0.2mm2-1.5mm2/AWG24-16.
Dimming operation
Related Products
DALI -2 D4I intelligent dimmable led power supply Aluminum housing design, waterproof level ip 66. Good heat dissipation. Built-in NFC smart programming module. Able to achieve high-precision flicker-free dimming. With 7-year warranty
Mode：SMT-DI060W120-D4PA-Y intput voltage：100-277vac
Size : 332*38.5*23.6MM |
