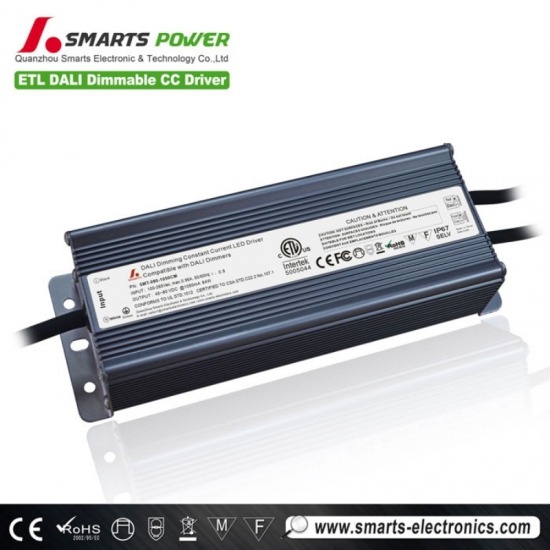

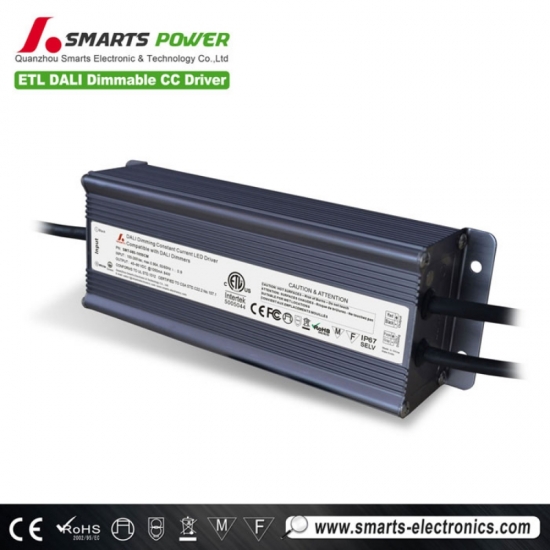

ETL CE ROHS dali 1050mA dimmable constant current led driver
With 5 years warranty, the 1050mA waterproof electronic led driver cetificated by ETL/CE/ROHS approval,which won a large population in North American, and extensive used in Light manufacturing.
Specification
|
Model |
SMT-090-0900CM |
SMT-080-1050CM |
SMT-057-1400CM |
SMT-038-2100CM |
|
|
Output |
DC Voltage |
50-90V |
45-80V |
35-57V |
20-38V |
|
Voltage Accuracy |
±0.5V |
||||
|
Rated current |
0～900mA |
0～1050mA |
0～1400mA |
0～2100mA |
|
|
Rated power |
80W |
84W |
80W |
79W |
|
|
Input |
Voltage Range |
100-265VAC |
|||
|
Frequency Range |
47～63HZ |
||||
|
Power Factor ( Typ.） |
PF≧0.92/120V / PF≧0.95/220V |
||||
|
Full Load Efficiency（Typ.） |
>87% |
>86% |
>85% |
>85% |
|
|
AC Current（Typ.） |
0.960A |
1.042A |
1.031A |
1.031A |
|
|
Leakage current |
﹤0.63mA/120VAC, ﹤0.75mA/220VAC |
||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||
|
Over Current |
≦1.4*Iout |
||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||
|
Environment |
Working TEMP. |
-40～+50℃ |
|||
|
Working Humidity |
20～95%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
||||
|
Safety & EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP67 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV） |
||||
|
Others |
Weight |
1Kg |
|||
|
Size |
210*69*45mm（L*W*H） |
||||
|
packing |
355*215*215mm/10pcs/CTN 220*70*50 mm for inner box |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||||
 |
 |
 |
 |

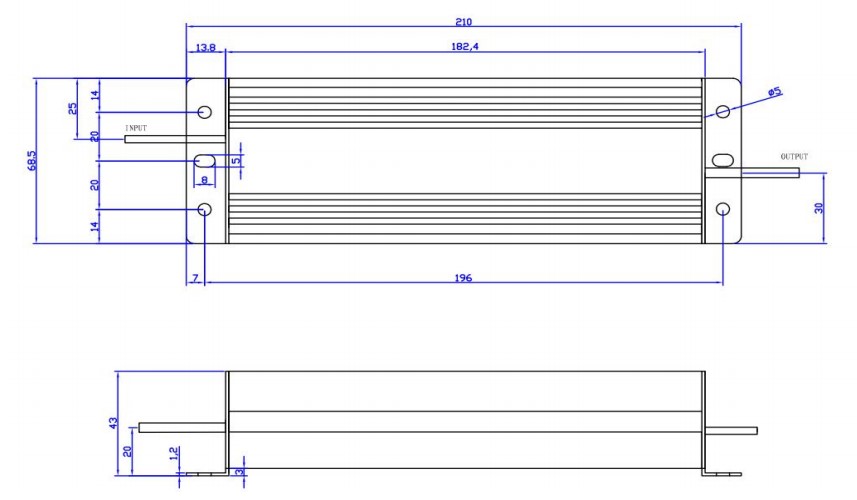

Mechanical Specification
※Input Rubber cable H03VV-F 3G 1.0㎡，the green/yellow cable connect with (FG)，Brown with AC (L),Blue with AC(N)
※Input with Live Wire(L) Neutral Wire (N)
※Output LED SEC （LED+）,（LED-）
※Signal Dimming （DA1）, (DA2） DALI Non polar！
Dimming Operation
※Connect DALI signal cable of driver with DALI cable in Control then dim after controller scan and assign address

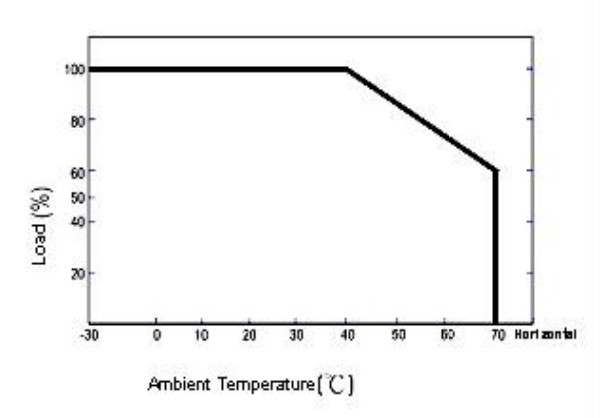

Derating Curve
※Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
Compatible Light Type
Waterproof dali 1050mA dimmable constant current led driver is the perfect choice for working with most LED downlights.The wet/dry rate is IP67 which fits most installations.
Related Products
|

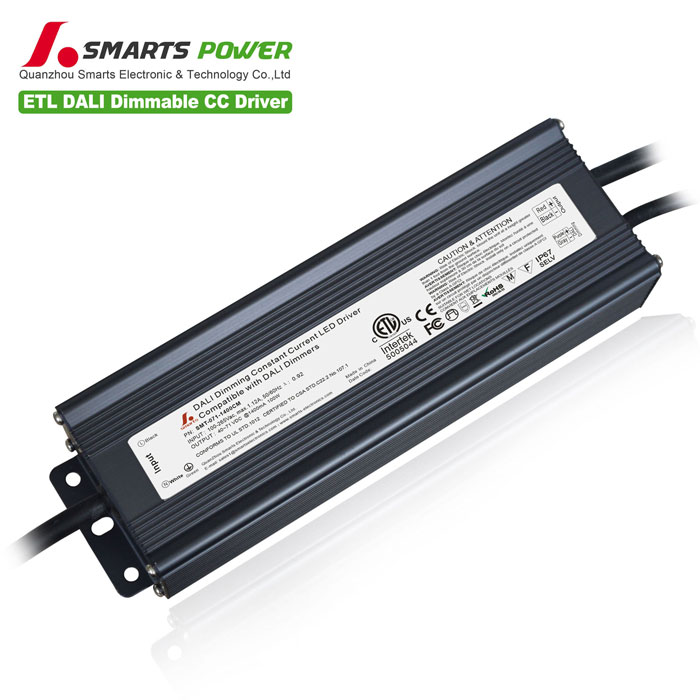

1400ma ip67 dimmable high quality led driver can be used indooors and outdoors, with strong water resistance. DALI dimmable 1400ma 100w Waterpoof dimmable Electronic Led Power Supply is Input:100~265VAC 47-63HZ Output : 40-71V @1400mA 98W 3 years warranty led driver
