led driver 20w dimmable constant current dali led driver
Product parameters
Model： SMT-040-0500CM

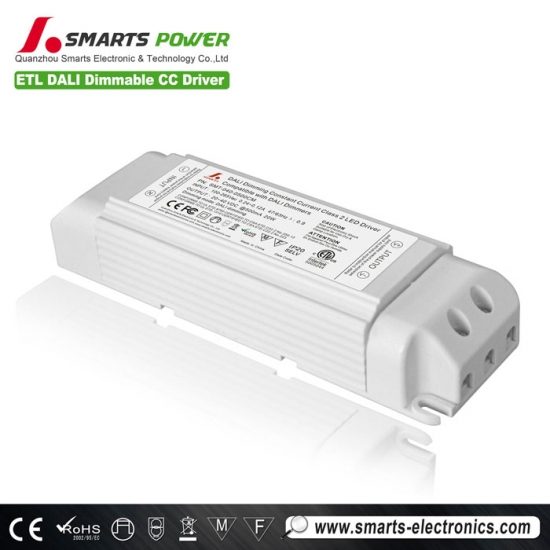

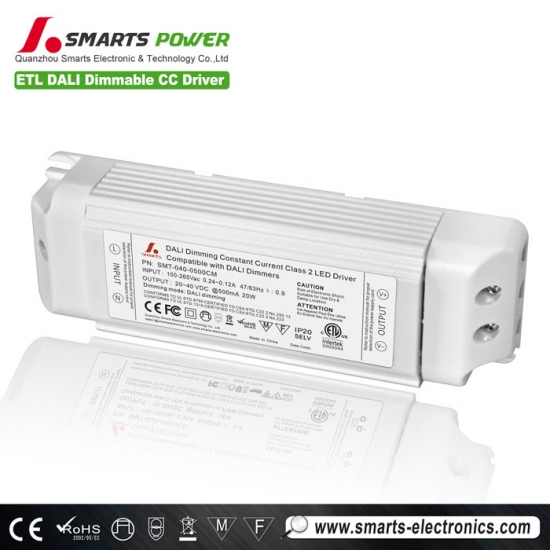

Smarts Electronics DALI dimmable drivers 10~20W (adjustable current)
Output
Rated current
700mA
600mA
550mA
500mA
450mA
400mA
350mA
250mA
Current Tolerance
±5%
DC Voltage
3-28V
3-32V
3-36V
3-40V
3-45V
3-50V
3-50V
3-50V
Open Circuit Voltage (Max.)
55V
Rated power
20W
20W
20W
20W
20W
20W
17.5W
12.5W
Input
Voltage Range
100-265VAC
Frequency Range
47～63HZ
Power Factor
PF≥0.95/110VAC PF≥0.90/220VAC PF≥0.85/265VAC（Full loading）
Full Load Efficiency (Typ.)
>82%
>83%
>82%
>82%
>84%
>84%
>82%
>80%
AC Current（Max.）
0.22A
0.22A
0.22A
0.22A
0.22A
0.22A
0.20A
0.15A
Leakage current
<0.5mA
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage
55V
Over Load
≤ 120%
Protection Class:
Class II / Class 2
Environment
Working TEMP.
-40 - +60℃
Working Humidity
20 - 90%RH,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10 - 500Hz, 2G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
Safety & EMC
Safety standards
EN61347-1 EN61347-2-13 IP20
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015,EN61000-3-2 (≥60%load)
EMC Immunity
EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）
Others
Weight
0.19Kg
Size
140*45*27mm（L*W*H）
packing
320*280*215（50PCS/CTN ）
Notes
1. All parameters NOT specially mentioned are measured at 120V/220VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Label
Specifications
-
Working mode: Constant current
-
Energy transfer: AC-DC
-
Dimming mode: DALI dimmable
-
PF:>0.90
-
Efficiency: 88%
-
RippleI & Noise (max.) : 150mVp-p
-
Voltage Tolerance : ±5%
-
Line Regulation : ±1%
-
Load Regulation : ±2%
-
Case material: Plastic housing
-
Waterproof rate: IP40
-
Produt cord:connecting terminal(IP20) / 18AWG*20CM
Features
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant current
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
- Brand electrotronic components.
- ROHS material.
Environment
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
