Specification
Model Specification |
SMT-040-1400CM |
SMT-086-0700CM |
SMT-120-0500CM |
SMT-070-0900CM |
||
AC inout voltage |
100-265VAC |
100-265VAC |
100-265VAC |
100-265VAC |
||
DC output voltage |
20-40DC |
40-86VDC |
70-120VDC |
40-70VDC |
||
Output voltage rang) |
+/-2% |
+/-1% |
+/-1% |
+/-1% |
||
output current |
0-1400mA |
0-700mA |
0-500mA |
0-900mA |
||
Wave and noise |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
||
Inlet stability |
+/0.5% |
+/0.5% |
+/0.5% |
+/0.5% |
||
Load stability |
+/1% |
+/1% |
+/1% |
+/1% |
||
DC output power |
56W |
60W |
60W |
63W |
||
dimming &working mode |

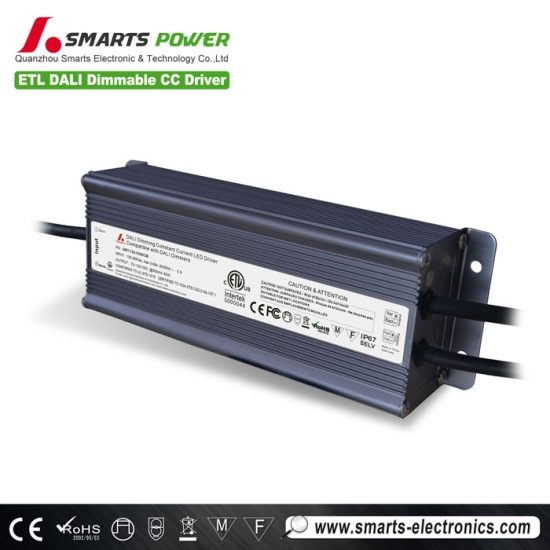

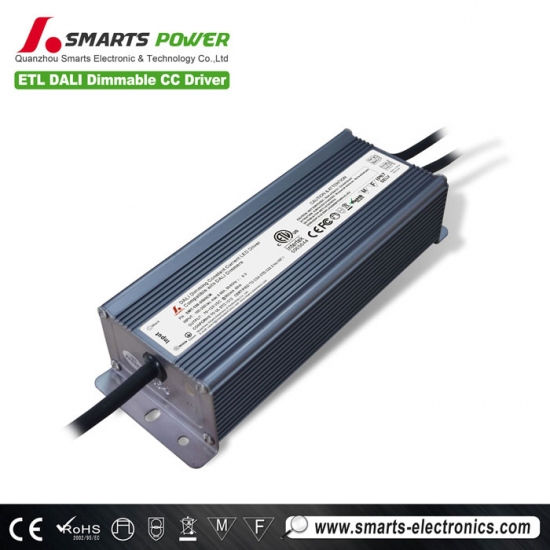

DALI dimming constant current type |
|||||
Setup, Rise Time |
500ms, 120ms / 230VAC |
|||||
Hold Up Time (Typ.) |
50ms/100-240VAC |
|||||
Efficiency &pf |
efficency>88% PF>0.9 |
|||||
outer case & IPrate |
plastic IP40 | |||||
net weight |
160 g | |||||
protection |
1. Protections: Short circuit / Overload / Over voltage / Over temperature. 2. Protection type : Constant current limiting type; Shut down o/p voltage, re-power on to recover. 3. Over Voltage : Shut down and latch off o/p voltage, re-power on to recover. 4. Over Temperature : 85°C±10°C. |
|||||
Features |
|
|||||
environment |
1. Working Temperature : -30 ~ +60°C 2. Working Humidity : 20 ~ 90% RH non-condensing 3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH 4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C) 5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes. |
|||||
safety |
1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 2. Withstand Voltage : I/P-O/P: 3000KVAC 3.Isolation Resistance : I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH 4. MTBF : 50Khrs min. MIL-HDBK-217F (25°C ) |
|||||
certificates | CE(EMC+LVD),ROHS | |||||
application |
Our products are widely used in various industries, such as
|
|||||
Label |
|
Packing and Shipping
|
|
|
FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: steven821228
