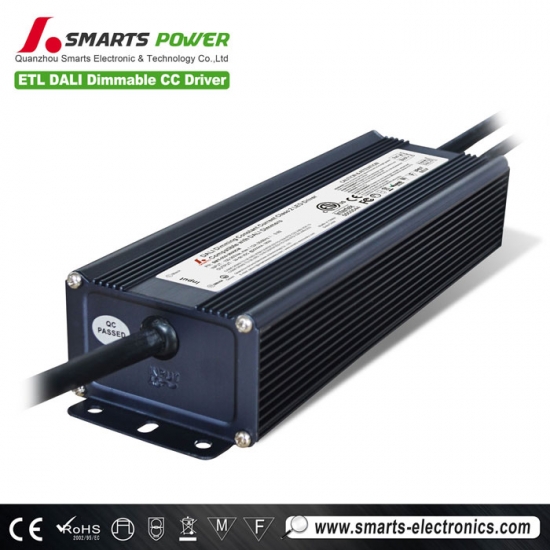

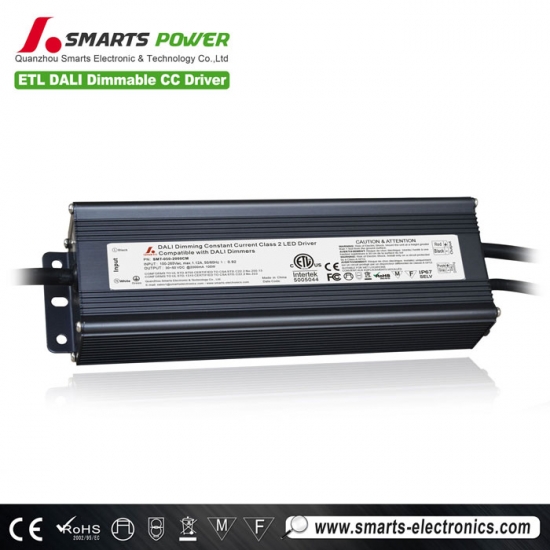

dali dimmable flood light power supply 2000ma 100w
Specification
Model
SMT-100-1050CM
SMT-071-1400CM
SMT-060-1750CM
SMT-050-2000CM
SMT-042-2400CM
Output
DC Voltage
50~100V
40~71V
40~60V
30~50V
25~42V
Voltage Accuracy
±0.5V
Rated current
0～1050mA
0～1400mA
0～1750mA
0～2100mA
0~2400mA
Rated power
105W
98W
105W
100.8W
100w
Input
Voltage Range
100-265VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.95/100V, 220V
Full Load Efficiency（Typ.）
>89%(110,220V)
>88%(110,220V)
>88%(110,220V)
>88%(110,220V)
>88%(110,220V)
AC
Current（Typ.）
0.960A(110,220V)
1.042A(110,220V)
1.031A(110,220V)
1.038A(110,220V)
1.037A(110,220V)
Leakage current
﹤0.75mA/110, 220VAC
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault condition
is removed
Over Current
≦1.4*I out
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environment
Working TEMP.
-40～+50℃
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 IP66
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry
level （surge4KV）
Others
Weight
1.3Kg
Size
230*69*45mm（L*W*H）
packing
355*215*215mm/10pcs/CTN 240*70*50 mm for inner box
Noteses
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
Label
Product parameters
- Produt cord:18AWG*20CM
- 3 years warranty
- (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
- High efficiency,save energy ,protected environment.
- Output constant current
- Range 100-265VAC/170-375VAC
- Built-in PFC function
- Efficiency > 90%
- Dimming function:DALI with better compatibility
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant current.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting applications by PWM output
- Compliance to worldwide safety regulations for lighting
- Suitable for dry/damp/wet locations
Environment
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety:
- Safety Standards : EN61347-1 EN61347-2-13 IP40
- Withstand Voltage : I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
- Isolation Resistance : I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
Application:
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
