waterproof electronic constant voltage triac & 0 10v dimmable led driver 12v 100w for strip lights

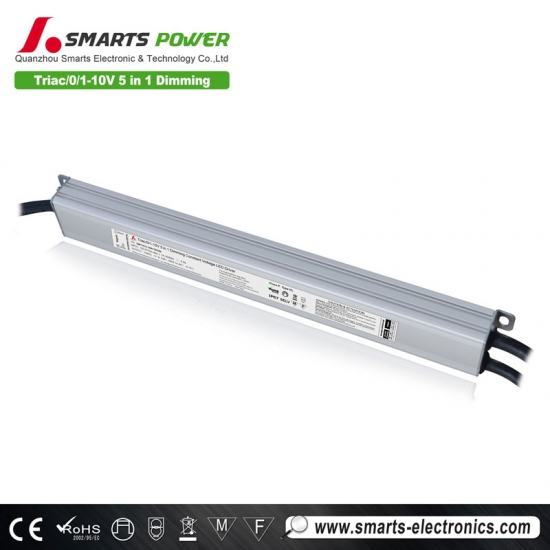

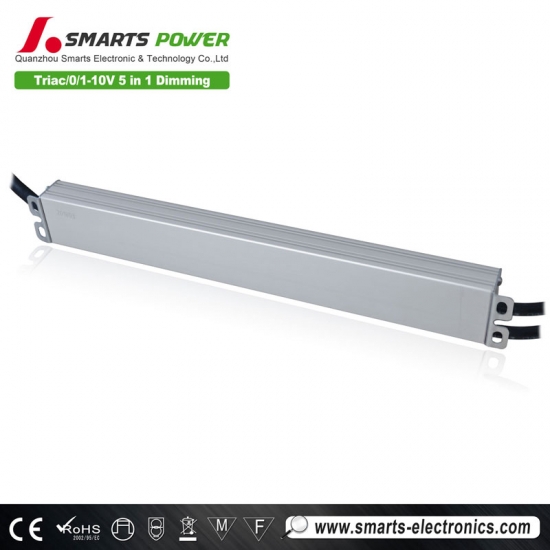

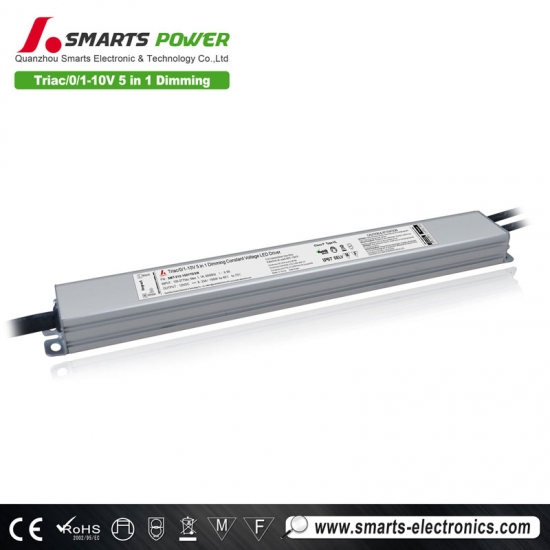

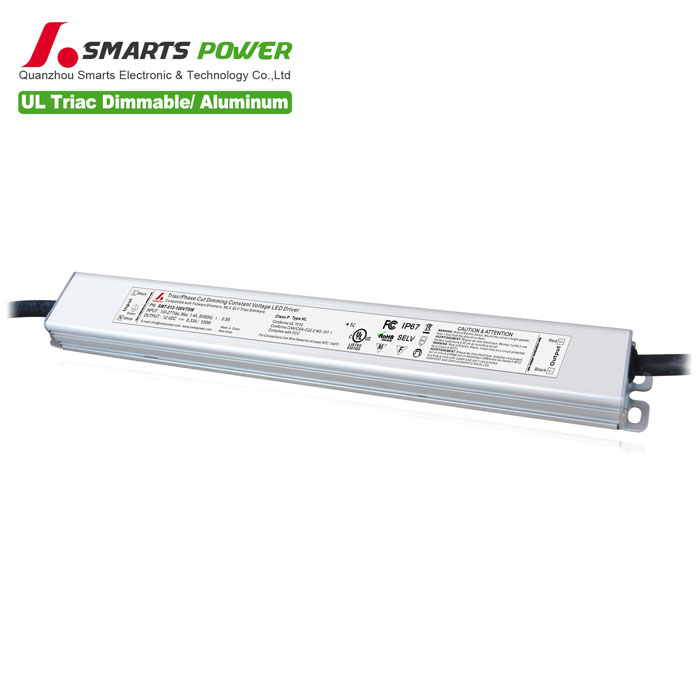

This 200-240vac input voltage range triac & 0 10v dimmable 100W led driver has built-in active PFC function, constant voltage working mode, with ultra-low load requirements, able to work perfectly under 10-100% load. 7 years warranty
Specifications
| model | SMT-012-100VTDSWH | SMT-024-100VTDSWH | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Tolerance | ±0.5 | ||
| Rated current | 8.33Amp | 4.16Amp | |
| Rated power | 100W | 100W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±2% | ||
| Input | Voltage Range | 200-240VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor(Typ.)@ full load | PF≥0.99/230VAC | ||
| THD(Typ. ) @ full load | < 10% | ||
| Efficiency(Typ.)@ full load | 85% | 87% | |
| AC Current(Max.) | 0.8A | 0.8A | |
| Inrush Current (Typ.) | 72A,50%,116us | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ | ||
| Protection Class | I | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 EN62493 IP67 | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH | ||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||
| Others | Net Weight | 0.55Kg | |
| Dimension | 330*32*23mm(L*W*H) | ||
| packing | 360*270*175mm/ 30pcs /CTN G.W.: 17.5KG/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
 |
 |
 |
 |

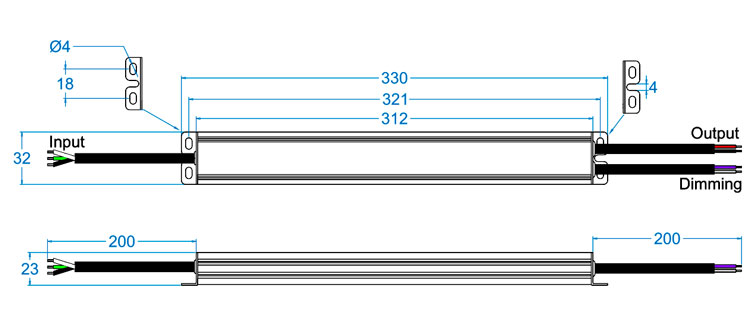

Mechanical Specification
Input cable 3*1.0mm²,the green/yellow cable to (FG), "Brown" to L ,and "Blue" to N of Mains AC
Output cable 2*1.0 mm²: "Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
Dimming cable 2*0.75 mm²: DIM (+) Blue to 0/1-10V dimmer signal(+ ),DIM (-) white to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
Dimming Operation and Connecting Diagram
TRIAC/Phase cut dimming：
The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Matching with leading edge and trailing edge Triac dimmer or lighting system.
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
0-10V/1-10V/Potentiometer/10V PWM：
Compatible Lighting Type
Ultra-thin size 5 in 1 dimmable constant voltage 100W LED driver adopts aluminum shell design, waterproof grade ip67, good heat dissipation, suitable for installation in a well-ventilated place, avoid direct contact with heat source, ensure the LED driver can work normally
Related Products
|
This slim size triac dimmable led driver 100W constant voltage working mode has strong compatibility and can be well compatible with Leviton dimmer to achieve smooth
flicker-free dimming.
Mode: SMT-012-100VTSW intput voltage：100~277V AC Size：330*32*23mm （L*W*H）
Certification: UL
|
