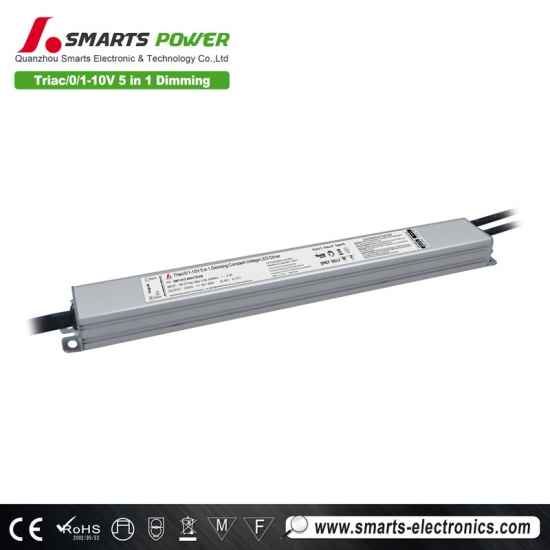

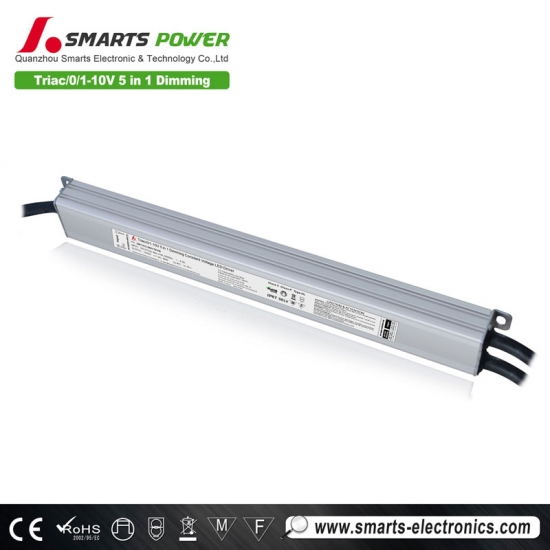

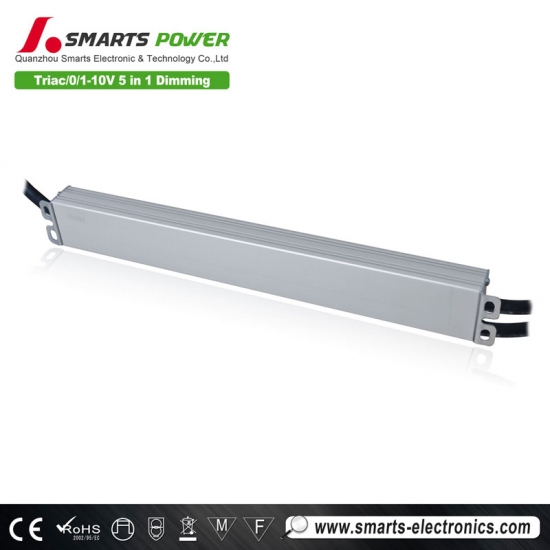

CE Listed 24v 60W triac & 0 10v dimmable constant voltage led power supply
This ultra-thin size dimmable 60W led power supply has constant voltage working mode, aluminum housing design, waterproof grade ip67, and good heat dissipation. It is suitable for outdoor small space lighting projects. 7 years warranty
Specifications
| model | SMT-012-060VTDSWH | SMT-024-060VTDSWH | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Tolerance | ±0.5 | ||
| Rated current | 5.0Amp | 2.5Amp | |
| Rated power | 60W | 60W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±2% | ||
| Input | Voltage Range | 200-240VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor ( Typ.) | PF≥0.96/230VAC | ||
| THD(Typ. ) @ full load | <20% | ||
| Full Load Efficiency(Typ.) | 83% | 86% | |
| AC Current(Typ.) | 0.5A | 0.5A | |
| Inrush Current(Typ.) | 57.6A,50%,128us | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ | ||
| Protection Class | I | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 EN62493 IP66 | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | EN55015 EN61000-3-2 EN61000-3-3 | ||
| EMC IMMUNITY | EN61000-4-2,3,4,5,6,11 EN61547 | ||
| Others | Weight | 0.45Kg | |
| Size | 300*32*20mm(L*W*H) | ||
| packing | 330*270*160mm/ 30pcs /CTN G.W.: 14.5KG/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
 |
 |
 |
 |

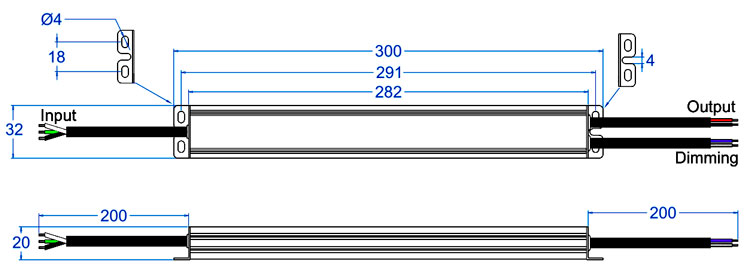

Mechanical Specification
Input cable 3*1.0mm²,the green/yellow cable to (FG), "Brown" to L ,and "Blue" to N of Mains AC
Output cable 2*1.0 mm²: "Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
Dimming cable 2*0.75 mm²: DIM (+) Blue to 0/1-10V dimmer signal(+ ),DIM (-) white to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
Dimming Operation and Connecting Diagram

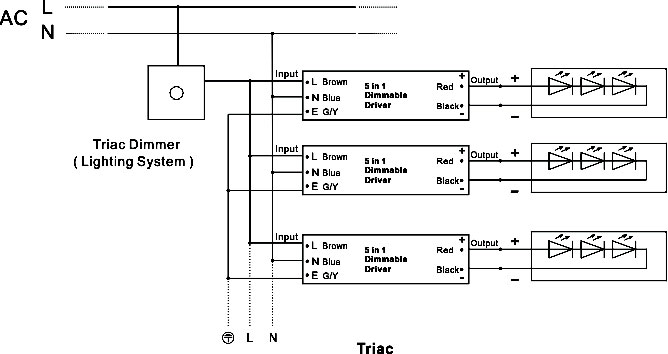

TRIAC/Phase cut dimming：
The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Matching with leading edge and trailing edge Triac dimmer or lighting system.
Please try to use dimmers with power at least 1.5 times as the output power of the driver.

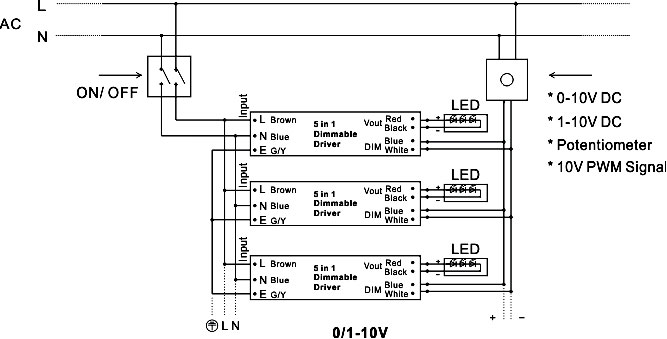

0-10V/1-10V/Potentiometer/10V PWM：
Compatible Lighting Type
Smarts Power's hot-selling product 5 in 1 dimmable Constant voltage LED power supply has ultra-thin design and good heat dissipation. It has short circuit/overload/over-temperature protection functions. It is suitable for outdoor narrow space projects, such as outdoor building lighting projects.
Related Products
|
aluminum housing design, waterproof grade IP67, in line with global safety lighting regulations,
with 7-year warranty

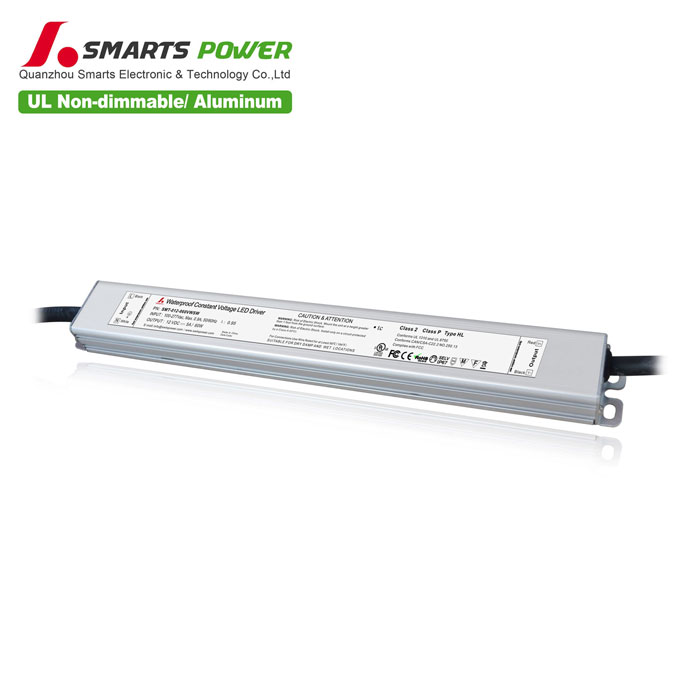

Mode: SMT-012-060VWSW intput voltage：100~277V AC Efficiency > 87% Size：260*32*20mm （L*W*H）
