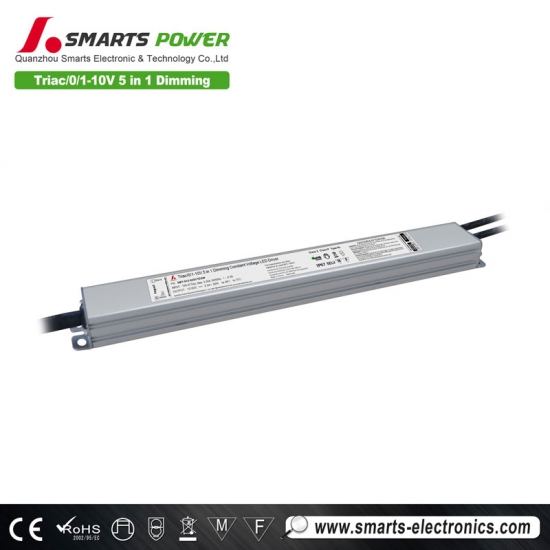

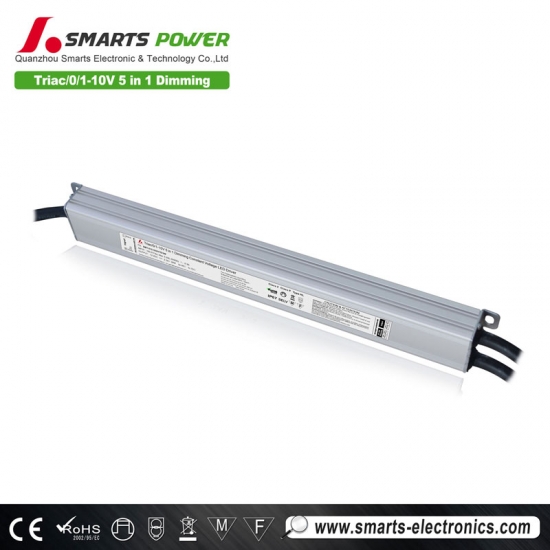

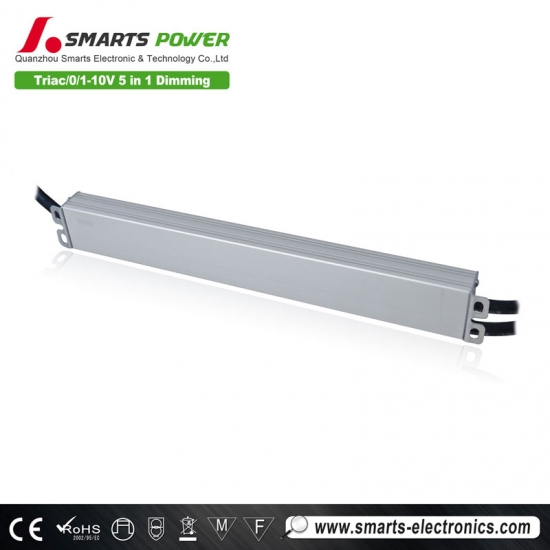

slimline triac & 0 10v dimmable 12/24V 30w LED power supply for led strip
This ultra-thin 30W 5 in 1 dimmable LED driver has built-in active PFC function, with an efficiency of up to 83%, a dimming range of 0~100%, and ultra-low load requirements, and can work perfectly under 10-100% load.
Specifications
| model | SMT-012-030VTDSWH | SMT-024-030VTDSWH | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Tolerance | ±0.5 | ||
| Rated current | 2.5Amp | 1.25Amp | |
| Rated power | 30W | 30W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±2% | ||
| ±1% | |||
| Input | Voltage Range | 200-240VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor ( Typ.) | PF≥0.96/230VAC | ||
| THD(Typ. ) @ full load | < 20% | ||
| Full Load Efficiency(Typ.) | 79% | 78% | |
| AC Current(Typ.) | 0.25A | 0.25A | |
| Inrush Current(Typ.) | 40.8A,50%,102us | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode,recovers automatically after fault condition is removed | |
| Over Load | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ | ||
| Protection Class | I | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 EN62493 IP66 | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | EN55015 EN61000-3-2 EN61000-3-3 | ||
| EMC IMMUNITY | EN61000-4-2,3,4,5,6,11 EN61547 | ||
| Others | Weight | 0.35Kg | |
| Size | 260*32*20mm(L*W*H) | ||
| packing | 290*270*160mm/ 30pcs /CTN G.W.: 11KG/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
 |
 |
 |
 |

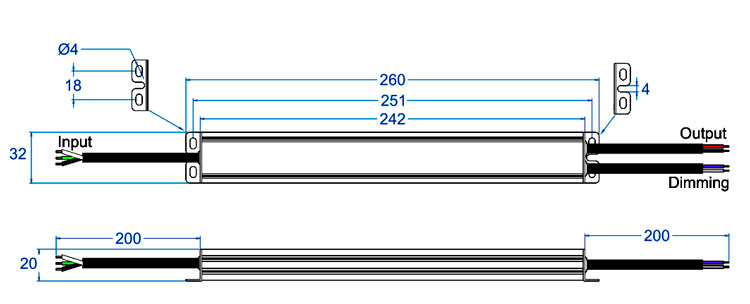

Mechanical Specification
Input cable 3*1.0mm²,the green/yellow cable to (FG), "Brown" to L ,and "Blue" to N of Mains AC
Output cable 2*1.0 mm²: "Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
Dimming cable 2*0.75 mm²: DIM (+) Blue to 0/1-10V dimmer signal(+ ),DIM (-) white to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
Dimming Operation and Connecting Diagram
TRIAC/Phase cut dimming：
The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Matching with leading edge and trailing edge Triac dimmer or lighting system.
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
0-10V/1-10V/Potentiometer/10V PWM：
Compatible Lighting Type
Ultra-thin 30W constant voltage LED power supply has a compact body, easy and quick installation, short circuit/overload/overvoltage protection function, smooth dimming process without flicker, suitable for outdoor small airborne lighting projects. For example, advertising light signs, with LED lighting module installation and use.
