Non-dimmable LED Driver

waterproof 12v 36W triac & 0 10v constant voltage dimming flicker free led driver power supply

36W 12v/24v constant voltage triac & 0 10v dimmable led driver 200-240vac input voltage range, mainly sold to Europe, in compliance with global safety lighting regulations, 7 years warranty
  • item no.:

    SMT-012-036VTDSWH
  • brand:

    SMARTS
  • Input Voltage:

    200-240VAC
  • Output Voltage:

    12VDC & 24VDC
  • Output Current:

    3A & 1.5A
  • Working Mode:

    Constant Volatge DALI Dimmable
  • Certification:

    CE
  • Warranty:

    7 Years
inquiry now
product details

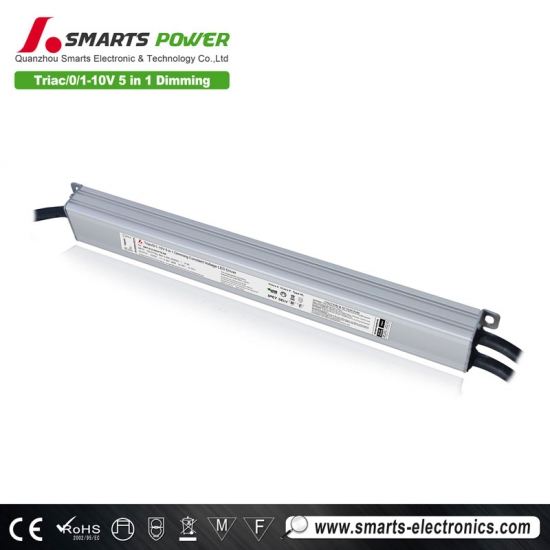

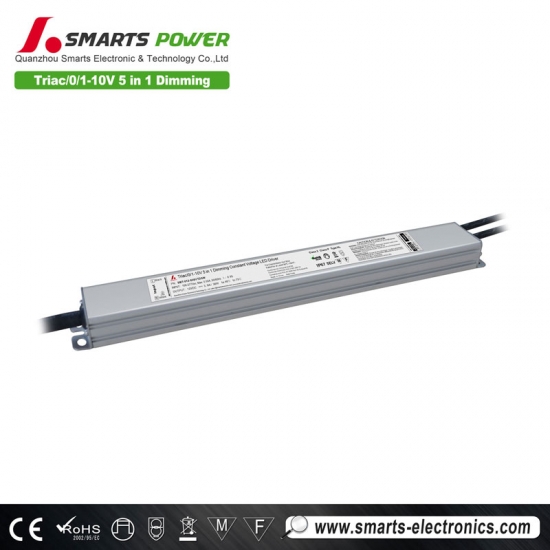

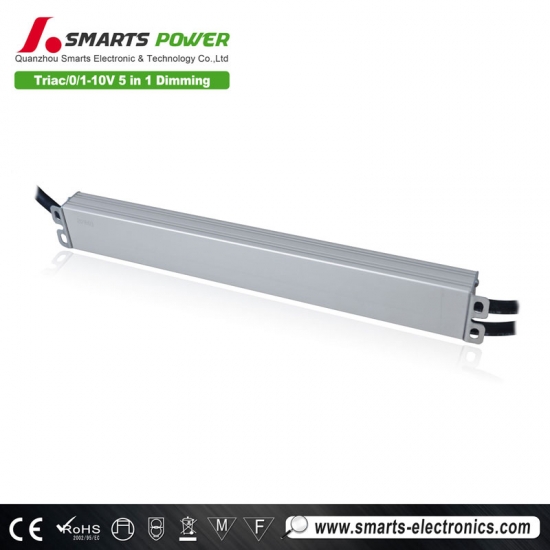

waterproof 12v 36W triac & 0 10v constant voltage dimming flicker free led driver power supply

5 in 1 dimmable LED power supply has built-in active PFC function, constant voltage working mode, working efficiency up to 82%. Strong compatibility, can be well compatible with most triac dimmer and 0 10v dimmer on the market. For example, Lutron dimmer


  Specifications

model SMT-012-036VTDSWH SMT-024-036VTDSWH
Output DC Voltage 12VDC 24VDC
Voltage Tolerance ±0.5
Rated current 3.0Amp 1.5Amp
Rated power 36W 36W
Voltage Regulation ±0.5%
Load Regulation ±2%
Input Voltage Range 200-240VAC
Frequency Range 47 - 63Hz
Power Factor ( Typ.) PF≥0.96/230VAC
Full Load Efficiency(Typ.) < 20%
THD(Typ. ) @ full load 80% 79%
AC Current(Typ.) 0.3A 0.3A
Inrush Current(Typ.) 40.8A,50%,102us
Leakage current <0.5mA
Protection Short Circuit Hiccup mode,recovers automatically after fault condition is removed
Over Loading ≤120% Hiccup mode,recovers automatically after fault condition is removed
Over temperature 100℃±10℃
  I
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20 - 95%RH,non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1  EN61347-2-13  EN62493   IP66
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH
EMC EMISSION EN55015    EN61000-3-2    EN61000-3-3
EMC IMMUNITY EN61000-4-2,3,4,5,6,11      EN61547
Others Weight 0.35Kg
Size 360*32*20mm(L*W*H)
packing 290*270*160mm/   30pcs /CTN    G.W.: 11KG/CTN
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



  Mechanical Specification




Input cable 3*1.0mm²,the green/yellow cable to (FG), "Brown" to L ,and "Blue" to N of Mains AC
Output cable 2*1.0 mm²: "Red" (+) to  LED Positive side (+) , "Black"(-)  to LED Negative side (-).
Dimming cable 2*0.75 mm²: DIM (+) Blue  to 0/1-10V dimmer signal(+ ),DIM (-) white to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

  Derating Curve

UL led driver dimmable 120v

 Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.


  Dimming Operation and Connecting Diagram

TRIAC/Phase cut dimming:
The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Matching with leading edge and trailing edge Triac dimmer or lighting system.
Please try to use dimmers with power at least 1.5 times as the output power of the driver.

 0-10V/1-10V/Potentiometer/10V PWM:

  Compatible Lighting Type

5 in 1 dimmable led power supply has a dimming range of 0-100% and has ultra low load requirements, and can work perfectly at 10-100% load. The dimming effect is as good as Magnitude Lighting's 36W dimmable led driver
