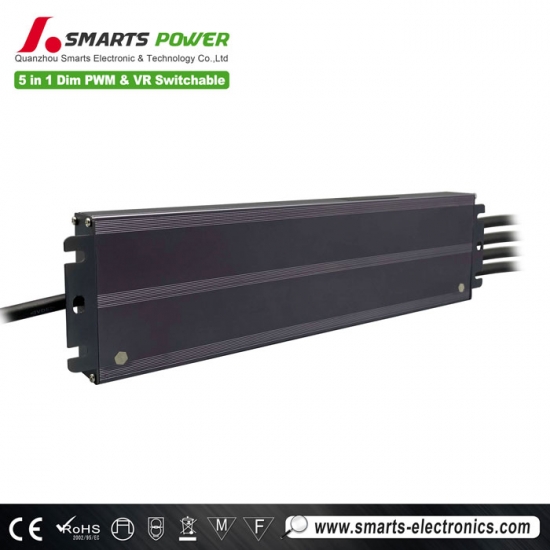

waterproof 192w 24v/48V constant voltage 5 in 1 dimmable led driver for outdoor
This 5 in 1 dimmable 24v/48v 192W led power supply has PWM and VR mode switching functions. The dimming range is between 0-100%. It has ultra-low load requirements and can work perfectly at 15%-100% load. It complies with global safety lighting regulations.
Specification
| Model | SMT-24192-2C-VTD-A | SMT-48192-2C-VTD-A | |
| Certificate | UL / FCC / Type HL/ Class P / Class 2 / SELV / CE / RoHS / REACH | ||
| Output | DC Voltage | 24V | 48V |
| Voltage Tolerance | ±0.5% | ±1% | |
| Voltage Regulation | ≤0.5% | ||
| Rated current | 2*4A | 2*2A | |
| Rated power | 192W(2*96W) | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) @ full load | ≥0.99@120VAC ≥0.94@277VAC | ||
| THD(Typ. ) @ full load | <20%@120VAC &277VAC | ||
| Efficiency(Typ.) @ full load |
≥90%@120VAC ≥92%@277VAC |
≥90.5%@120VAC ≥92.5%@277VAC |
|
| AC Current (Max.) | 2.2A | ||
| Standby power | ≤0.5W | ||
| Inrush Current (Typ.) | 23A,1.3ms@50%Ipeak120VAC;49A,960us@50%Ipeak277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after coolingg | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Ambient TEMP. | 45℃ | ||
| Case TEMP. | 90℃ | ||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No. 250.13 (US) | |
| Withstand voltage | I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | ||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | ||
| EMC Emission | FCC 47 CFR Part 15, Subpart B (US) | ||
| Surge Immunity Test | Different mode: 2KV, Common mode:4KV | ||
| Others | Net Weight | 1.45KG | |
| Dimension | 232*78.1*25.3mm(L*W*H) | ||
| Packing | 10pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | ||
| 2. Under low input voltage, derating output is required to ensure a long life. | |||
| 3. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSl C82.77-10. | |||
 |
 |
 |
 |

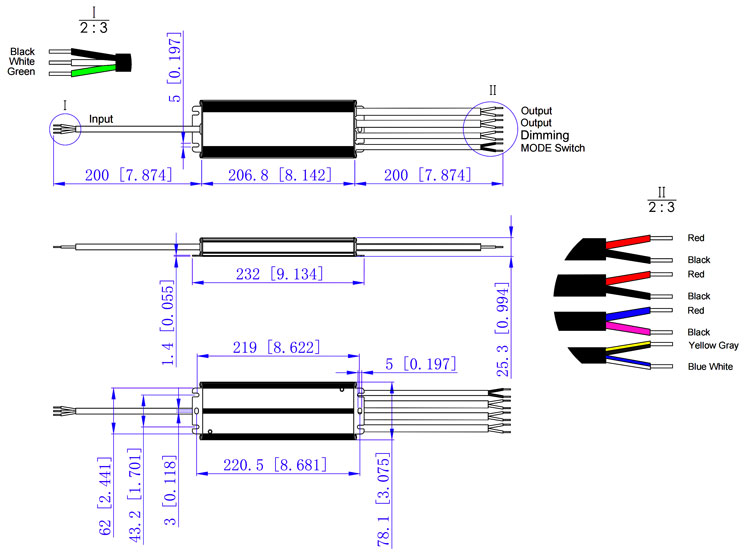

Mechanical Specification
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 3 |
| 13A | 4 | |
| 16A | 6 | |
| 20A | 7 | |
| 25A | 9 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 8 |
| 13A | 12 | |
| 16A | 15 | |
| 20A | 19 | |
| 25A | 24 | |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customized.
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
2. a phase /Triac dimmer or lighting system.
3. Working with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers or light system.
4. Min. loading is about 30%
5. Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Related Products
|

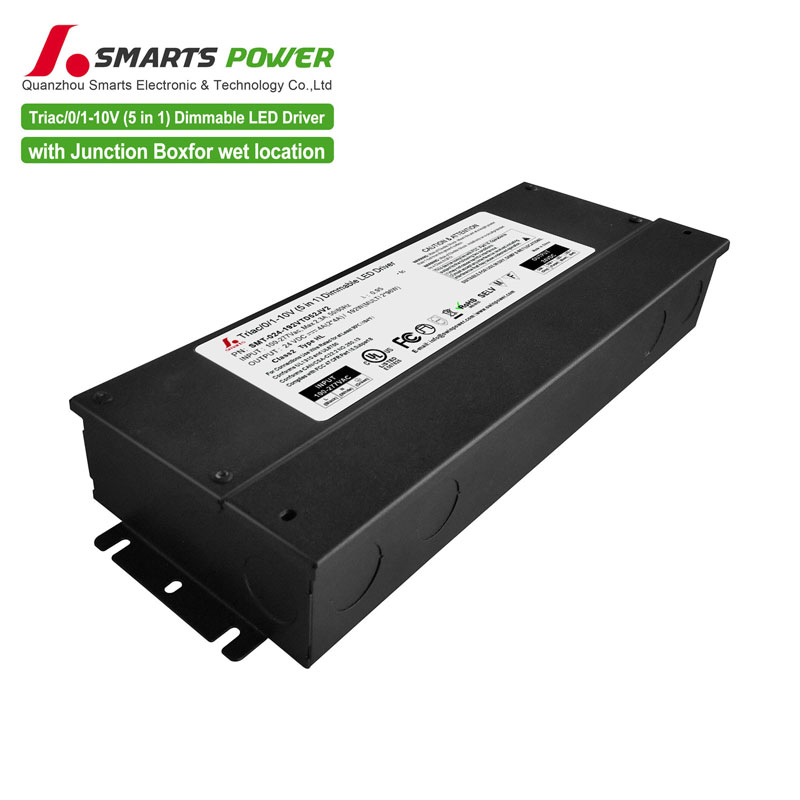

triac & 0 10v dimmable led power supply integrated with junction box. Metal housing, good heat dissipation, easy and quick installation, suitable for indoor dimming led lighting project installation and use. 7 years warranty
