100-277VAC 96w 5 in 1 dimmable constant voltage led driver for led lighting

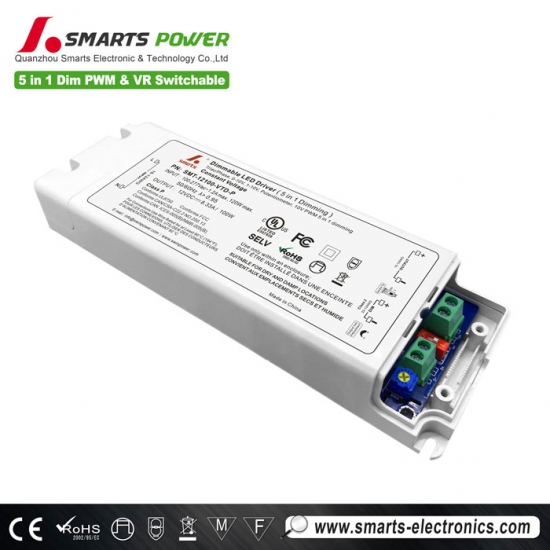

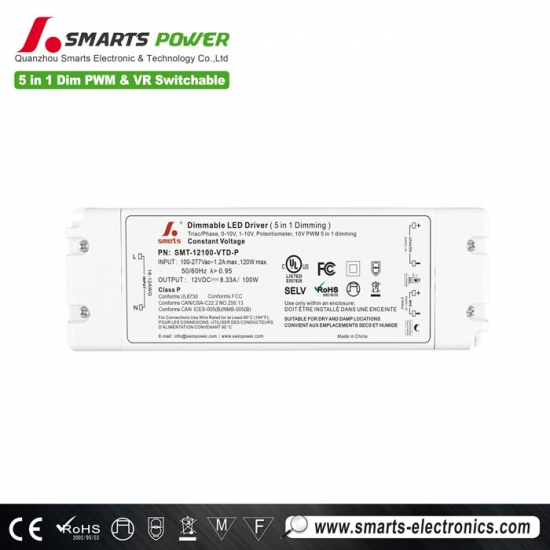

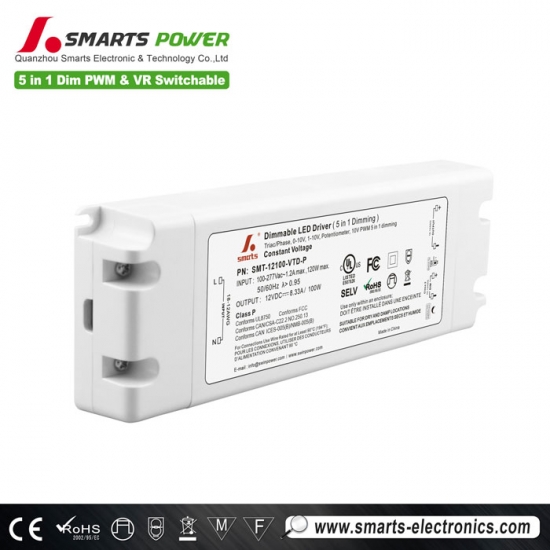

Smartspower 5 in 1 dimmable led power supply has built-in PFC function. Constant voltage working mode. Working efficiency up to 91%. Strong selective dimmer, compatible with most voltage 110-120vac and 277vac dimmers. 7 years warranty
Specification
| Model | SMT-12096-VTD-P | SMT-24096-VTD-P | SMT-36096-VTD-P | SMT-48096-VTD-P | |
| Certificate | UL / FCC / Class 2 / Class P / SELV / CE / RoHs / REACH | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Fine Voltage range | 12-13.5V | 24-26V | 36-38V | 48-50V | |
| Rated Current | 8A | 4A | 2.67A | 2A | |
| Current Tolerance | ±0.5V | ||||
| Rated Power | 96W | ||||
| Load Regulation | ≤3% | ||||
| Voltage Regulation | ≤0.5% | ||||
| Dimming Mode | PWM & VR two modes for choice ON for PWM mode while 1 for VR mode | ||||
| Power off till three seconds, then power-on for mode switch | |||||
| Input | Voltage Range | 100-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor @ full load | ≥0.95 | ||||
| Efficiency @ full load |
≧86.5%@120VAC ≧90%@277VAC |
≧88%@120VAC ≧91.5%@277VAC |
≧86%@120VAC ≧89.5%@277VAC |
≧87%@120VAC ≧90.5%@277VAC |
|
| AC Current (Max.) | 1.2A | ||||
| THD(Typ.)@full load | ≤20%@ full load | ||||
| Standby power(max.) | ≤0.5W | ||||
| Inrush Current (Typ.) | 51A@50%Ipeak 208us @120VAC,118A@50%Ipeak 452us @277VAC. | ||||
| Leakage current | <0.5mA | ||||
| Protection | Short Circuit | Hiccup or block mode,re-power onto recover after fault condition removed | |||
| Over Load | ≤120% Hiccup for the electronic load CR while the lamp is Constant current or constant power mode,auto-recovery after fault condition removed | ||||
| Over Temperature | 100℃±10℃at shell surface temp.shut down o/p voltage and automatically recover after cooling | ||||
| Environment | Working TEMP | -40~+60℃ (see below derating curve) | |||
| Working Humidity | 20 -90%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | UL8750 | |||
| EMC Emission | FCC Part 15 Subpart B | ||||
| EMC Immunity | FCC/ICES do not request this test (US) | ||||
| Withstand voltage | I/P-O/P:1.88KVAC (US) | ||||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||||
| Harmonic test standard | IEC/EN 61000-3-2 | ||||
| Stroboscopic test standards | IEEE 1789 | ||||
| Lightning surge | Line to line: 2KV | ||||
| Others | Net Weight | 0.36Kg | |||
| Dimension | 178*61*24mm(L*W*H) | ||||
| Notes | Packing | 290*215*140mm 20pcs /CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2. Under low input voltage, derating output is required to ensure a long life. | |||||
 |
 |
 |
 |

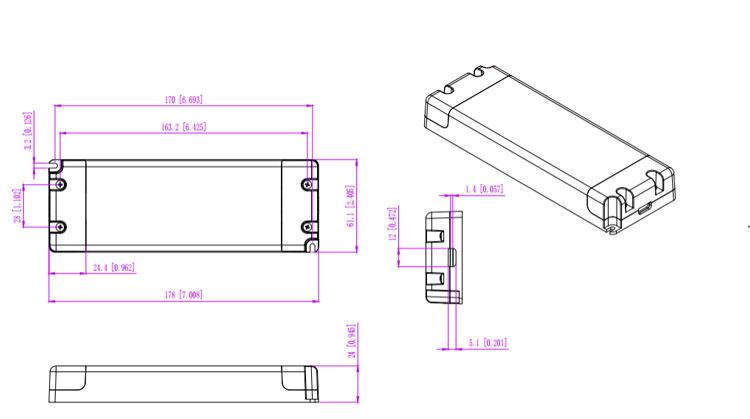

Mechanical Specification
1. Input cable 3*18AWG, the Green cable to (G), Black cable to L and White cable to N of Mains AC.
2. Output cable 2*16AWG, Red cable (+) to LED Positive side (+) , Black cable (-) to LED Negative side (-).
3. Dimming cable 2*18AWG, Purple cable DIM (+) to 0/1-10V dimmer signal(+ ), Pink cable DIM (-) to 0/1-10V dimmer signal (-).
4. Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+”, or other incorrect connection.
5. Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Warm tips:
Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ² For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other
dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer
or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3. Min. loading is about 10%
4. Please try to use dimmers with power at least 2 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Derating Curve
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading .
Related Products

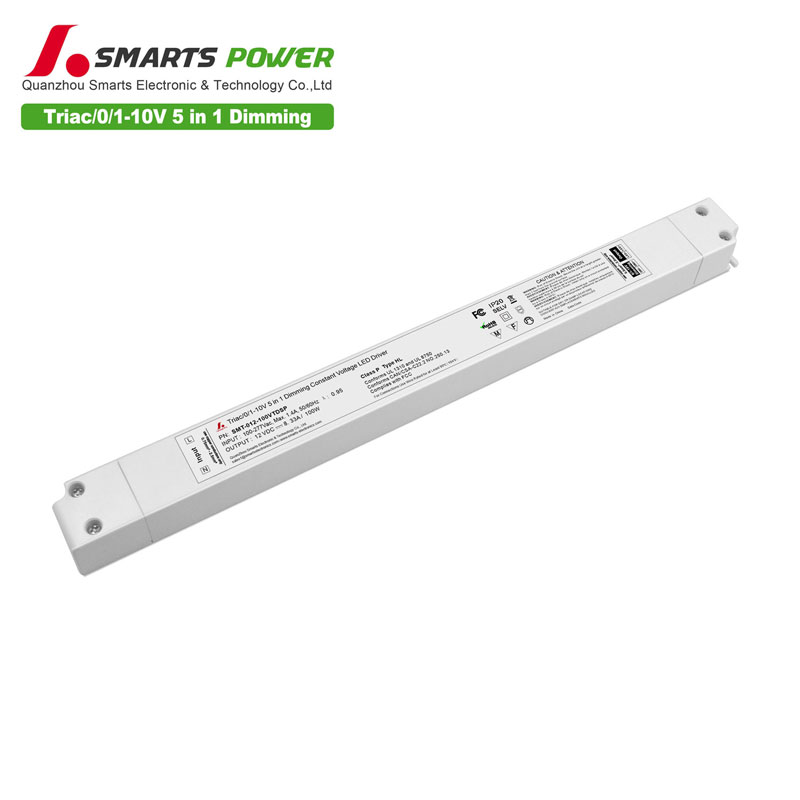

triac & 0 10v dimmable 96W led power supply constant voltage working mode. Ultra-thin size, plastic shell design. Suitable for indoor led lighting project installation.
