waterproof ip67 12v/24v/48v 120w triac & 0 10v dimmable led strip light driver for outdoor

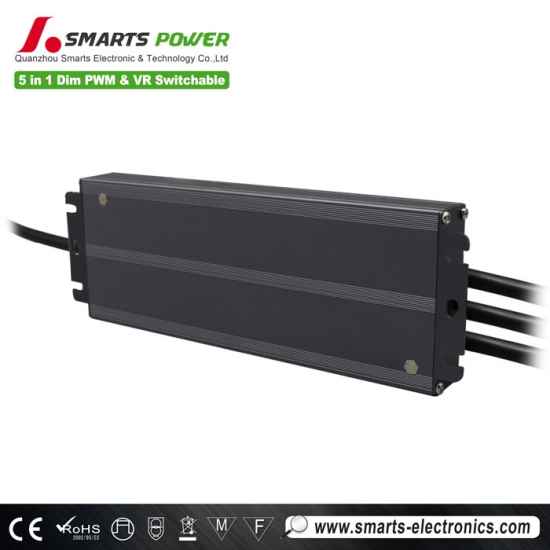

This 5 in 1 dimmable LED driver has a constant voltage operation mode and built-in active PFC function. It has short circuit/over temperature/overload protection. The dimming range is 0.100% ultra-deep dimming. UL certification, in line with global safety lighting regulations. 7-year warranty
Specification
| Model | SMT-12120-VTD-A | SMT-24120-VTD-A | SMT-48120-VTD-A | |
| Certificate | UL / cUL / FCC / Class P //Type HL/ICES-005 | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Voltage Regulation | ≤0.5% | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤4% | ≤2% | ≤2% | |
| Rated current | 10A | 5A | 2.5A | |
| Rated power | 120W | |||
| Voltage Ripple | 400mVp-p | 296mVp-p | 176mVp-p | |
| Overshoot voltage | <3%(full load) | |||
| Output mode selection | When the blue&white wire and the yellow&gray wire at the output terminal are short-circuited, it indicates the Pulse-Width Modulation (PWM) mode. When they are disconnected, it indicates the Voltage Regulation (VR) mode of direct current voltage modulation. | |||
| Switching the output mode requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect. | ||||
| Input | Voltage Range | 100-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load |
>0.98@120VAC >0.96@277VAC |
>0.98@120VAC >0.96@277VAC |
>0.98@120VAC >0.96@277VAC |
|
| THD(Typ. ) @ full load | <15%@120V <15%@277V | |||
| Efficiency(Typ.) @ full load |
≥88.5%@120VAC ≥91.0%@277VAC |
≥89.7%@120VAC ≥92.7%@277VAC |
≥89.8%@120VAC ≥92.4%@277VAC |
|
| AC Current (Max.) | ≤1.25A @120VAC ≤0.52A@277VAC | |||
| Standby power | ≤0.5W | |||
| Inrush Current (Typ.) | 51A,208us@50%Ipeak 120VAC 118A,452us@50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, can be automatically restored after abnormal removal | ||
| Over Load | ≥120%,Constant - Current Mode, automatic recovery after exception | |||
| Over temperature | When the ambient temperature exceeds 55℃ ±5℃, the output is turned off | |||
| Environment | Working TEMP. | -40~+40℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:0.5KVac | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | |||
| EMC Immunity | FCC/ICES do not request this test | |||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5 | |||
| Others | Net Weight | 0.56KG | ||
| Dimension | 188*61.4*25.5mm(L*W*H) | |||
| Packing | 415*230*170mm 20 pcs / CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||||
|
4. Default states: The output mode is VR output by default. The dimming curve is a gamma2.2 curve. |
||||
| 5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
 |
 |
 |
 |

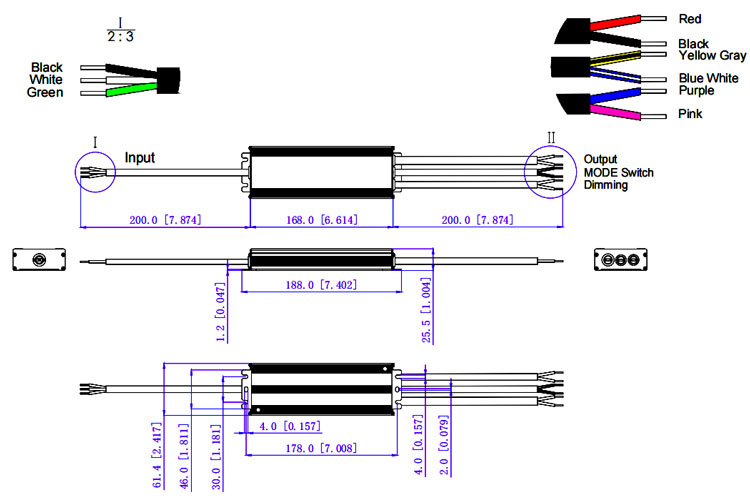

Mechanical Specification
| American wire gauge | |
| CA7 | |
| Input wire | Black(L) White(N) Green(G) (3*18 AWG) |
| Output wire | 12V:Red(V+) Black(V-) (2*16 AWG) |
| 24V:Red(V+) Black(V-) (2*18 AWG) | |
| Dimming wire | Purple(D+) Pink(D-) (2*18AWG) |
| Function switching wire | Yellow Gray and Blue White.(2*18 AWG) |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customized.
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers or light system.
3. Min. loading is about 20%
4. Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Related Products

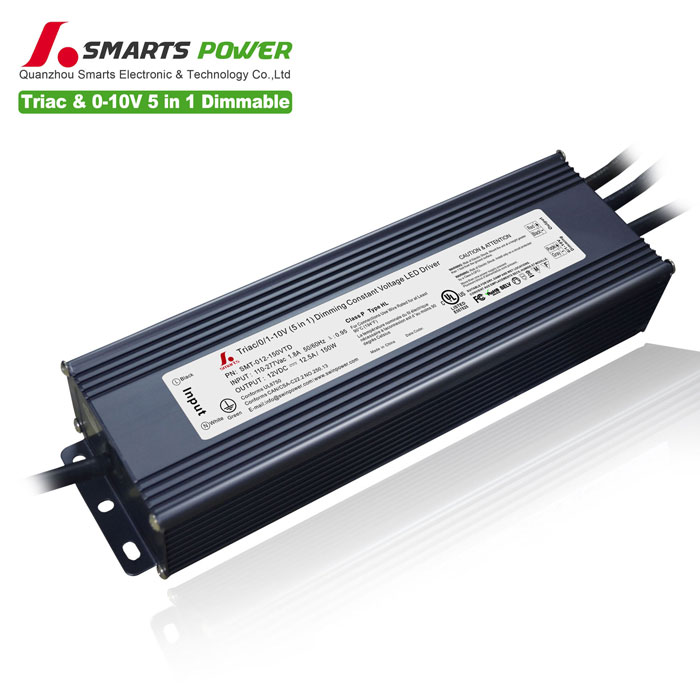

Smartspower hot selling product 150w triac & 0 10v dimmable led power supply Aluminum housing design. Waterproof grade ip67. Suitable for outdoor wet space lighting project installation. Good heat dissipation. With 7 years warranty
Mode：SMT-012-150VTD intput voltage：100-277vac
Size : 256*78*47MM |
