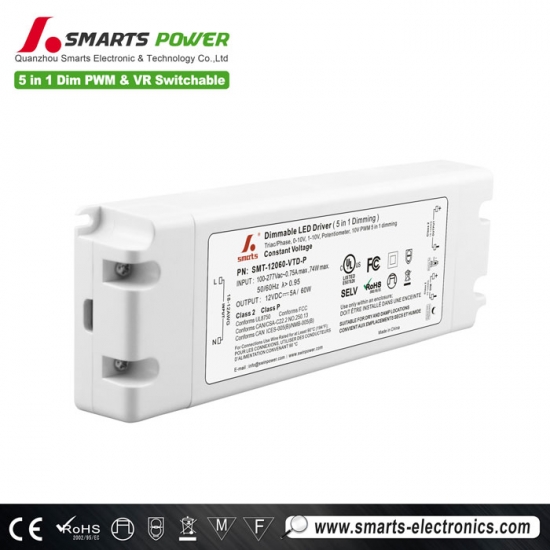

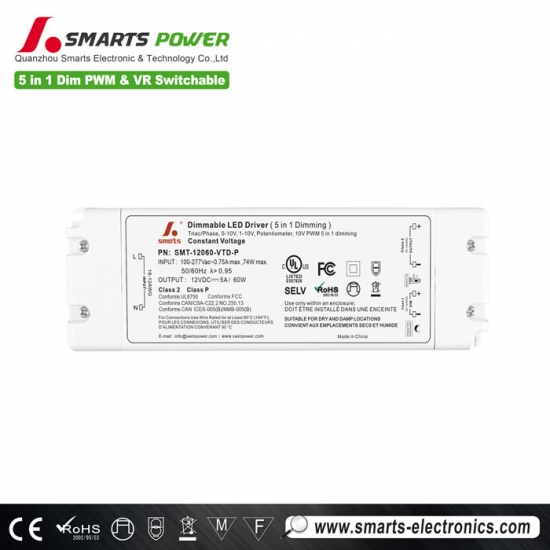

100-277vac triac & 0 10v dimmable led strip lights driver power supply 60w 12v for indoor
Triac&0-10V Dimming (5 in 1)Constant Voltage LED driver 60W 12v/24v/36v/48v Built-in rocker switch to switch between PWM and voltage reduction output modes. With short circuit/over temperature/overload protection. 7 years warranty
Specification
| Model | SMT-12060-VTD-P | SMT-24060-VTD-P | SMT-36060-VTD-P | SMT-48060-VTD-P | |
| Certificate | UL / cUL / FCC / Class 2 / Class P / SELV / CE / ROHS/ REACH | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Fine-tune voltage range | 12-13.5V | 24-26V | 36-38V | 48-50V | |
| Rated Current | 5A | 2.5A | 1.67A | 1.25A | |
| Current Tolerance | ±0.5V | ||||
| Rated Power | 60W | ||||
| Load Regulation | ≤2% | ≤1% | ≤1% | ≤1% | |
| Voltage Regulation | ≤0.5% | ||||
| Dimming mode selection | PWM & VR two modes for choice ON for PWM mode while 1 for VR mode | ||||
| Power off till three seconds, then power-on for mode switch | |||||
| Input | Voltage Range | 100-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor @ full load |
≥0.98@120VAC ≥0.95@277VAC |
≥0.98@120VAC ≥0.95@277VAC |
≥0.98@120VAC ≥0.95@277VAC |
≥0.98@120VAC ≥0.95@277VAC |
|
| Efficiency @ full load |
≥82%@120VAC ≥84%@277VAC |
≥82%@120VAC ≥84%@277VAC |
≥82%@120VAC ≥84%@277VAC |
≥83%@120VAC ≥85%@277VAC |
|
| AC Current (Max.) | ≤0.8A | ||||
| THD(Typ.) @full load | ≤20%@ 120VAC ≤20%@ 277VAC | ||||
| Lightning surge | Line to line: 2KV | ||||
| Inrush Current (Typ.) | 16A, 50%Ipeak 232us @120VAC 36A, 50% Ipeak 248us @277VAC | ||||
| Leakage current | ≤0.5mA | ||||
| Protec-tion | Short Circuit | Hiccup or Constant current mode, re-power onto recover after fault condition removed | |||
| Over Load | ≥120% Constant current (limited power) mode, auto-recovery after fault condition removed | ||||
| Over Temperature | Shell surface temp.100℃±10℃shut down o/p voltage and automatically recover after cooling | ||||
| Environ-ment | Working TEMP | -40~+60℃ (see below derating curve) | |||
| Working Humidity | 20 -90%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | UL8750 UL1310 (US) | |||
| EMC Emission | EN55015 EN61000-3-2,3(≥50% load) FCC Part 15 Subpart B (US) | ||||
| EMC Immunity | FCC/ICES do not request this test (US) | ||||
| Withstand voltage | I/P-O/P:1.88KVAC (US) | ||||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||||
| Stroboscopic test | IEEE 1789 | ||||
| Others | Net Weight | 0.36Kg | |||
| Dimension | 178*61*24mm(L*W*H) | ||||
| Packing | 290*215*140mm 20pcs /CTN | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2. Under low input voltage, derating output is required to ensure a long life. | |||||
 |
 |
 |
 |

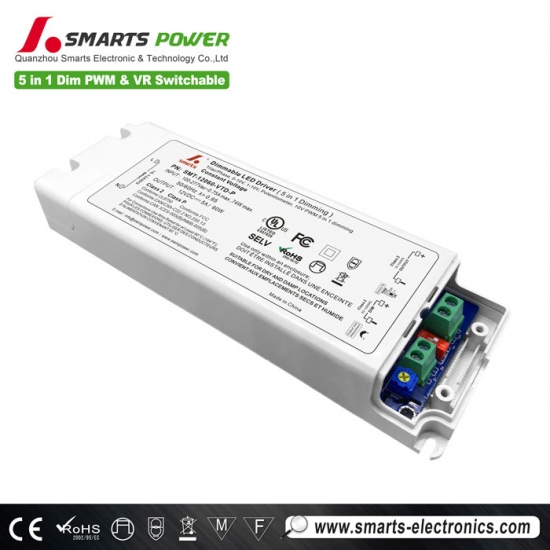

Mechanical Specification
1. Input cable 3*18AWG, the Green cable to (G), Black cable to L and White cable to N of Mains AC.
2. Output cable 2*16AWG, Red cable (+) to LED Positive side (+) , Black cable (-) to LED Negative side (-).
3. Dimming cable 2*18AWG, Purple cable DIM (+) to 0/1-10V dimmer signal(+ ), Pink cable DIM (-) to 0/1-10V dimmer signal (-).
4. Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+”, or other incorrect connection.
5. Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Warm tips:
Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ² For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other
dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer
or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3. Min. loading is about 10%
4. Please try to use dimmers with power at least 2 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Derating Curve
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading .
Related Products

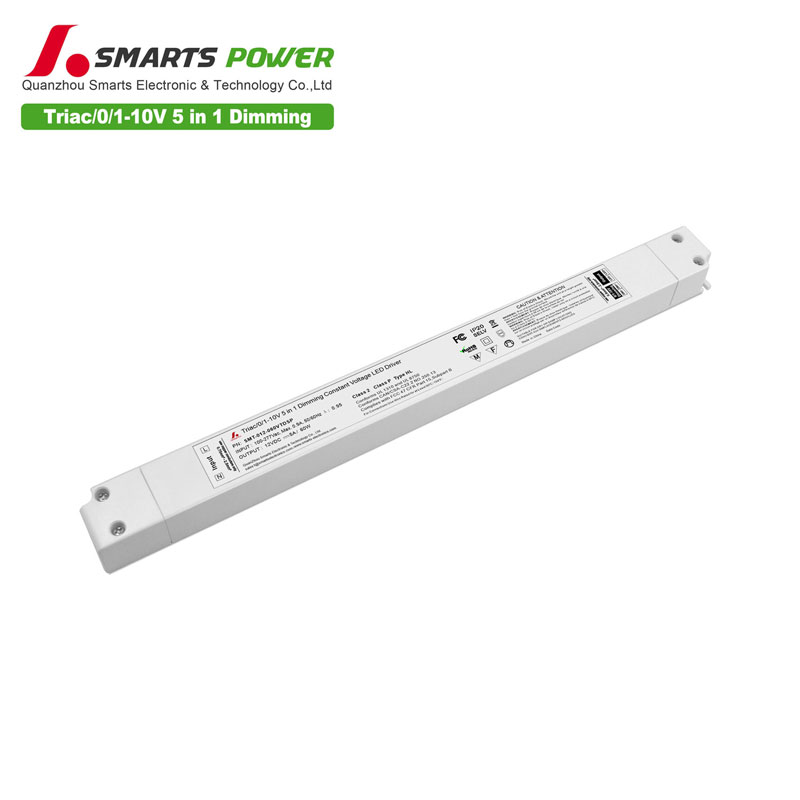

Ultra-thin size 60W triac & 0 10v dimmable led driver constant voltage working mode. Built-in PFC function. Dimming range between 0~100%. Plastic shell design, waterproof grade ip20. Comply with global safety lighting regulations.
