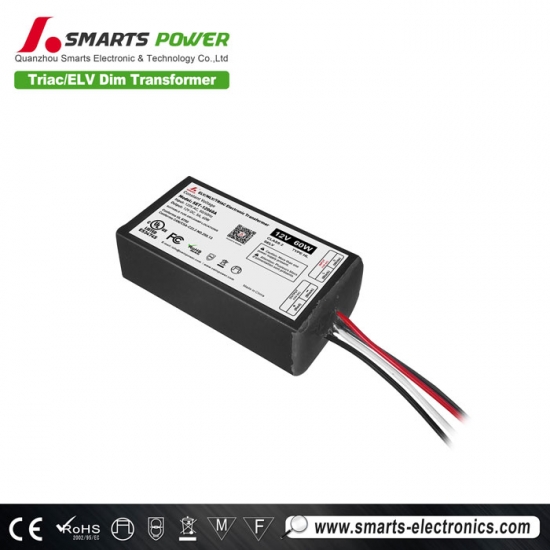

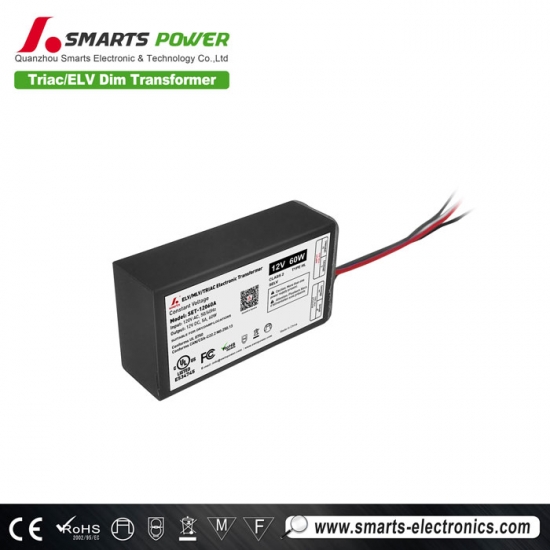

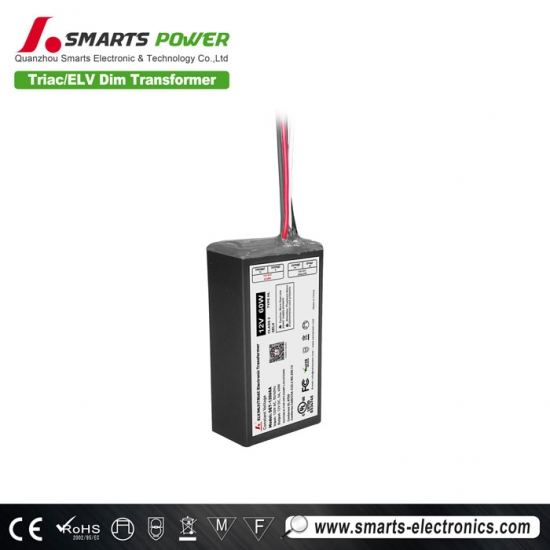

waterproof 12v 60w dimmable constant voltage led driver power supply manufacturers
triac/ ELV Dimming Aluminum case 60W electronic transformer Waterproof grade ip67 for outdoor lighting engineering use, UL certified, primarily sold in North America, with a three-year warranty
Specification
| Model Number | SET-12060A | SET-24060A |
| Output Type | ||
| Reted Power | 60W | 60W |
| Reted Voltage | 12V | 24V |
| Reted Current | 5A | 2.50A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 120V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 88%@120VAC | |
| Total Harmonic Distortion | THD< 20%(@100% load) | |
| Power Factor(typ.) | 0.98@120VAC | |
| AC Current(Typ.) | 0.58A | |
| Inrush Current(Typ.) | - | |
| Leakage Current | <0.5mA/ 120VAC | |
| PROTECTION | ||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, Class 2 | |
| Safety standards | I/P-O/P:1.88KVAC | |
| OTHERS | ||
| Dimension | 2.83x1.53x0.79 inch (L*W*H) | |
| Packing | - | |
 |
 |
 |
 |
Mechanical Specification
Dimming operation
Technology Curve:
Note: Load vs Ambient Temp. curve
Related Products
|

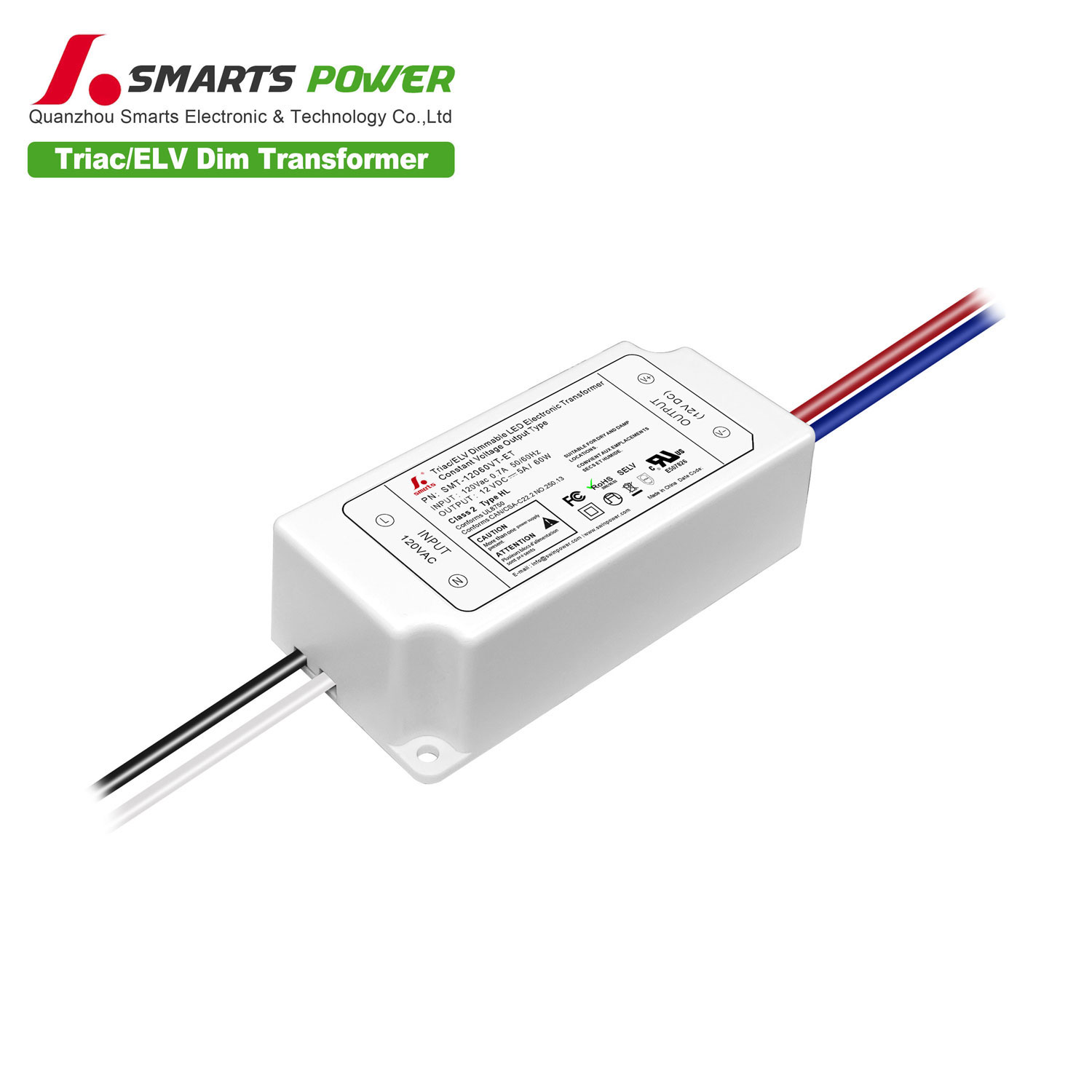

Plastic case 60W triac dimmable led driver waterproof rating ip20, easy to install, size only 84*40*25mm, suitable for installation in small indoor space
