Class 2 192W 24v triac dimmable led strip light electrical transformers for lights

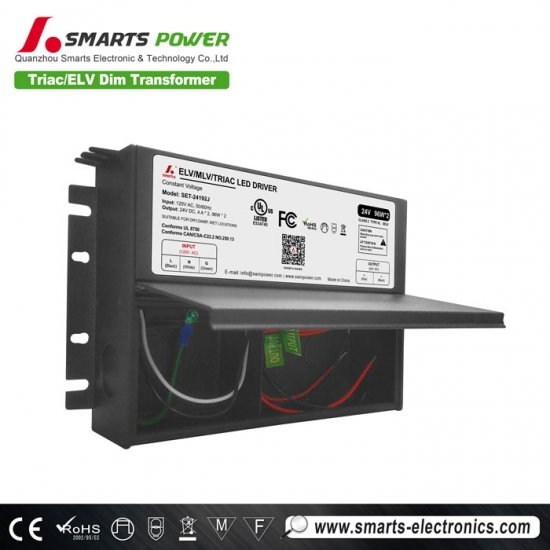

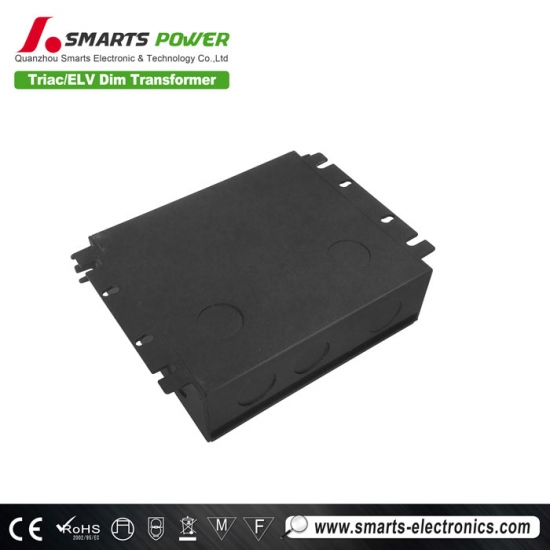

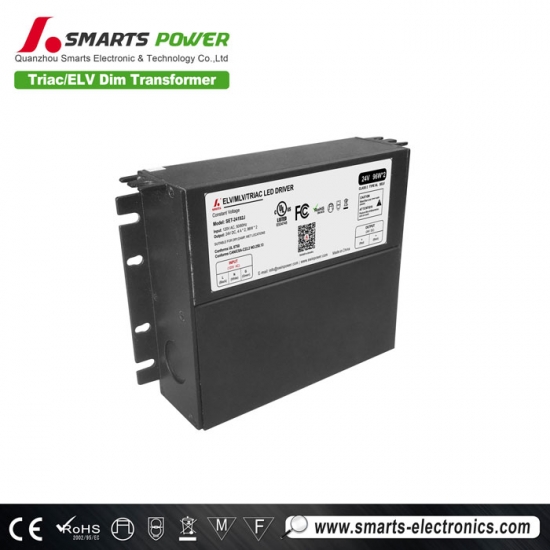

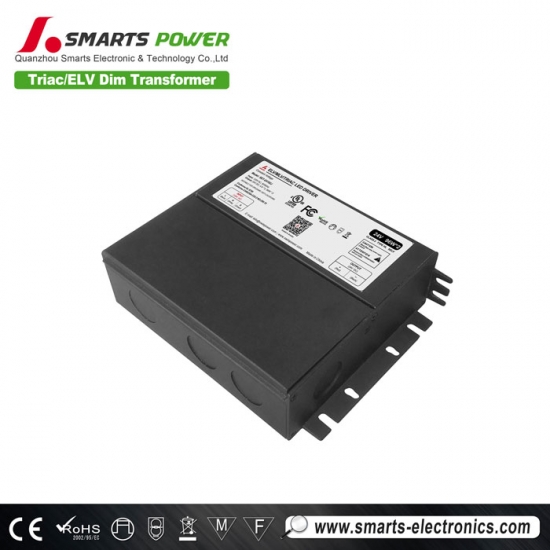

Smarts LED electronic transformer 24V,CLASS 2 UL certification, 192W power output, output voltage 120vac, power supply and terminal box integrated design, easy to install and use
Specification
| Model Number | SET-24192J |
| Output Type | |
| Reted Power | 96W * 2 |
| Reted Voltage | 24V |
| Reted Current | 4A * 2 |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 120V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 87%@120VAC |
| Total Harmonic Distortion | THD< 20%(@100% load) |
| Power Factor(typ.) | 0.98@120VAC |
| AC Current(Typ.) | 1.86A |
| Inrush Current(Typ.) | - |
| Leakage Current | <0.5mA/ 120VAC |
| PROTECTION | |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, Class 2 |
| Safety standards | I/P-O/P:1.88KVAC |
| OTHERS | |
| Dimension | 7.40x4.74x1.65 inch (L*W*H) |
| Packing | - |
 |
 |
 |
 |

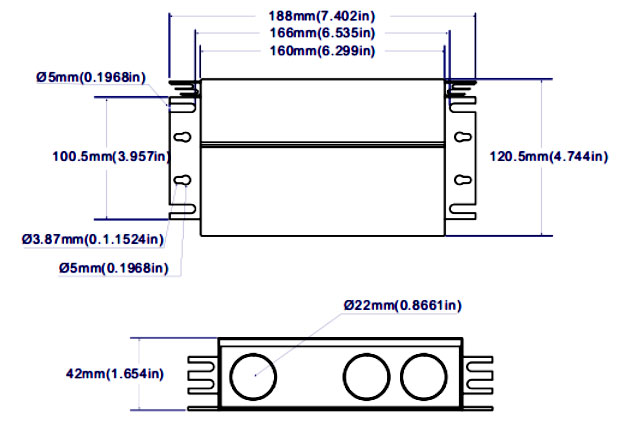

Mechanical Specification
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

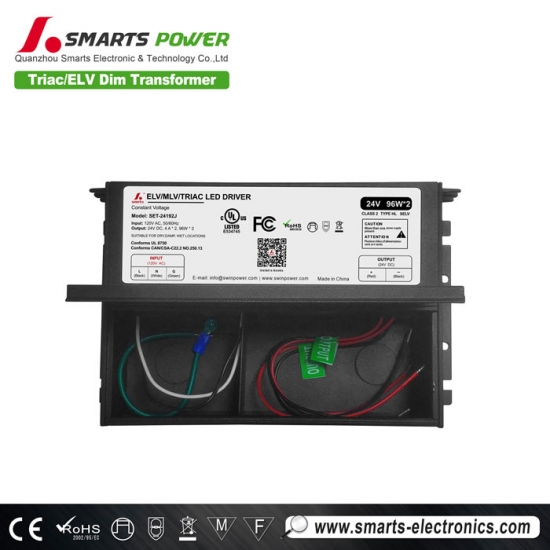

Connection Preparation
Input Connections & Grounding
Output Connections
Dimming operation
Related Products
|

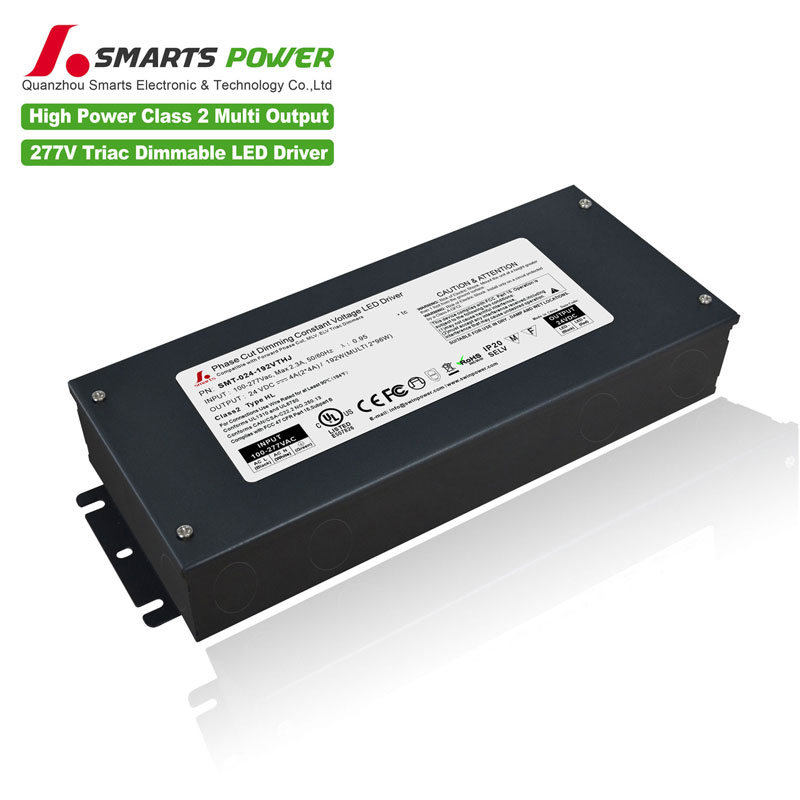

UL-certified led driver, triac dimming mode, high power 192w, input voltage 100-277vac, can work well with most dimmers on the market
Mode：SMT-024-192VTHJ intput voltage：100-277VAC
Size : 278*108*46mm |
