12v 60w triac dimmable constant voltage led electronic transformer for led strip

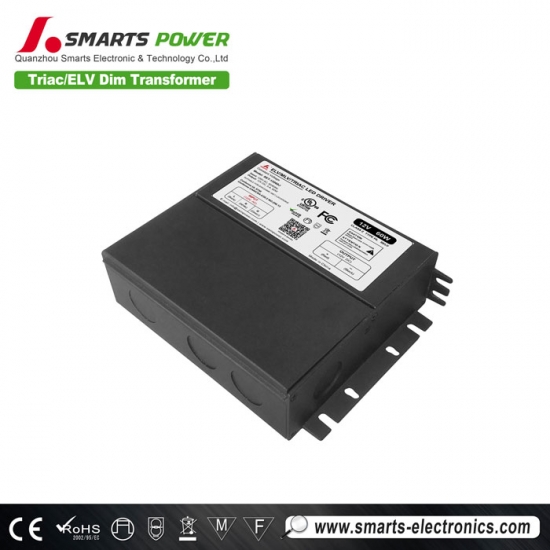

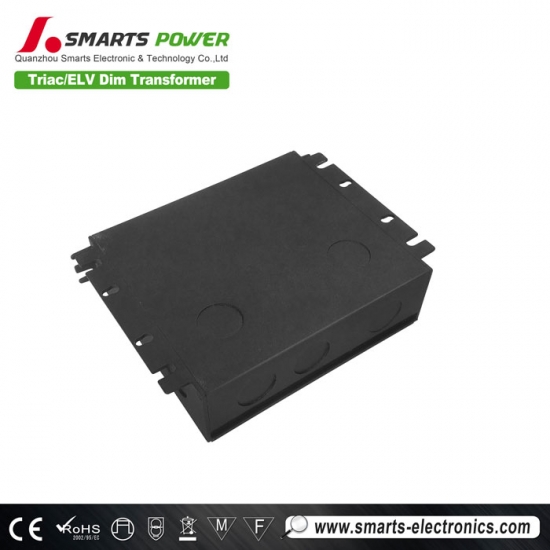

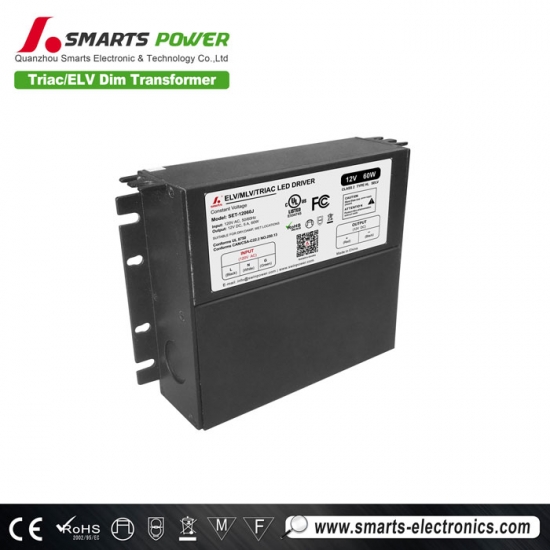

triac dimmable led electronic transformer UL certified Triac Dimmable LED Electronic Transformer with input voltage up to 120vac, size 128*120.5*42mm, iron box design, suitable for lighting in dry and humid areas
Specification
| Part Number | SET-12060J | SET-24060J |
| Output Spec.: | ||
| Reted Power | 60W | 60W |
| Reted Voltage | 12V |
24V |
| Reted Current | 5A | 2.50A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Spec.: | ||
| Voltage Range | 120V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 87%@120VAC | |
| Total Harmonic Distortion | THD< 20%(@100% load) | |
| Power Factor(typ.) | 0.98@120VAC | |
| AC Current(Typ.) | 0.58A | |
| Inrush Current(Typ.) | - | |
| Leakage Current | <0.5mA/ 120VAC | |
| PROTECTION: | ||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. | |
| ENVIRONMENT: | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC: | ||
| Safety standards | UL8750, Class 2 | |
| Safety standards | I/P-O/P:1.88KVAC | |
| OTHERS: | ||
| Dimension | 5.03x4.74x1.65 inch (L*W*H) | |
| Packing | - | |
 |
 |
 |
 |

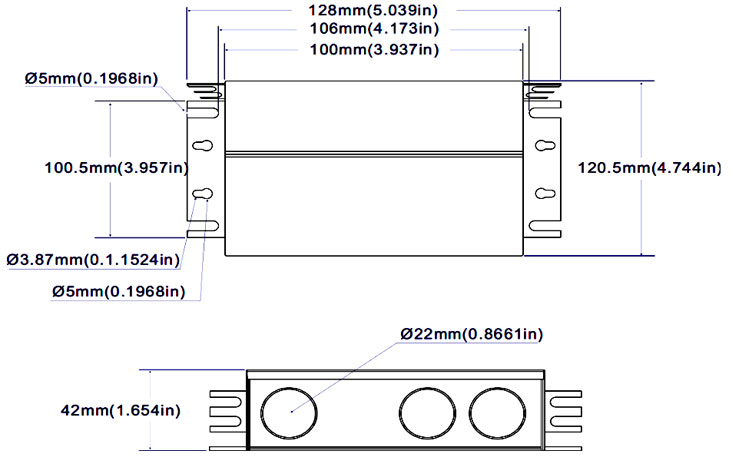

Mechanical Specification
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

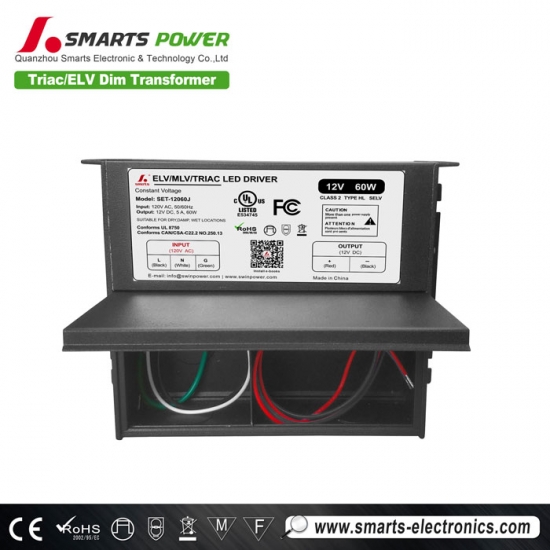

Connection Preparation
Input Connections & Grounding
Output Connections
Dimming operation
Related Products
|

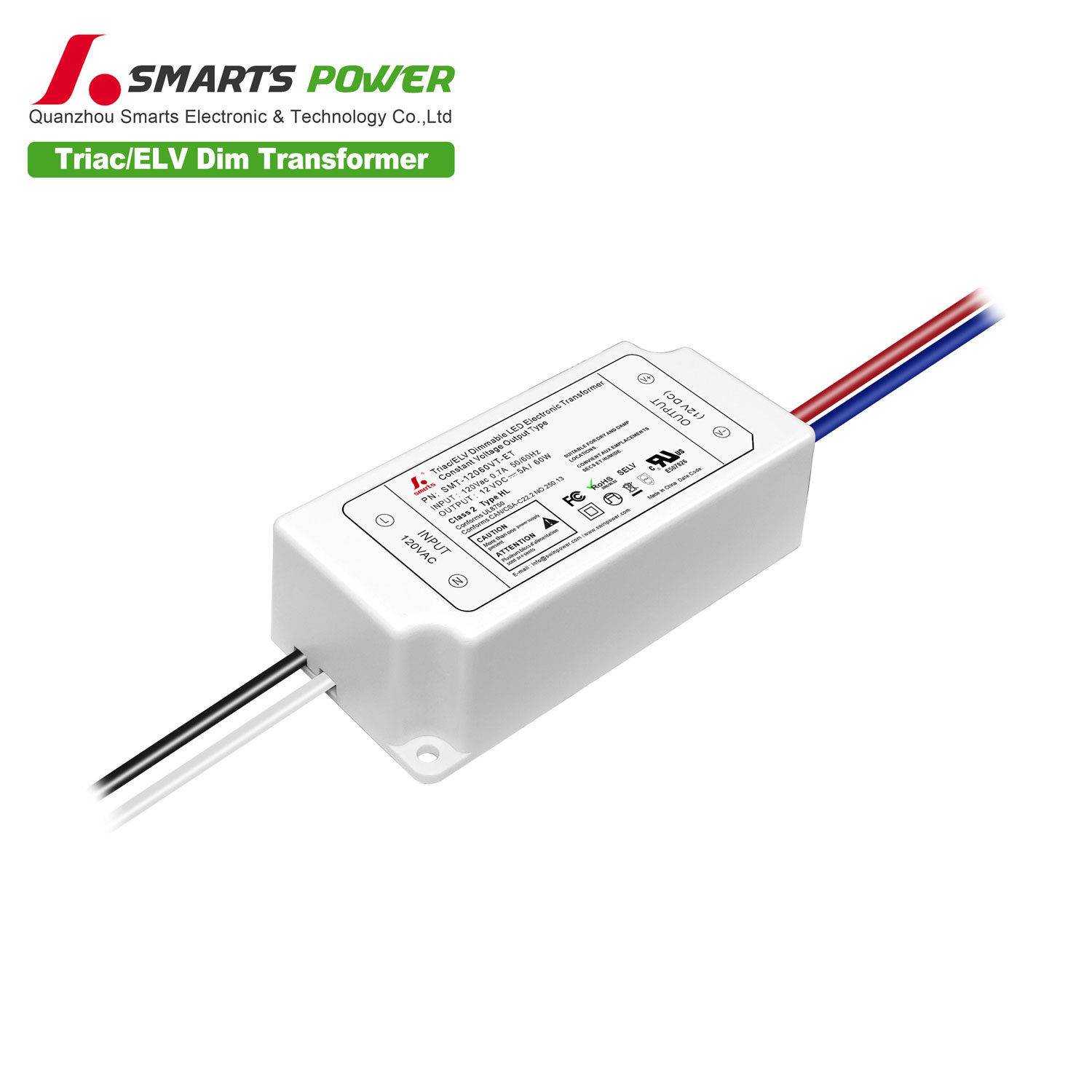

Waterproof ip67 aluminum case constant pressure triac dimmable 60W led electronic transformer, compact body easy to install
Mode：SMT-12060VT-ET intput voltage：100-130VAC
Size : 84*40*25mm |
