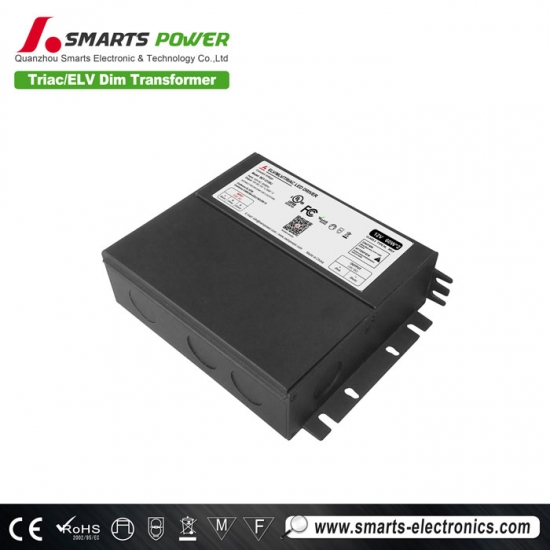

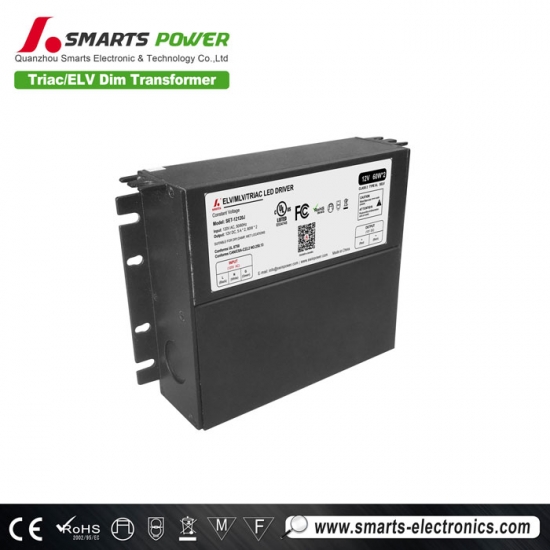

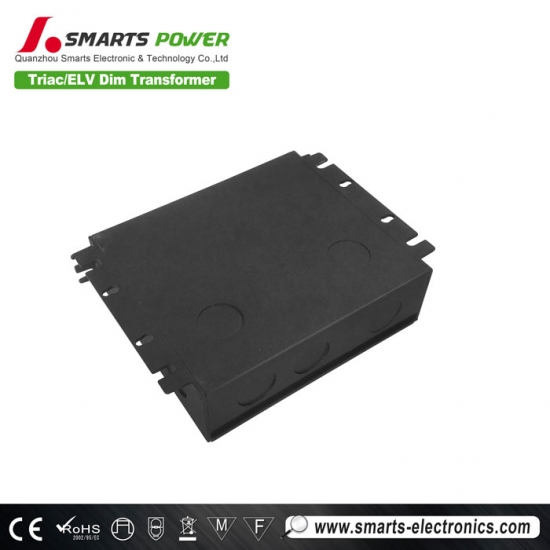

120w 12 volt constant voltage dimmable led driver LED strip transformer for led lights
TRIAC dimmable electronic transformers operate in constant voltage mode with overload and short circuit protection and ultra-low load requirements, capable of working perfectly at 20-100% load
Specification
| Model Number | SET-12120J |
| Output Type | |
| Reted Power | 60W * 2 |
| Reted Voltage | 12V |
| Reted Current | 5A * 2 |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 120V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 87%@120VAC |
| Total Harmonic Distortion | THD< 20%(@100% load) |
| Power Factor(typ.) | 0.98@120VAC |
| AC Current(Typ.) | 1.16A |
| Inrush Current(Typ.) | - |
| Leakage Current | <0.5mA/ 120VAC |
| PROTECTION | |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, Class 2 |
| Safety standards | I/P-O/P:1.88KVAC |
| OTHERS | |
| Dimension | 6.22x4.74x1.65 inch (L*W*H) |
| Packing | - |
 |
 |
 |
 |

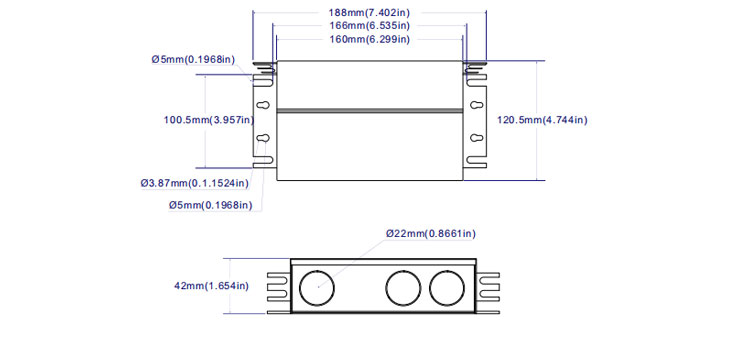

Mechanical Specification
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

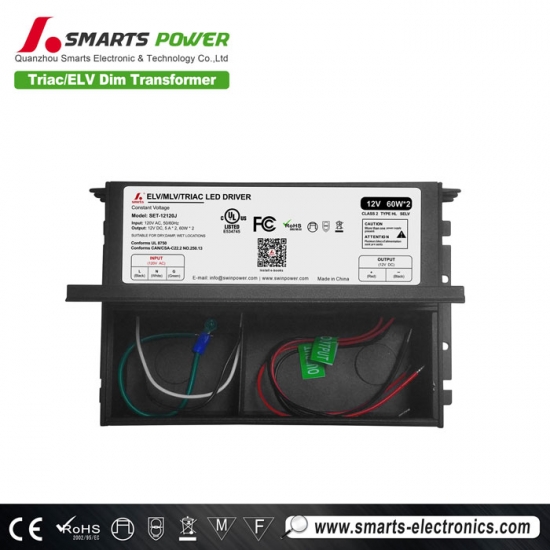

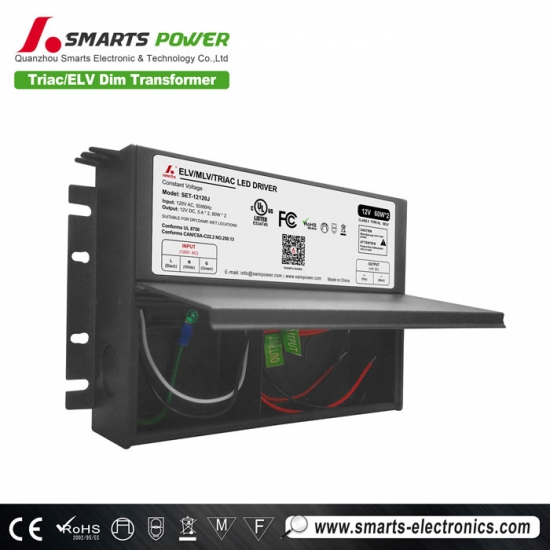

Connection Preparation
Input Connections & Grounding
Output Connections
Dimming operation
Related Products
|
UL Certified triac dimmable led driver Aluminum case, effective waterproof and dust, constant voltage mode, to provide a stable and safe working environment for the lamp, 3 year warranty
Mode：SMT-012-120VT intput voltage：100-130VAC/170-265vac
Size : 230*70*46mm |
