Smarts Electronics 150 watt led power supply is an AC to DC power converter for LED lighting systems. The 150-watt unit accepts 90V AC to 277V AC input voltages and provides 24V DC output Constructed of metal, the IP20-rated device supports an estimated lifespan of 7 years warranty.
Specifications
Model |
SMT-012-150VWJ |
SMT-024-150VWJ |
|
Output |
DC Voltage |
12V |
24V |
Voltage Tolerance |
±0.5V |
||
Voltage Tolerance |
±0.5V |
||
Voltage Regulation |
±0.5% |
||
Rated current |
12.5A |
6.25A |
|
Rated power |
150W |
||
Input |
Voltage Range |
100-277VAC |
|
Frequency Range |
47~63HZ |
||
Power Factor ( Typ.) |
0.99@120V ;0.97@230V ;0.95@277V |
0.99@120V ; 0.97@230V ;0.95@277V |
|
Full Load Efficiency(Typ.) |
>88% |
>88% |
|
AC Current(Typ.) |
1.82A@110VAC1.32A |
||
Inrush Current (Typ.) |
15A,50% ,1.4ms@120V;55A,50% 220us@230V;30A,50% 1.4ms@277V |
||
Leakage current |
<0.50mA |
||
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
Over load |
≤120% constant current limiting, auto-recovery |
||
TEMP .coefficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
Over Current |
≤1.4*I out |
||
Environment |
Working TEMP. |
-40~+60℃ |
|
Working Humidity |
20~90%RH,non-condensing |
||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Zaxes |
||
Safety&EMC |
Safety standards |
UL8750 |
|
Withstand voltage |
I/P-O/P:2.5KVAC |
||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
EMC EMISSION |
FCC Part 15 B |
||
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11(Surge about 4KV) |
||
Others |
N.W. |
1.8Kg/pcs |
|
Size |
260*103*46mm (L*W*H) |
||
packaging |
440*295*145mm ,10PCS/CTN |
||
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation . |
||

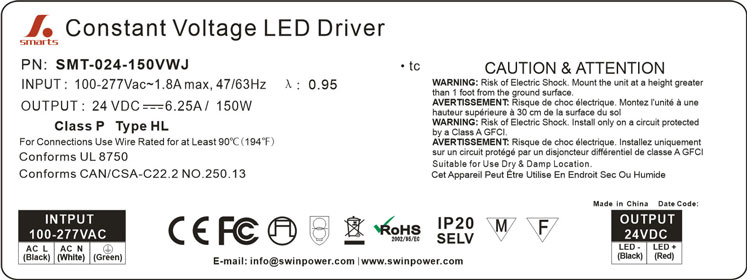

Label |
|
Features
Output constant voltage type
Input voltage range 100-277VAC
Built-in PFC function / PF>0.97 / E fficiency > 87%
Protections:short circuit/over voltage/over heat
IP20 design for indoor or outdoor installations
Cooling by free air convection
UL, cUL listed, Class P, Type HL
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting.
Mechanical Specification
Connecting Diagram
