277VAC 12V 200W Electronics LED Power Supply for LED with UL Listed
Our SMT-012-200VWJ is suitable for DC 12V Electronics Power Supply for LED. Compatible with LED light (3528, 5050, 5630 and so on) which need DC 12V.
Compliant with worldwide safety regulations for lighting, it is certified to Canadian/USA/Europe Standards and is compliant to the strictest Electrical Safety Codes.
Hardwired 100-277VAC connections being required for this led power supply 200w, installation should be made by a qualified professional and in accordance with your local building code.
This 12v 200w led power supply is designed with a High-quality metal case to withstand the toughest environments, including humid conditions.
Specifications
Model |
SMT-012-200VWJ |
SMT-024-200VWJ |
||
Output |
DC Voltage |
12V |
24V |
|
Voltage Tolerance |
±0.5V |
|||
Voltage Regulation |
±0.5% |
|||
Voltage Tolerance |
±0.5V |
|||
Load Regulation |
±2% |
±1% |
||
Rated current |
16.67A |
8.33A |
||
Rated power |
200W |
|||
Input |
Voltage Range |
100-277VAC |
||
Frequency Range |
47~63HZ |
|||
Power Factor(Typ.)@ full load |
0.99@120V ;0.98@230V ;0.97@277V |
0.99@120V ; 0.97@230V ;0.96@277V |
||
THD(Typ.)@ full load |
<10% @120V <20%@230V <20% @277V |
|||
Inrush Current (Typ.) |
15A,50% ,1.4ms@120V ;55A,50% 220us@230V ; 30A,50% 1.4ms@277V |
|||
Full Load Efficiency(Typ.) |
>88% |
>88% |
||
AC Current(Typ.) |
2.31A@110VAC |
|||
Leakage current |
<0.50mA |
|||
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
||
Over load |
≤120% constant current limiting, auto-recovery |
|||
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|||
Over Current |
≤1.4*I out |
|||
Environment |
Working TEMP. |
-40~+60℃ |
||
Working Humidity |
20~90%RH,non-condensing |
|||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|||
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|||
Vibration |
10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
|||
Safety&EMC |
Safety standards |
UL8750 |
||
Withstand voltage |
I/P-O/P:3.75KVAC |
|||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≥50%load) |
|||
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11(Surge 4KV) |
|||
Others |
Weight |
1.8Kg |
||
Size |
260*103*46mm (L*W*H) |
|||
packaging |
10PCS/CTN385*335*200mm 20PCS/CTN |
|||
Notes |
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation. |
|||
Label |
|
Features
Output constant voltage type
UL, cUL listed, Class P, Type HL
Input voltage range 100-277VAC
Built-in PFC function / PF>0.97 / ·E fficiency > 88%
Protections:short circuit/over voltage/over heat
IP20 design for indoor or outdoor installations
Cooling by free air convection
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting.
7 years warranty

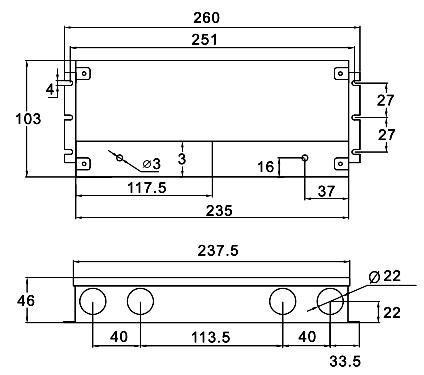

Mechanical Specification
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output:14AWG Red to LED Positive side (+) , Black to LED Negative side (-).
