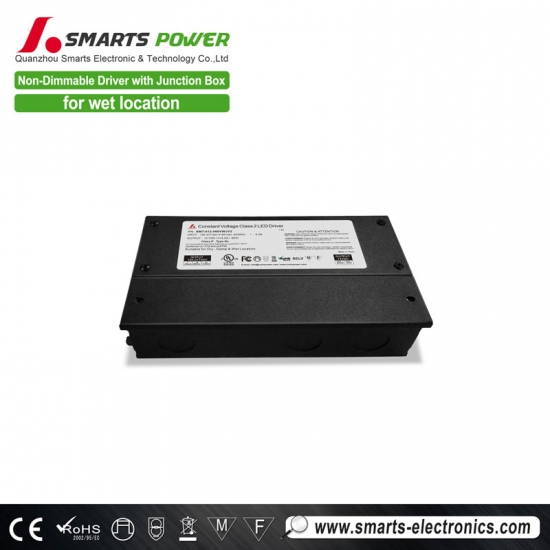

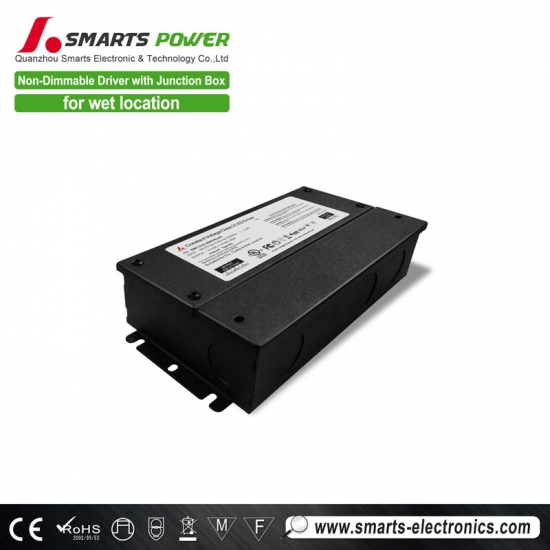

UL 277v 12v 60w power supply ip67 waterproof constant voltage
Pared with junction box, this outdoor led power supply meets the UL safe standard and owns water-resistant functions. it belongs to Class 2, Class p, type HL. Ledels 12v led modules are suggested.
Specification
|
model |
SMT-012-060VWJ (1.0 version) SMT-012-060VWJV2 (2.0 version) |
SMT-024-060VWJ (1.0 version) SMT-024-060VWJV2 (2.0 version) |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
±0.5V |
||
|
Voltage Regulation |
±0.5% |
|||
|
Rated current |
5.00A |
2.50A |
||
|
Load Regulation |
±1%
|
|||
|
Rated power |
60W |
60W |
||
|
Input |
Voltage Range |
100-277VAC |
||
|
Frequency Range |
47-63Hz |
|||
|
Power Factor(Typ.)@ full load |
0.99@120V ;0.94@230V ;0.94@277V |
0.99@120V ; 0.95@230V ;0.94@277V |
||
|
THD(Typ.)@ full load |
<15% @120V <20%@230V <20% @277V |
|||
|
Efficiency(Typ.)@ full load |
83%@120V 87%@230V 85%@277V |
85%@120V 88%@230V 86%@277V |
||
|
AC Current(Max.) |
0.9A (100VAC) |
|||
|
Inrush Current (Typ.) |
14A,50% ,780us @120v ;50A,50% 176us@230V ;15A 50% 660us@277V |
|||
|
Protection |
Leakage current |
<0.50mA |
||
|
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault condition removed |
|||
|
Over Loading |
≤120% Hiccup mode, recovers automatically after fault condition is removed |
|||
|
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
||
|
Working Humidity |
20~90%RH, non-condensing |
|||
|
Storage TEMP. Humidity |
-40~+80℃,10~95%RH |
|||
|
TEMP .coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10~500Hz,5G 10min./1 cycle, period for 60min. each along X,Y,Z axes
|
|||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
||
|
Withstand voltage |
I/P-O/P:1.88KVAC |
|||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
FCC Part 15 B |
|||
|
Others |
Weight |
About 1.1Kg |
||
|
Size |
1.0 version: 188*92*40mm /2.0 version: 188*94.5*40mm（L*W*H） |
|||
|
packing |
10PCS/CTN （L*W*H） |
|||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
|||
 |
 |
 |
 |

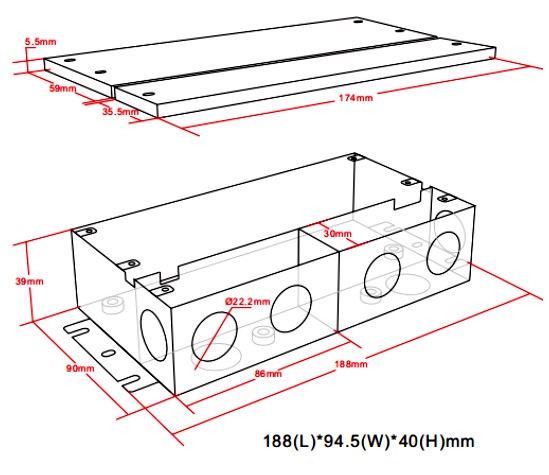

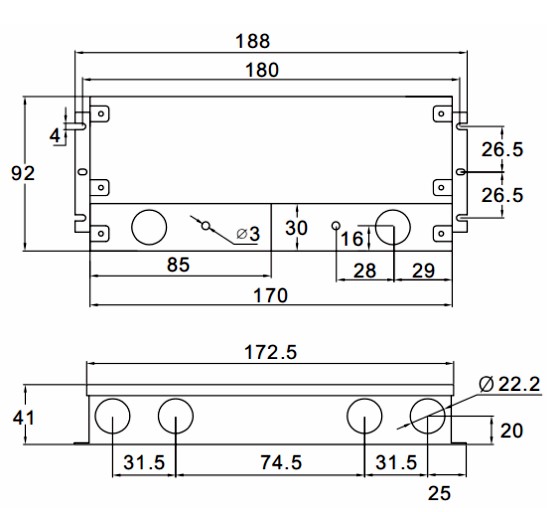

■Mechanical Specification
Unite: mm
Tolerance:P 0.5-2mm
1.0 version: SMT-012-060VWJ / SMT-024-060VWJ
2.0 version: SMT-012-060VWJV2 /SMT-024-060VWJV2

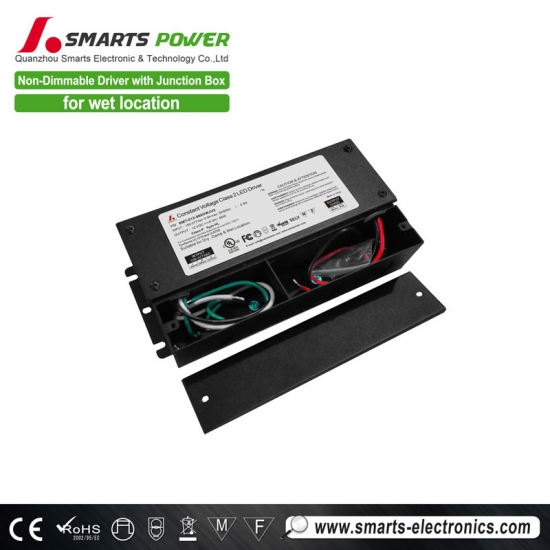

※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Outputpower cord: 16AWG, Red to LED Positive side (+) , Black to LED Negative side (-).

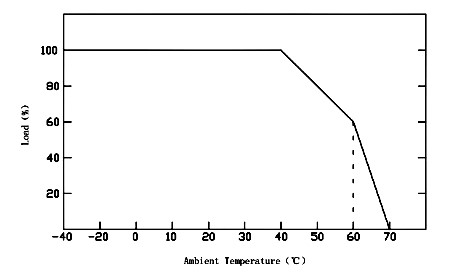

■Derating Curve
※Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the running life.

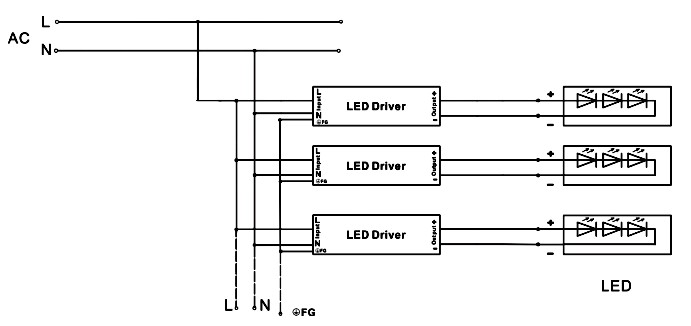

■Connecting Diagram

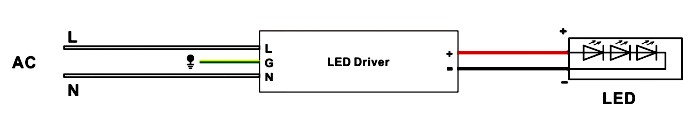

■ Simple Connection Diagram
■ Instruction:
※This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage;
※If the LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 0086-18016688251 to get technical support .
Welcome to visit our Official Website: www.smarts-electronics.com & www.swinpower.com
Compatible Dimmer Type
Smarrts 277v power supply ip67 waterproof performs well within a wide range of lighting applications up to 60W. Both 12vdc and 24vdc are available. 30w-300w is accessible. environmental lights LED NEON can help you in compatibility.
Related Products
This 277v led driver constant voltage is triac diimming mode with high output power up to 300w. It is 2 in one type with high safe standard.
Mode：SMT-012-300VWH warranty: 7 years |
