The compact SMARTS 277VAC dimmable led power supply with built-in junction box is class-2 rated and has a maximum load of 96 watts. The 24-volt driver is encased in a low-profile aluminum enclosure to enable easy installation for under-cabinet lighting, cabinet lighting, cove lighting, showcase lighting, bookshelf lighting, cupboard lighting, or for other applications where the space is limited. Over-current and short-circuit protection. PWM output & High PF>0.98 & High efficiency>87%. Compatible with FORWARD PHASE, Magnetic low voltage TRIAC dimmers.
Special Specifications
|
model |
SMT-012-100VTH |
SMT-024-096VTH |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
8.3A |
4.0A (class 2 type) |
|
|
Rated power |
100W |
96W |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.98/110V , PF≧0.95/277V |
||
|
Full Load Efficiency(Typ.) |
>84% |
>85% |
|
|
AC Current（Typ.） |
1.3A @110VAC |
||
|
Leakage current |
﹤0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
≦140VAC(90~135V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
1.3Kg |
|
|

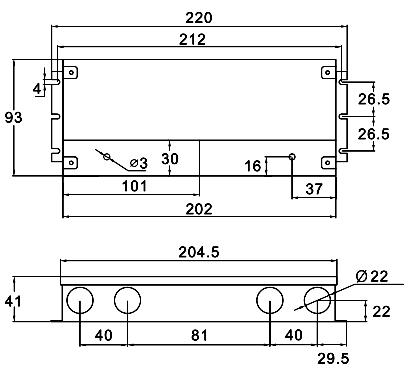

Size |
220*93*41mm (L*W*H) |
||
|
packing |
10PCS/CTN 385*335*200mm 20PCS/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 120VAC & 277vac input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
|
Label |
 |
||
 |
 |
 |
 |
※Input power cord: AC (L), (N), and earth wire (G)
※Output Red is（DIM+）,Black is（DIM-）

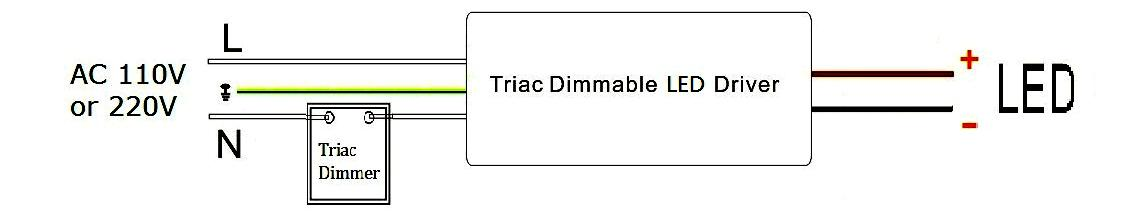

Dimming Operation
1) The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L)
by connection a phase/triac dimmer.
2) Usually matching with Forward phase , leading edge , Magnetic low voltage, triac dimmers, or Reverse phase,
trailing edge ,Electric low voltage Dimmers.
3) lease try to use dimmers with power at least 1.5 times as the output power of the driver
