ul listed outdoor lighting 277v to 12v transformer

model

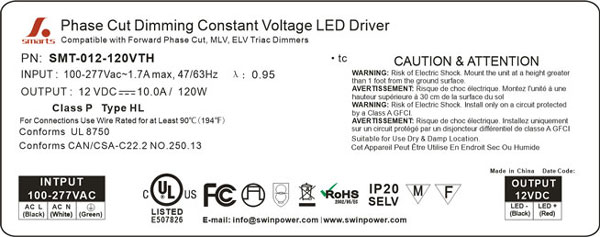

SMT-012-120VTH

SMT-024-120VTH

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±2%

Rated current

10.00A

5.00A

Rated power

120W

Input

Voltage Range

100~277V AC

Frequency Range

47～63HZ

Power Factor ( Typ.）

0.99@120VAC  0.96@277VAC

0.98@120VAC  0.96@277VAC

Full Load Efficiency（Typ.）

>82%

>83%

AC Current（Typ.）

1.7A@100VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over voltage

≦140VAC(100~130V) , ≦270VAC(170~277V)

Environment

Working TEMP.

-40～+60℃

Working Humidity

20～90%RH,non-condensing

Storage TEM.,Humidity

-40～+80℃，10～95%RH

TEMP.coefficient

±0.03%/℃（0～50℃）

Vibration

10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750, UL1012

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P：100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547Alight industry level （surge4KV）

Others

Weight

1.3Kg

Size

220*93*41mm (L*W*H)

packing

329*279*176mm , 10PCS/ctn

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .
