Product Overview for dimmable led power supply
|

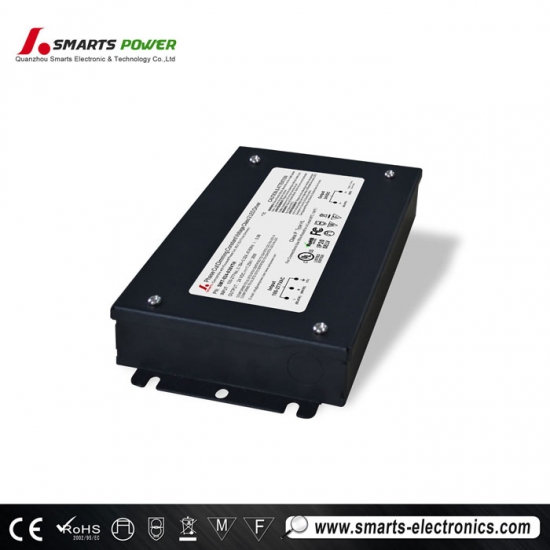

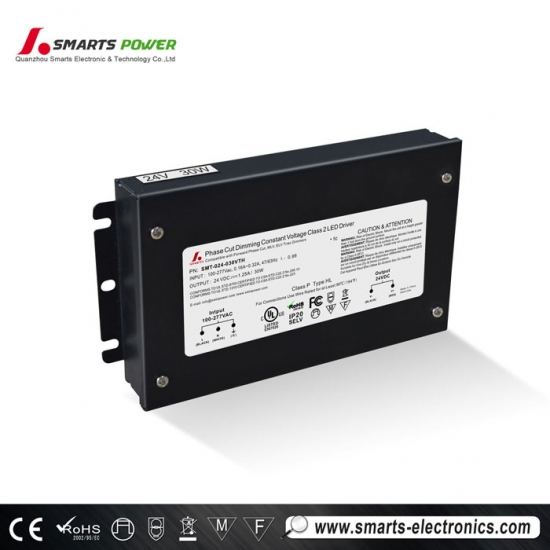

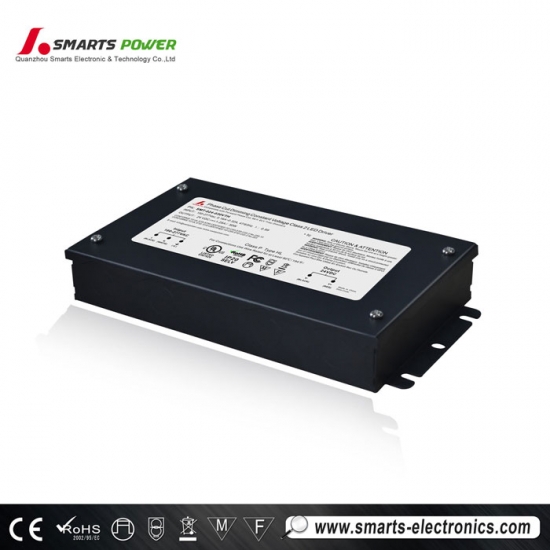

Smarts’ VTH series is the most compact LED driver on the market with PWM digital dimming. A metal box is attached with this dimmable led power supply. |
Specifications for led strip power supply 12v
| Max Load | 30W | Label |
| Input Voltage | 100-277VAC |
 |
| Power Factor | 0.99 | |
| Avg. Efficiency | 87% | |
| Maximum Ambient Temperature | -30°C to 45°C | |
| Dimensions | 165*92*26mm | |
| Weight | 0.95kg |
 |
 |
 |
 |
Features for dimmable 12v led power supply
- Dimmable with 277VAC Forward Phase and Reverse Phase dimmer
- UL/cUL listed
- Class 2
- Commercial Use
- flicker-free dimming
- Maintain color rendering index
- High efficiency
- Strong compatibility
- Constant voltage dimmable LED driver
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Built-in active PFC function
- Cooling by free air convection
- Compliance to worldwide safety regulations for lighting
- IP67 design for indoor or outdoor installations
- Suitable for LED lighting and moving sign applications
- Suitable for dry / damp / wet locations
- 7 years warranty Triac power supply

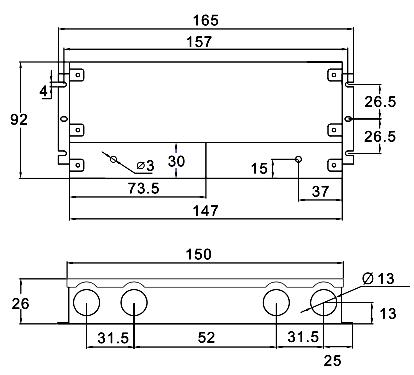

Mechanical Specification for 277VAC Dimmable LED POWER SUPPLY

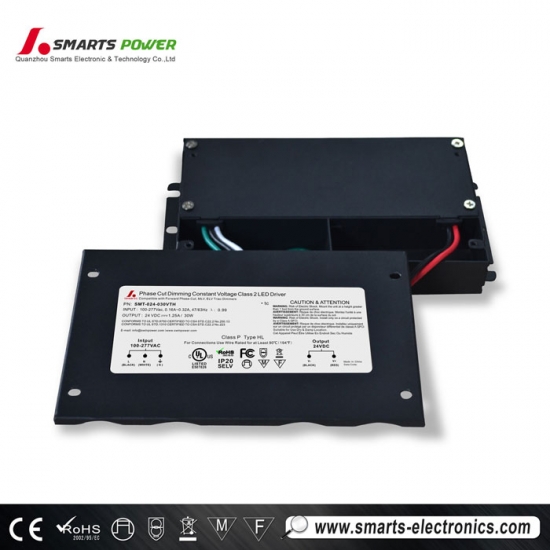

--Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
--Output: Red is(DIM+),Black is(DIM-)
--Note: Any other requests we can customized.
Dimming Operation
--Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
--Please try to use dimmers with power at least 1.5 times as the output power of the driver.
All models for Smarts Electronicshigh PFC> 0.98 , high efficiency> 97% Triac / 0-10V / DALI 305vac transformer. They are:
---- triac dimmable LED drivers: 12VDC & 24VDC 30W, 60W 100W, 150W, 200W, 250W, 300W with junction boxes attached .. 5 years warranty
---- DALI dimmable LED drivers: 12V & 24V 100W , 24V 120W , 12V & 24V 150W, 12V & 24V 180W , 24V 200W 3 years warranty
---- 0-10V dimmable LED drivers: 12V & 24V 100W , 24V 120W , 12V & 24V 150W, 12V & 24V 180W , 24V 200W 3 years warranty
