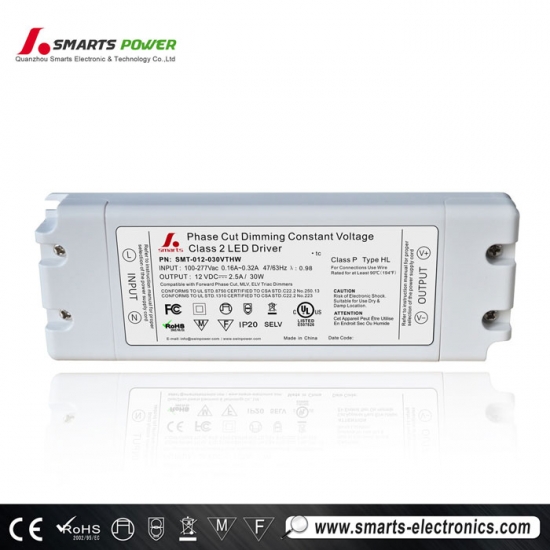

UL/cUL Listed 30W 12volt dc LED Strip Power Supply
The Slim Line series LED Strip Power Supply are UL/cUL listed for use in Canada and USA and covered by 5-year manufacturer limited warranty.
New Multi-Dim Regulated Dimmable 30 Watt (2.5A) Class 2 constant voltage 12VDC DC Power Supply features outstanding LED dimming performance that use Pulse-Width Modulation (PWM) dimming for smooth dimming.Ccompatible with wide range of dimmers.
Specifications for dc power supply
|
model |
SMT-012-030VTHW |
SMT-024-030VTHW |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
2.50A |
1.250A |
|
|
Load Regulation |
±1% |
||
|
Rated power |
30W |
30W |
|
|
Input |
Voltage Range |
100-277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.98@277VAC |
0.98@120VAC 0.98@277VAC |
|
|
|
Full Load Efficiency（Typ.） |
>82% |
>81% |
|
AC Current（Typ.） |
0.53A/110VAC |
||
|
Inrush Current （Typ.） |
7.1A, 50%, 425us |
||
|
Leakage current |
<0.50mA |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1.95KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level （surge4KV） |
||
|
Others |
Weight |
About 0.25Kg |
|
|
Size |
155*54*20mm (L*W*H) |
||
|
packing |
40PCS/CTN（L*W*H） |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||

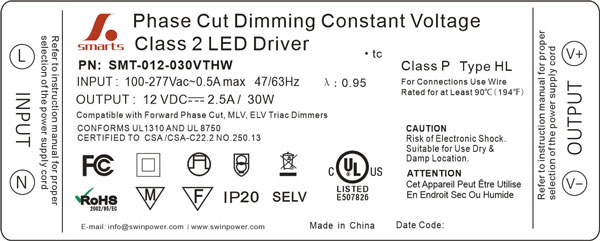

| Label |
 |
||
 |
 |
 |
 |

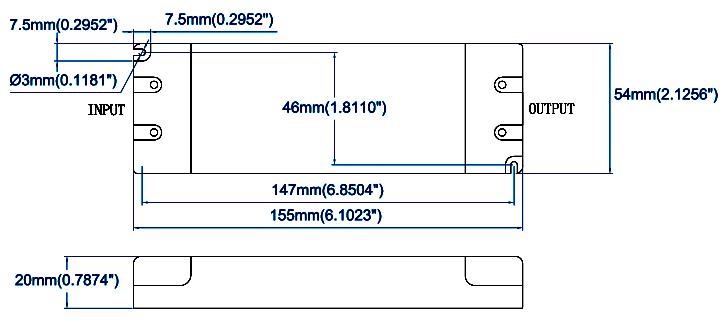

Mechanical Specification for led strip power supply
※ Input (L) and (N) with wires to be connected AC.
※ Output LED SEC : Red wire to LED+, Black wire to LED-
※Note: Any other requests we can customized.
