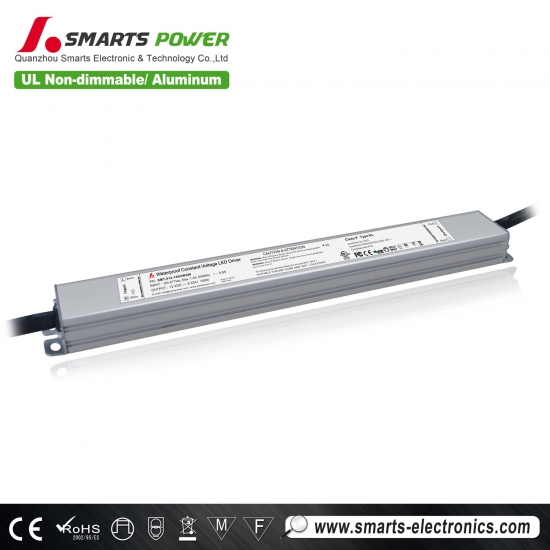

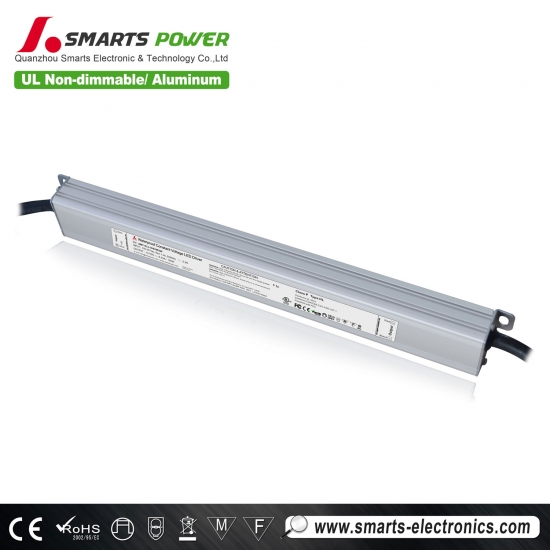

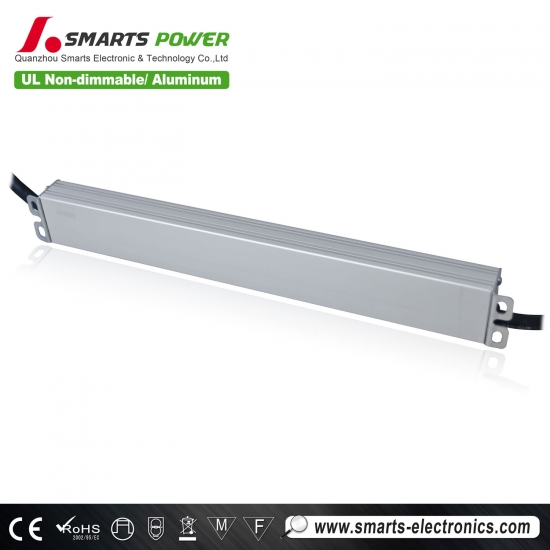

UL 12v 100w slim constant voltage ip67 led driver
This 100w constant voltage led driver has 12v 24v 36v 48v output voltage for selection, there is 100-277vac wide range input volage which is for LED lighting applications.
Specification
model
SMT-012-100VWSW
SMT-024-096VWSW
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
8.33Amp
4Amp
Rated power
100W
96W (class 2)
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
THD(Typ.)@ full load
<15%@120VAC <20%@230VAC <20%@277VAC
Full Load Efficiency（Typ.）
83%@120VAC; 85%@230VAC; 85%@ 277VAC
AC Current（Typ.）
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
Inrush Current（Typ.）
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
Leakage current
<0.50mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.

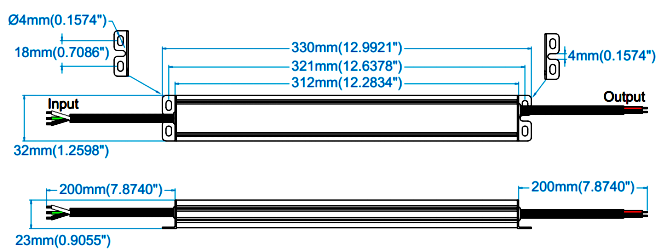

Mechanical Specification
note:
- Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground
-
Output: Red is（Possitive +）,Black is（Negative -）
