ul 60 watt dimmable drivers for led lights
|

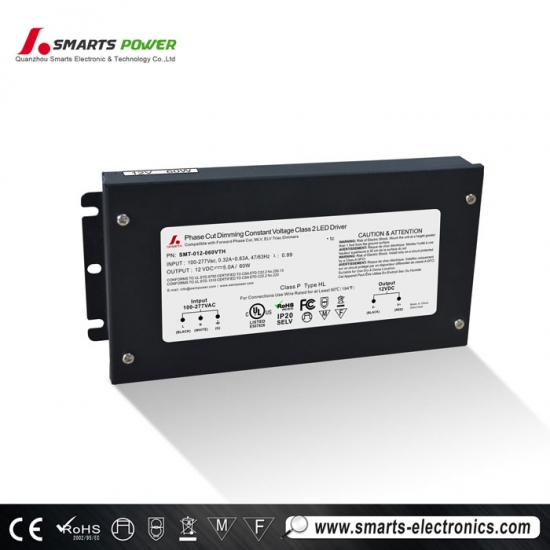

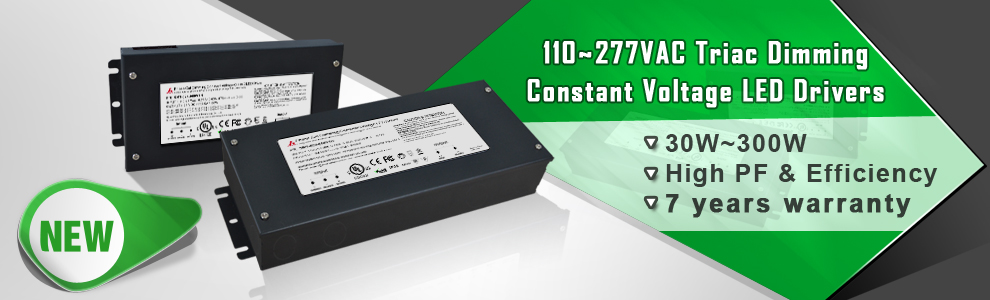

VTH series is the PWM output & High PF>0.99 & High efficiency>87% 7 years warranty Triac dimmable led driver with UL CE Rohs listed and paired with relative junction box. |
Specification
|
model |
SMT-012-060VTH (1.0 version) SMT-012-060VTHV2 (2.0 version) |
SMT-024-060VTH (1.0 version) SMT-024-060VTHV2 (2.0 version) |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
5.00A |
2.50A |
|
|
Load Regulation |
±1% |
||
|
Rated power |
60W |
60W |
|
|
Input |
Voltage Range |
100-277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
|
Full Load Efficiency（Typ.） |
>83% |
>83% |
|
AC Current（Typ.） |
0.9A/110VAC |
||
|
Inrush Current （Typ.） |
14A, 50%, 780us |
||
|
Leakage current |
<0.50mA |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Over voltage |
≦140VAC(90~135V) , ≦285VAC(170~277V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level （surge4KV） |
||
|
Others |
Weight |
About 1.1Kg |
|
|
Size |
1.0 version: 188*92*26mm(L*W*H); 2.0 version: 188*94.5*40mm(L*W*H) |
||
|
packing |
10PCS/CTN（L*W*H） |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |
|
Features
|

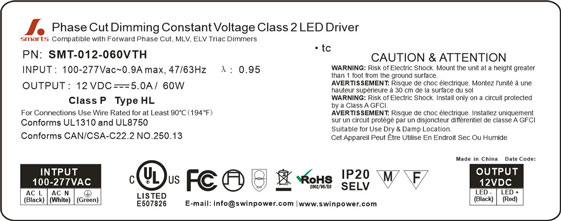

Label
|
|
|

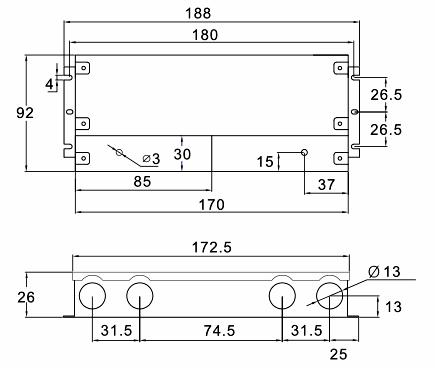

Mechanical Specification for dimmable drivers for led lights
Dimming Operation for 60 watt led driver:
Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
