These Rainproof LED Power Supply are the perfect choice for LED panels, LED Strips, LED Cove Lighting and various commercial and residential LED applications. The VTH version includes a wiring compartment to enable easy-installation and eliminates the need of a J-Box.
Aluminum metal housing, easy for heat dissipation and ensure stability. 100% Waterproof IP67 protect for outdoor use
Automatic protection for: short circuit, overload, over voltage, over current, high temperature. Protection type: Hiccup mode, auto-recovery after fault condition is removed
High quality with 7 year warranty, and our seller support team always stand behind our products in any way.
Specifications for rainproof led power supply
|
model |
SMT-012-120VTHW |
SMT-024-120VTHW |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
10.00A |
5.0A |
|
|
Rated power |
120W |
120W |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
THD(Typ.) @full load |
<20% |
||
|
Power Factor ( Typ.） |
0.99@120VAC 0.96@277VAC |
0.98@120VAC 0.96@277VAC |
|
|
Full Load Efficiency(Typ.) |
>82% |
>82% |
|
|
AC Current（Typ.） |
1.71A/110VAC |
||
|
Inrush Current （Typ.） |
20A, 50%, 1.6ms |
||
|
Leakage current |
﹤0.5mA/110V |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Over voltage |
≦140VAC(90~135V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 |
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547Alight industry level （surge4KV） |
||
|
Others |
Net Weight |
1.1Kg |
|
|
Size |
230*70*43mm（L*W*H） |
||
|
packing |
329*279*176mm , 10PCS/ctn |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
 |
||
 |
 |
 |
 |

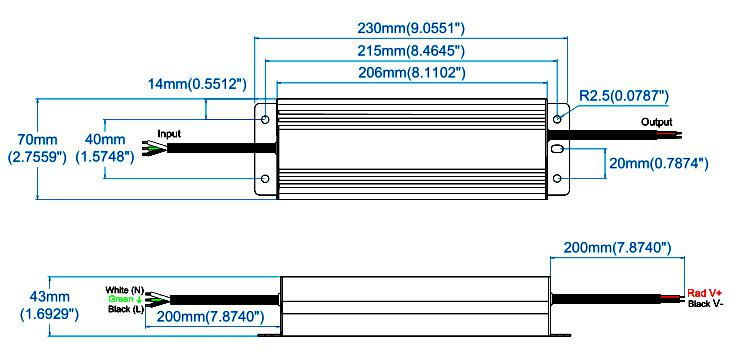

Mechanical Specification for led power supply 10a
※Input power cord: AC (L), (N), and earth wire (G)
※Output Red is（DIM+）,Black is（DIM-）

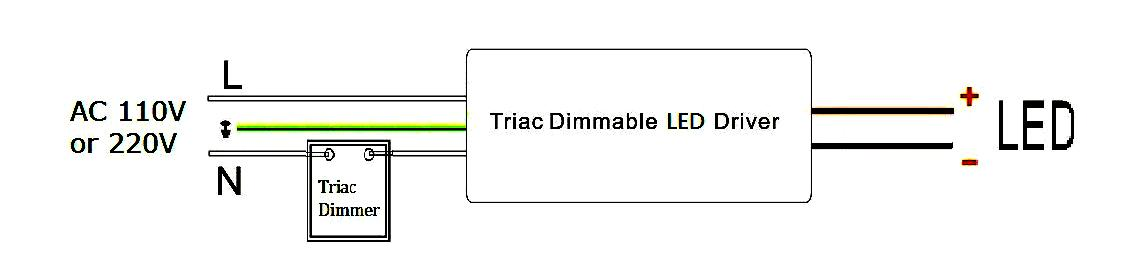

Connecting Diagram for led strip power supply 12v
