UL 12v 100w triac dimmable constant voltage LED driver Junction Box for led lights

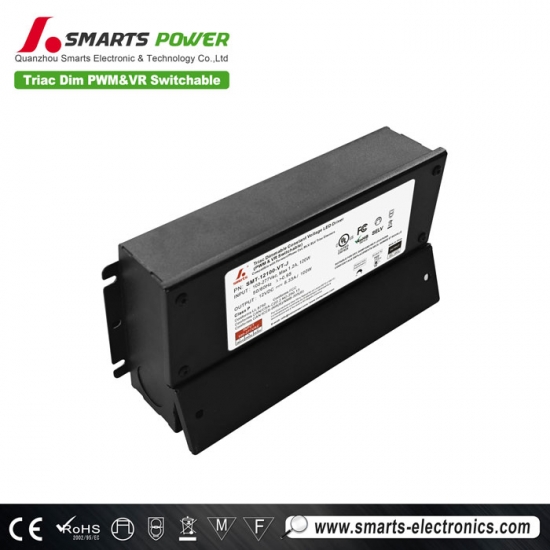

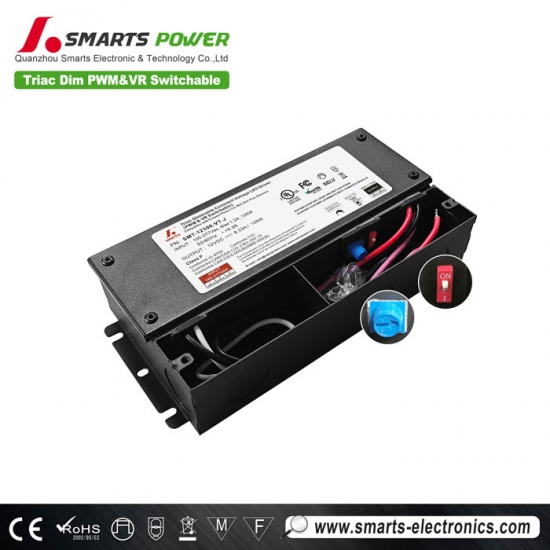

Smartspower new upgraded triac dimmable led power supply 100W 12V has built-in rocker switch to switch between voltage drop output and pwm output. Dimming range is 0~100%. Complies with global safety lighting regulations. 7-year warranty
Specification
| Model | SMT-12100-VT-J | SMT-24096-VT-J | SMT-36096-VT-J | SMT-48096-VT-J | |
| Certificate | UL/cUL / FCC(Pending) / CE / ROHS / Reach | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
|
(12-13.5V adjust by NFC) |
(24-26V adjust by NFC) | (36-38V adjust by NFC) | (48-50Vadjust by NFC) | ||
| Voltage Tolerance | ±0.5V | ||||
| Voltage Regulation | ±0.5% | ||||
| Rated current | 8.0A | 4.00A | 2.66A | 2.0A | |
| Rated power | 100W | ||||
| Load Regulation | ≤3% | ||||
| Dimming Mode | PWM & VR two modes for choice ON for PWM mode while 1 for VR mode Power off till three seconds, then power-on for mode switch | ||||
| Input | Voltage Range | 110-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor @ full load | ≥0.95 | ||||
| Efficiency @ full load |
≥89%@120VAC ≥90%@277VAC |
≥88%@120VAC ≥91.5%@277VAC |
≥86%@120VAC ≥89.5%@277VAC |
≥87%@120VAC ≥90.5%@277VAC |
|
| AC Current (Max.) | 1.1A | ||||
| THD(Typ.)@full load | ≤20%@120VAC~277VAC full load | ||||
| Standby power(max.) | ≤0.5W | ||||
| Inrush Current (Typ.) | 51A, 208us@50%Ipeak @120VAC 118A, 452us@50%Ipeak @277VAC | ||||
| Leakage current | ≤0.5mA | ||||
| Protection | Short Circuit | Hiccup mode, automatically recovers after an exception is removed | |||
| Over Load | ≤120%,hiccup mode, automatically recovers after an exception is removed | ||||
| Over Temperature | Shell surface temperature 100℃±10℃shut down o/p voltage, automatically recover after the temperature drops. | ||||
| Environment | Working TEMP | -40~+60℃ (see below derating curve) | |||
| Working Humidity | 20 -95%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | UL8750 (US) | |||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:1.88KVAC (US) | ||||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | ||||
| EMC Emission | FCC Part 15, Subpart B (US) | ||||
| lightning surge | L to L: 2KV L to G: 4KV | ||||
| Stroboscopic | Strobe test standard | IEEE 1789 | |||
| Others | Net Weight | 1.1Kg | |||
| Dimension | 188*95.4*42.7mm (L*W*H) | ||||
| Packing | |||||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | ||||
| 1. Under low input voltage, derating output is required to ensure a long life. | |||||
 |
 |
 |
 |

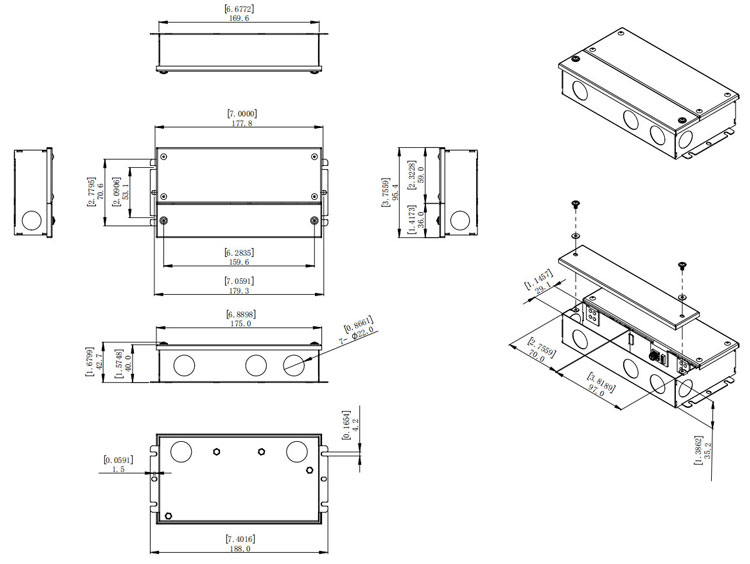

Mechanical Specification

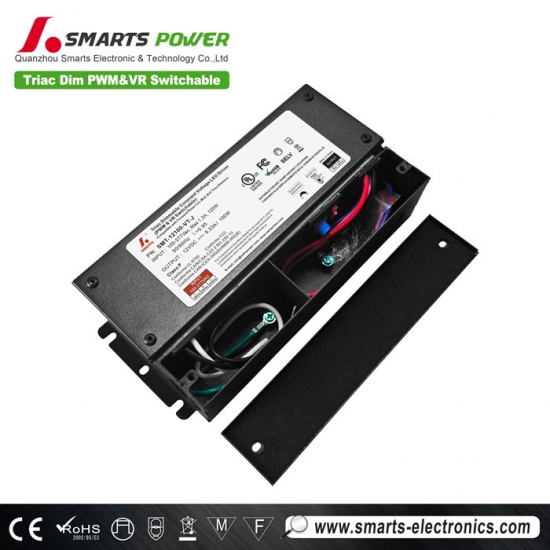

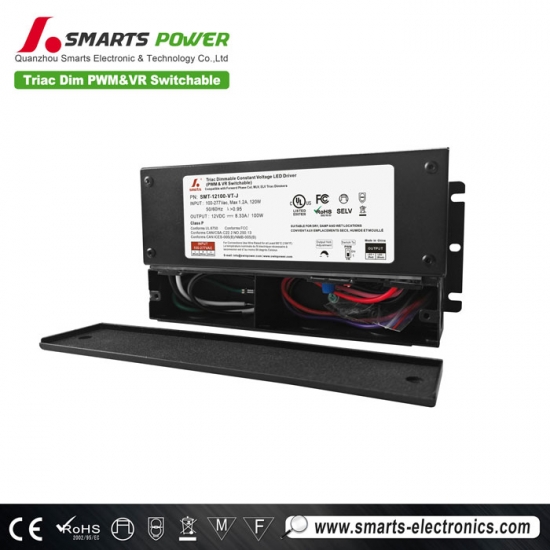

1.Input electronic wires 1015 0.824mm2*3 18AWG， Black cable to L,White cable to N，and the Green cable to G.
2.Output electronic wires1015 0.824mm2*2 18AWG， Red cable to positive side(+),Black cable to Negative side(-)
3.Dimming electronic wires 1015 0.824mm2*2 AWG， Purple cable to positive side(D+),Pink cable to Negative side(D-)
warm tips: Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
Dimming Operation
TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
2.phase /Triac dimmer or lighting system.
3.Working with forward phase, MLV and Reverse phase , ELV, TRIAC dimmers.
4.Min. loading is about 10%.
5.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise. Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
Related Products
|

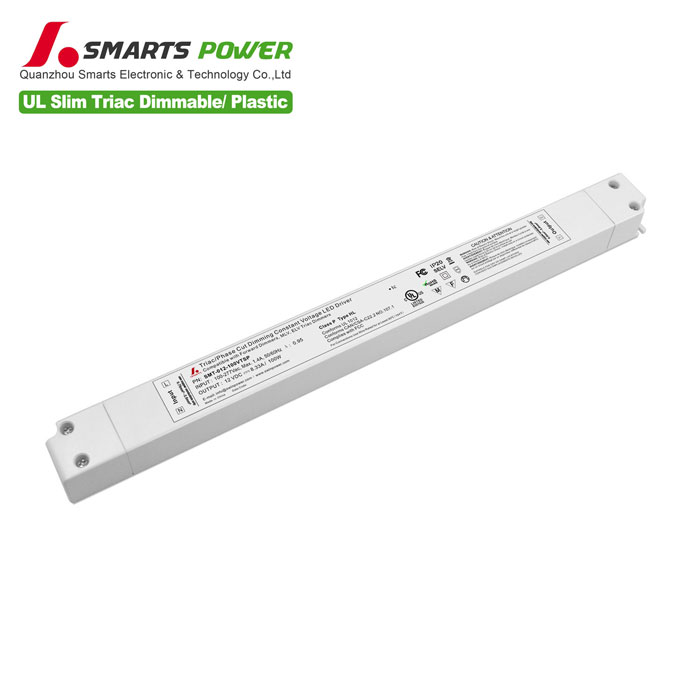

SMT-012-100VTSP is an ultra-thin size triac dimmable led driver 100W. Constant voltage working mode. Waterproof grade ip20, plastic shell design, suitable for indoor led lighting project installation. With 5 years warranty
Mode：SMT-012-100VTSP intput voltage：100-277vac
Size : 330*32*23MM |
