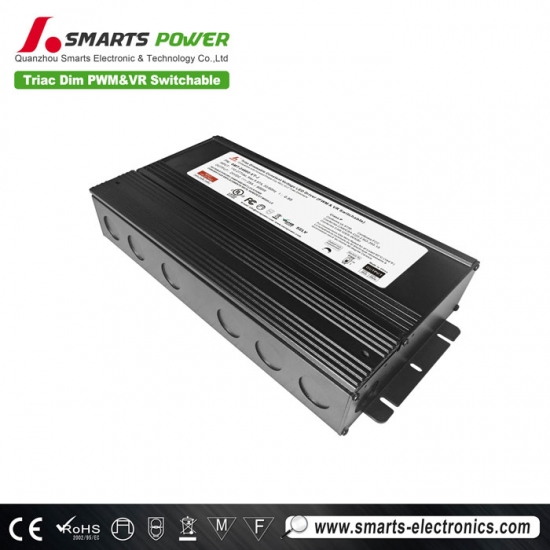

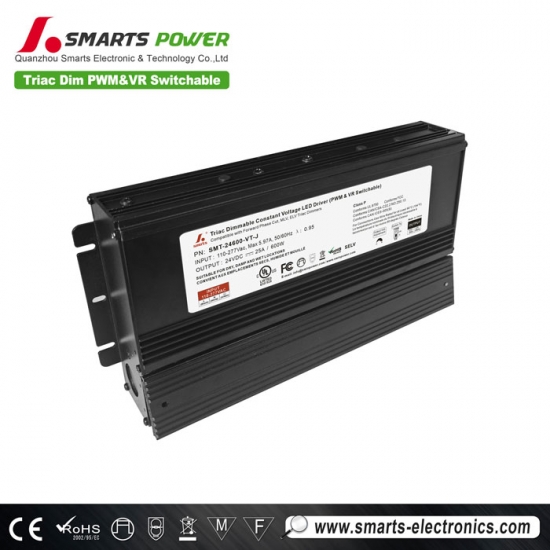

24v/36v/48v 600W constant voltage triac dimmable led driver power supply with Junction Box
600W constant voltage triac dimmable led power supply Input voltage range is 100-277vac. Built-in fine-tuning voltage function knob. Compatible with most dimmers with voltages between 110-120v and 100-277vac. Dimming range is smooth and flicker-free between 0~100%. Complies with global safe lighting regulations.
Specification
| Model | SMT-24600-VT-J | SMT-36600-VT-J | SMT-48600-VT-J | |
| Certificate | CE / ROHS / Reach | |||
| Output | DC Voltage |
24V (24V-25.5V adjust by knob) |
36V (36V-38V adjust by knob) |
48V (48V-50V adjust by knob) |
| Rated current | 25A | 16.67A | 12.5A | |
| Rated power | 600W | |||
| Voltage Tolerance | ±0.5% | |||
| Voltage Regulation | ≤0.5% | |||
| Load Regulation | ≤1% | |||
| Input | Voltage Range | 110-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor@ full load | ≥0.95 | |||
| THD(Typ.) @ full load | ≤10%@120VAC | |||
| Efficiency @ full load |
90.5%@120VAC 93.45%@277VAC |
90.5%@120VAC 93.45%@277VAC |
90.5%@120VAC 93.45%@277VAC |
|
| AC Current (Max.) | 6.0A | |||
| Inrush Current (Typ.) | 52A, 810us@50%Ipeak110VAC 76A, 148us@50%Ipeak277VAC | |||
| No-load power | <8W | |||
| Standby power | <0.5W | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | |||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13(US) | ||
| Withstand voltage | I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| EMC Emission | FCC 47 CFR Part 15, Subpart B; ANSI C63.4a-2017 (US) | |||
| Others | Net Weight | Kg | ||
| Dimension | 280*140.2*50.2mm(L*W*H) | |||
| Packing | /pcs /CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
 |
 |
 |
 |
Mechanical Specification

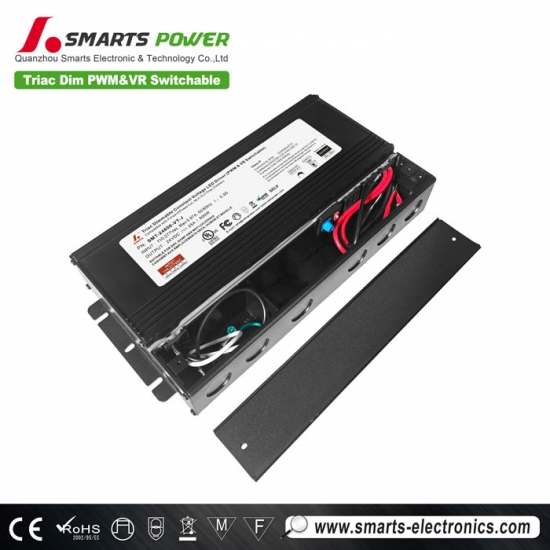

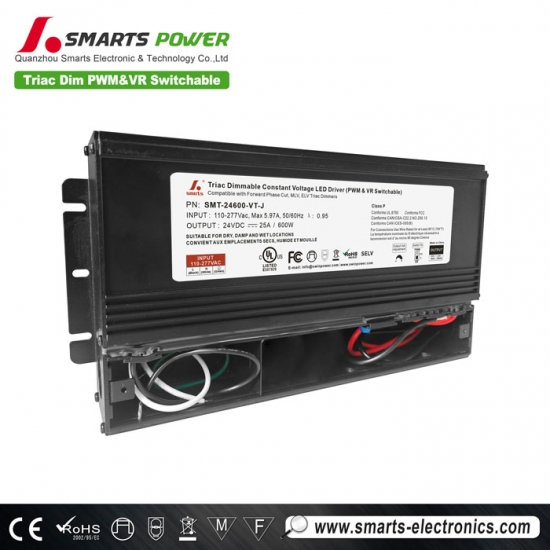

1.Input electronic wires 1015 0.824mm2*3 18AWG， Black cable to L,White cable to N，and the Green cable to G.
2.Output electronic wires1015 0.824mm2*2 18AWG， Red cable to positive side(+),Black cable to Negative side(-)
3.Dimming electronic wires 1015 0.824mm2*2 AWG， Purple cable to positive side(D+),Pink cable to Negative side(D-)
warm tips: Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
Dimming Operation
TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
2.phase /Triac dimmer or lighting system.
3.Working with forward phase, MLV and Reverse phase , ELV, TRIAC dimmers.
4.Min. loading is about 10%.
5.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise. Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
Related Products
|

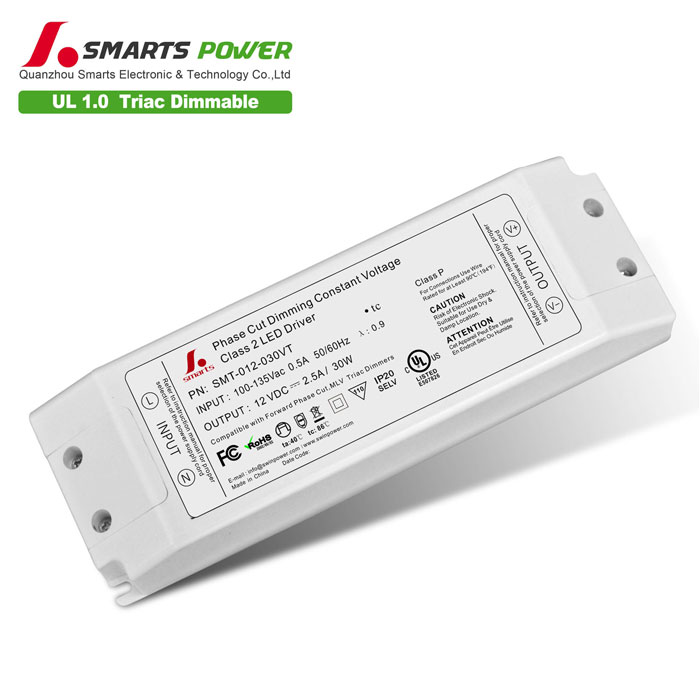

Plastic housing triac dimmable 30W 12V LED driver waterproof level ip20. Suitable for indoor LED lighting project installation. Comply with global safety lighting regulations. With 5 years warranty
