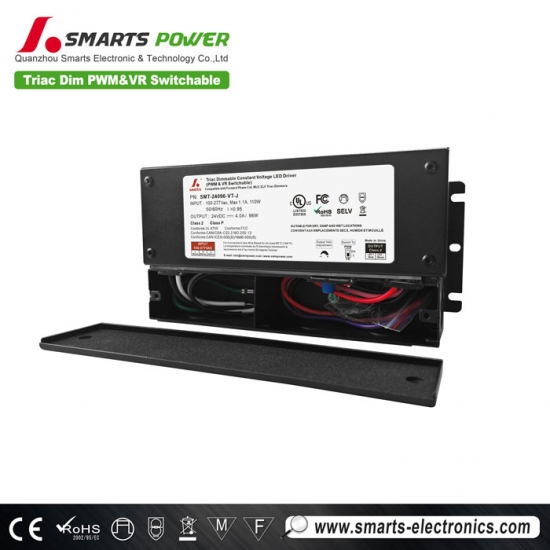

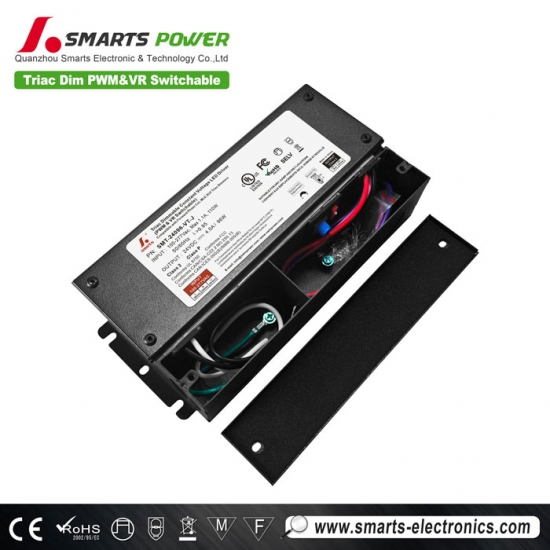

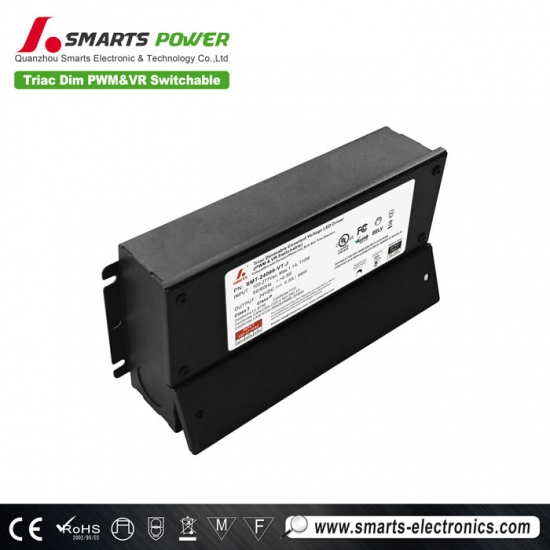

24v 96W pwm output triac dimmable led light strip driver power supply inside junction box

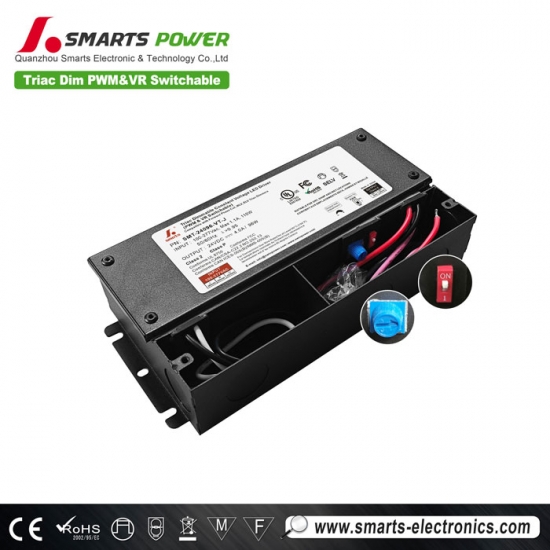

UL certified triac dimmable led driver 24v 96W Constant voltage operation mode with short circuit/overload/over temperature protection. With rocker switch to switch between PWM and buck (VR) mode. Compatible with most 100-120vac and 277vac triac dimmers on the market. Achieve smooth flicker-free dimming. 7 year warranty.
Specification
| Model | SMT-24096-VT-J | SMT-48096-VT-J | |
| Certificate | UL / FCC / Class 2 / Class P / SELV / CE / RoHs / REACH | ||
| Output | DC Voltage | 24V | 48V |
| Voltage Tolerance | ±2% | ±2% | |
| Voltage Regulation | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤2% | ≤2% | |
| Rated current | 4A | 2A | |
| Rated power | 96W | ||
| Voltage Ripple | 296mv | 176mv | |
| Overshoot voltage | <3%(full load) | <3%(full load) | |
| Fine-tune Voltage | 24-26V | 48-50V | |
| Dimming Mode | The DIP switch in the "ON" position represents the PWM (Pulse - Width Modulation) mode, and in the "1" position represents the VR (Modulation of DC Voltage) mode. | ||
| Switching the output mode requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect. | |||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) @ full load |
>0.98@120VAC >0.97@277VAC |
>0.98@120VAC >0.97@277VAC |
|
| THD(Typ. ) @ full load | ≤15%@full load | ||
| Efficiency(Typ.) @ full load |
≥88%@120VAC ≥91.5%@277VAC |
≥87%@120VAC ≥90.5%@277VAC |
|
| AC Current (Max.) | ≤1.0A @120VAC ≤0.43A@277VAC | ||
| Inrush Current (Typ.) | 51A,208us@50%Ipeak 120VAC 118A,452us@50%Ipeak 277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup or Locking mode, recovers automatically after fault condition is removed | |
| Over Load | >120% Constant current (limited power) mode, recovers automatically after fault condition is removed | ||
| Over temperature | When the ambient temperature exceeds 55℃ ±5℃, the output is turned off | ||
| Environment | Working TEMP. | -40~+40℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | ||
| Ambient TEMP. | 40℃ | ||
| Case TEMP. | 75℃ | ||
| Safety & EMC | Safety standards | UL8750 (US) CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVAC;I/P-FG:1.5KVAC;O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | ||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | ||
| EMC Immunity | FCC/ICES do not request this test | ||
| EMC Emission | FCC Part15 Subpart B (US) | ||
| Others | Ta&Tc | Ta 40℃ Tc 75℃ | |
| Net Weight | 1.06Kg | ||
| Dimension | 188.0*95.4*42.7mm(L*W*H) | ||
| Packing | 415*265*270mm 20 pcs / CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance and load regulation . | |||
 |
 |
 |
 |

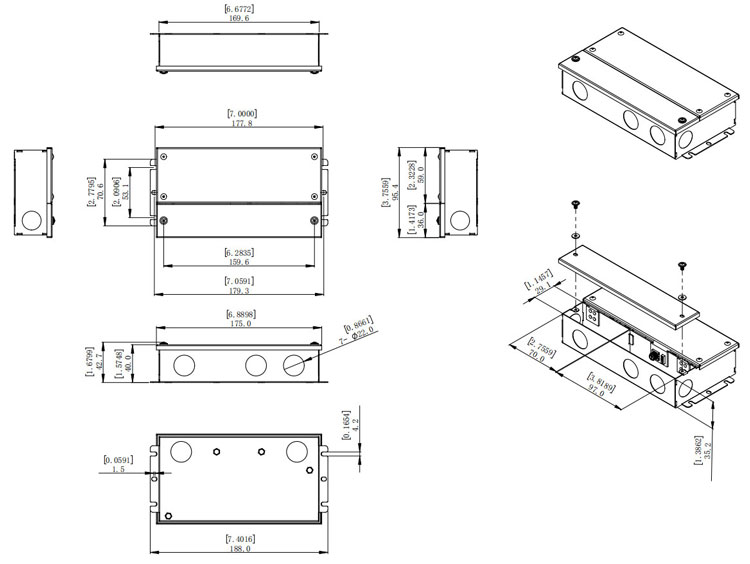

Mechanical Specification
1. Input UL1015 0.824mm²cable 3*18AWG, Black and White to be connected to AC (L) and (N), Green to be connected to (G).
2. Output UL1015 0.824mm² cable 2*18AWG, Red (+) to LED Positive side (+), Black (-) to LED Negative side (-).
3. Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

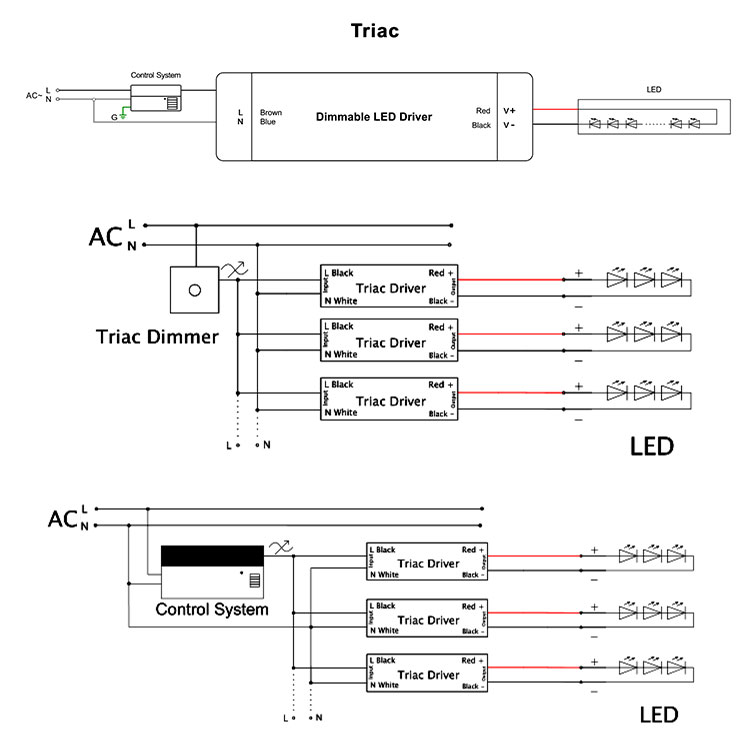

Dimming Operation
TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
2. phase /Triac dimmer or lighting system.
3. Working with forward phase, MLV and Reverse phase , ELV, TRIAC dimmers.
4. Min. loading is about 10%.
5. Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise. Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
