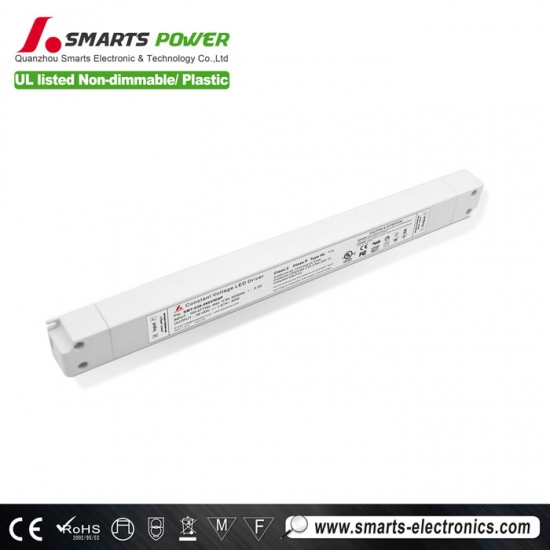

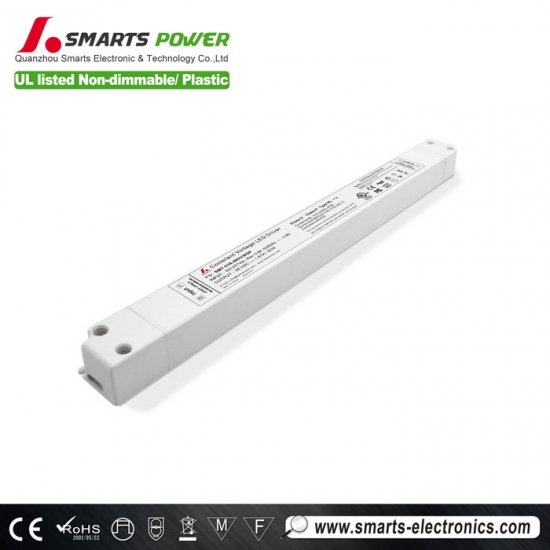

SMARTS SMT-036-060VWSP is 277v input voltage and 12v 24v 36v 48v output voltage for selection, ultra thin designed for different kinds of narrow LED applications. This small sized Class 2 LED Power Supply has built in short circuit, over load, and over voltage protection and adheres to UL safety standards.
Features
- Output constant voltage
-
Input voltage range 100-277VAC
-
UL/ cUL listed, Class 2, Class P, CE, ROHS approval
-
Built-in PFC function / Efficiency > 83% / PF> 0.99
- Protections:short circuit/over voltage/over heat
- IP20 design for indoor dry environment installations
- Cooling by free air convection
- Full protection aluminum housing, for dry, damp, wet location
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 7 years warranty
Drivers Specification
model
SMT-012-060VWSP
SMT-024-060VWSP
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
5.0Amp
2.5Amp
Rated power
60W
60W
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.99/110V ; PF≧0.98/230V ; PF≧0.97/277V
Full Load Efficiency（Typ.）
82%@120VAC ;84%@230VA ; 84%@ 277VAC
84%@120VAC;86%@230VAC; 86%@ 277VAC
AC Current（Typ.）
0.75A/100VAC / 0.2A/277VAC
Inrush Current（Typ.）
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
Leakage current
<0.5mA/110VAC; ﹤0.2mA/277VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P: 3.75KVAC
Isolation resistance
I/P-O/P：100M Ohms/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others
Weight
0.45Kg
Size
300*32*18.5mm (L*W*H)
packing
50PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufacturesmust be-qualify EMC Directive on the complete installation again.
Label
 |
 |
 |
 |
 |
|

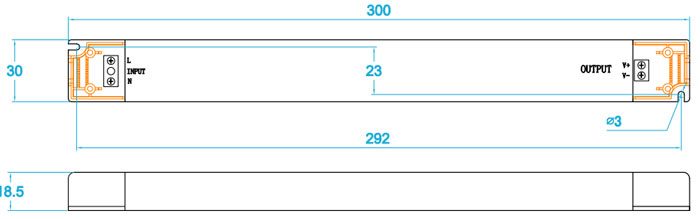

Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is（Possitive side +）,Black is（Negitive side -）

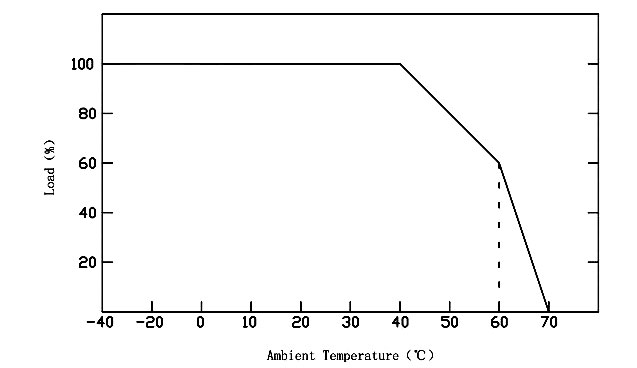

Derating Curve
